ZQPU (Milled Blue) Wheel Diameter × Wheel Width 50× 20（41.5） mm

Picture may differ from original product

1109 Medium Duty/Low Profile Business Machine Caster Series

ZQPU (Milled Blue) Wheel Diameter × Wheel Width 50× 20（41.5） mm

YJ-11090200801073

Wheel Diameter50mm　2＂

Load Capacity (Dynamic)300kgs　661lbs

Overall Height74mm　3＂

Wheel BearingWheels With Ball Bearings

Rigid Caster, Welded-on footplate with 75 x 45 mm (3" x 1-3/4") Bolt Hole Spacing
Zine-Plated, Mounting Type - Top Plate
Cast Iron Wheel Center, High Quality Polyurethane tread
Blue color, Bearing—Ball Bearing.
Wheel Tread: high quality polyurethane
Wheel Center: cast iron core

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet (Metric) Product Data Sheet (Imperial) 3D Drawing Request

3D drawings are for members only. Please log in to download.

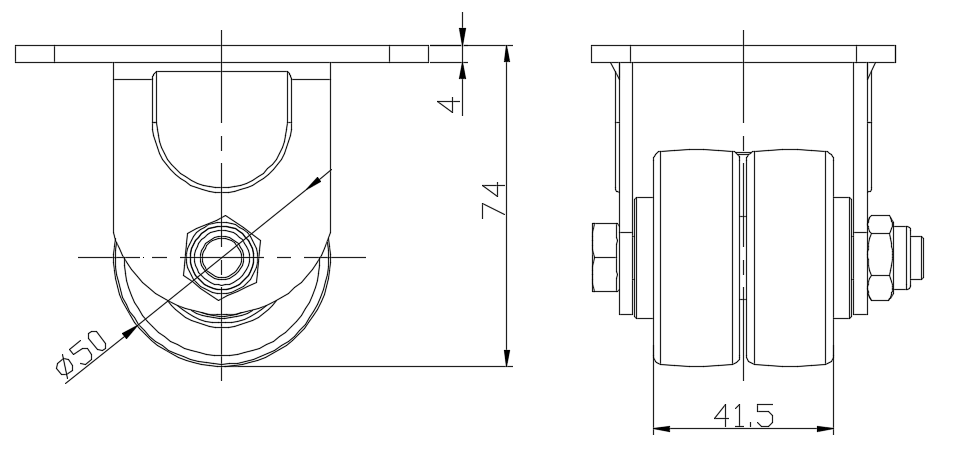

Product Data Sheet

Wheel Diameter: 50mm2＂
Wheel Width: 41.5mm1-11/16
Wheel Bearing: Wheels With Ball Bearings

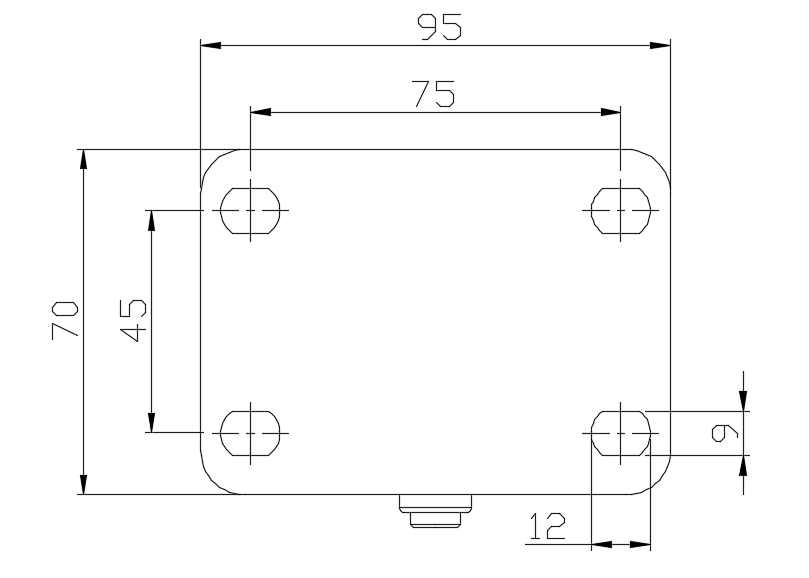

Plate Size: 95 x 70mm3-13/16＂ x 2-13/16＂
Bolt Hole Spacing: 75 x 45mm3＂x 1-13/16＂
Plate Hole: 12 x 9mm1/2＂ x 23/64＂
Overall Height: 74mm3＂
Hardness Of Tread: 87±5° Shore A
Load Capacity (Dynamic): 300kgs661lbs
Load Capacity (Static): 450kgs992lbs
Temperature: -20°C to +70°C-4°F to +158°F
Fork Type: Rigid Caster
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 0.63kgs1.4lbs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.

Performance

Rolling SmoothnessMax. 5 pointsScore: 5

Quiet OperationMax. 5 pointsScore: 5

Floor Surface PreservationMax. 5 pointsScore: 5
