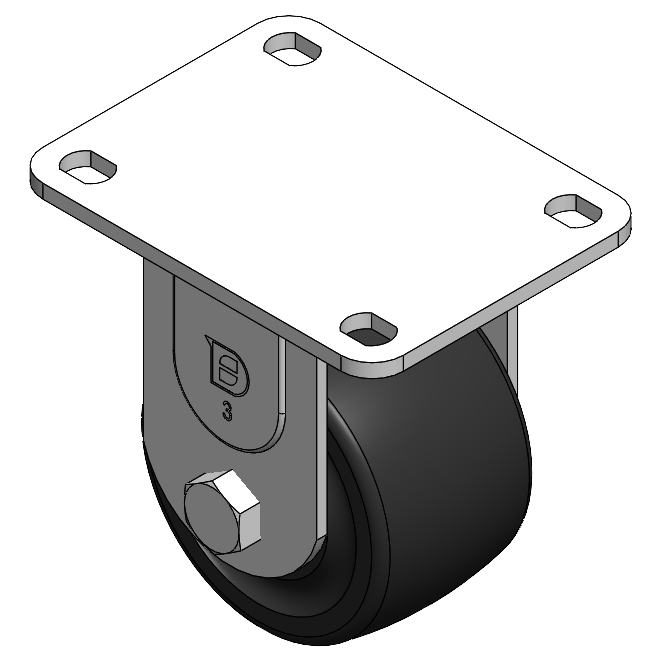

King Kong Wheel (black) Wheel Diameter × Wheel Width 75×45 mm

Picture may differ from original product

1109 Medium Duty/Low Profile Business Machine Caster Series

King Kong Wheel (black) Wheel Diameter × Wheel Width 75×45 mm

YJ-11090300711013

Wheel Diameter75mm　3＂

Load Capacity (Dynamic)500kgs　1102lbs

Overall Height102mm　4-1/16＂

Wheel BearingWheels With Ball Bearings

Rigid castor, Welded footplate - high-grade hole
Extended control lever surface, Mounting Type - Top Plate
Reinforced Polypropylene and Wheel Tread
Black, Bearing - Ball Bearing.
Wheel Tread: Thermoplastic (POK)
Wheel Center: Thermoplastic (POK)

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet (Metric) Product Data Sheet (Imperial) 3D Drawing Request

3D drawings are for members only. Please log in to download.

Product Data Sheet

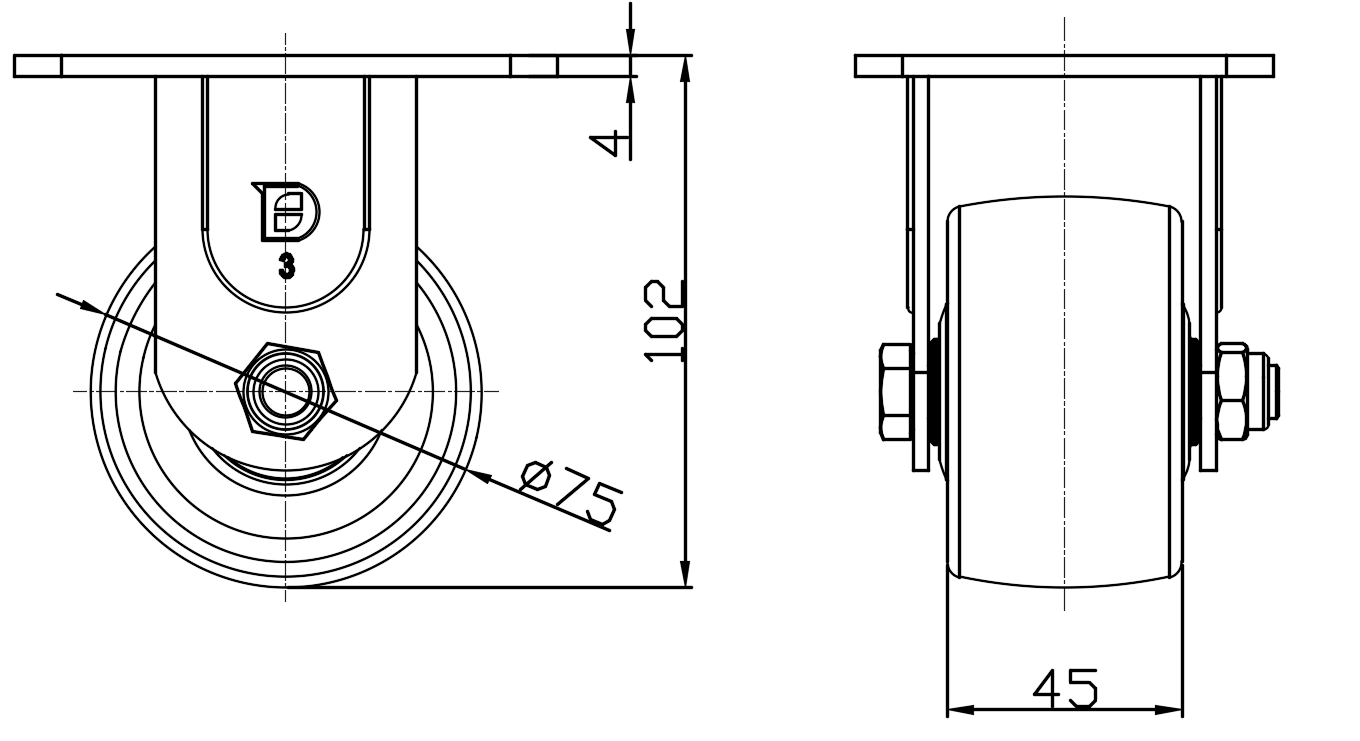

Wheel Diameter: 75mm3＂
Wheel Width: 45mm1-13/16＂
Wheel Bearing: Wheels With Ball Bearings

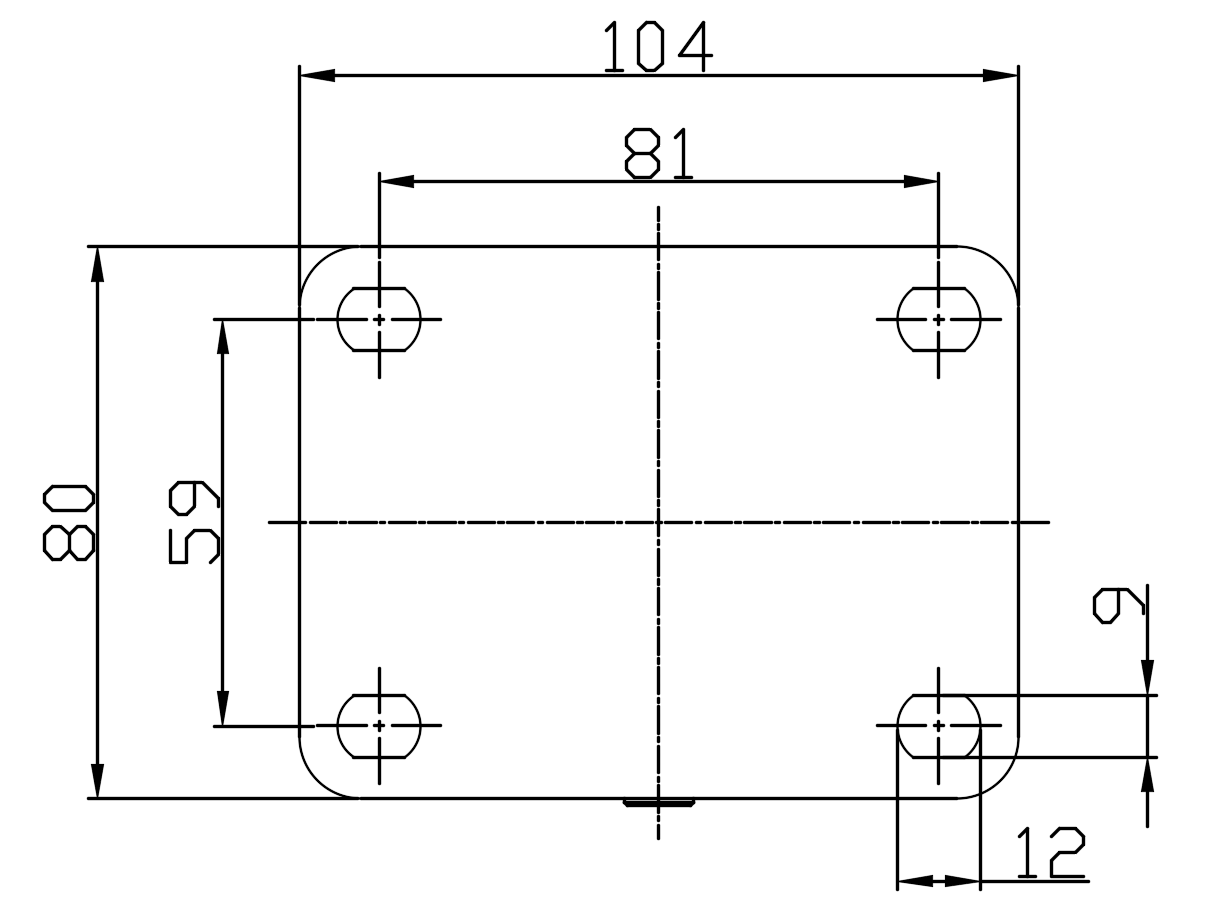

Plate Size: 104 x 80mm4-1/8＂ x 3-3/16＂
Bolt Hole Spacing: 81 x 59mm2-1/4＂ x 2-3/8＂
Plate Hole: 12 x 9mm1/2＂ x 23/64＂
Overall Height: 102mm4-1/16＂
Hardness Of Tread: 75±5° Shore D
Load Capacity (Dynamic): 500kgs1102lbs
Load Capacity (Static): 750kgs1653lbs
Temperature: -20°C to +80°C-4°F to +176°F
Fork Type: Rigid Caster
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 0.73kgs1.6lbs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.

Performance

Rolling SmoothnessMax. 5 pointsScore: 5

Quiet OperationMax. 5 pointsScore: 2

Floor Surface PreservationMax. 5 pointsScore: 2
