    Product Data Sheet
1110-3 Series — Medi Series
　　TPR wheel (white dark gray) Wheel Diameter x Wheel Width 75 x 12mm
　　EAN
　　　　　 KS-11100302265023
　　　　　 　　　

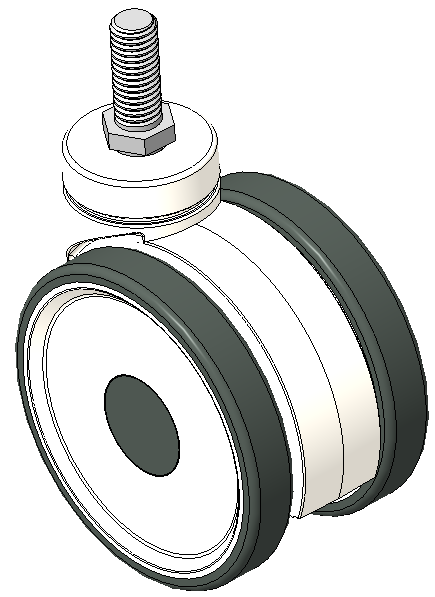

Swivel double ball Caster, M10x25 thread White Fork with High-quality Impact Resistance Polypropylene reinforcement Rustproof, Corrosion resistant, Attractive appearance, Economical, and Reinforced High-quality Impact Resistance Polypropylene core,High-Quality Thermoplastic Rubber (TPR) tread Dark gray, Anti-thread wheel cover
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

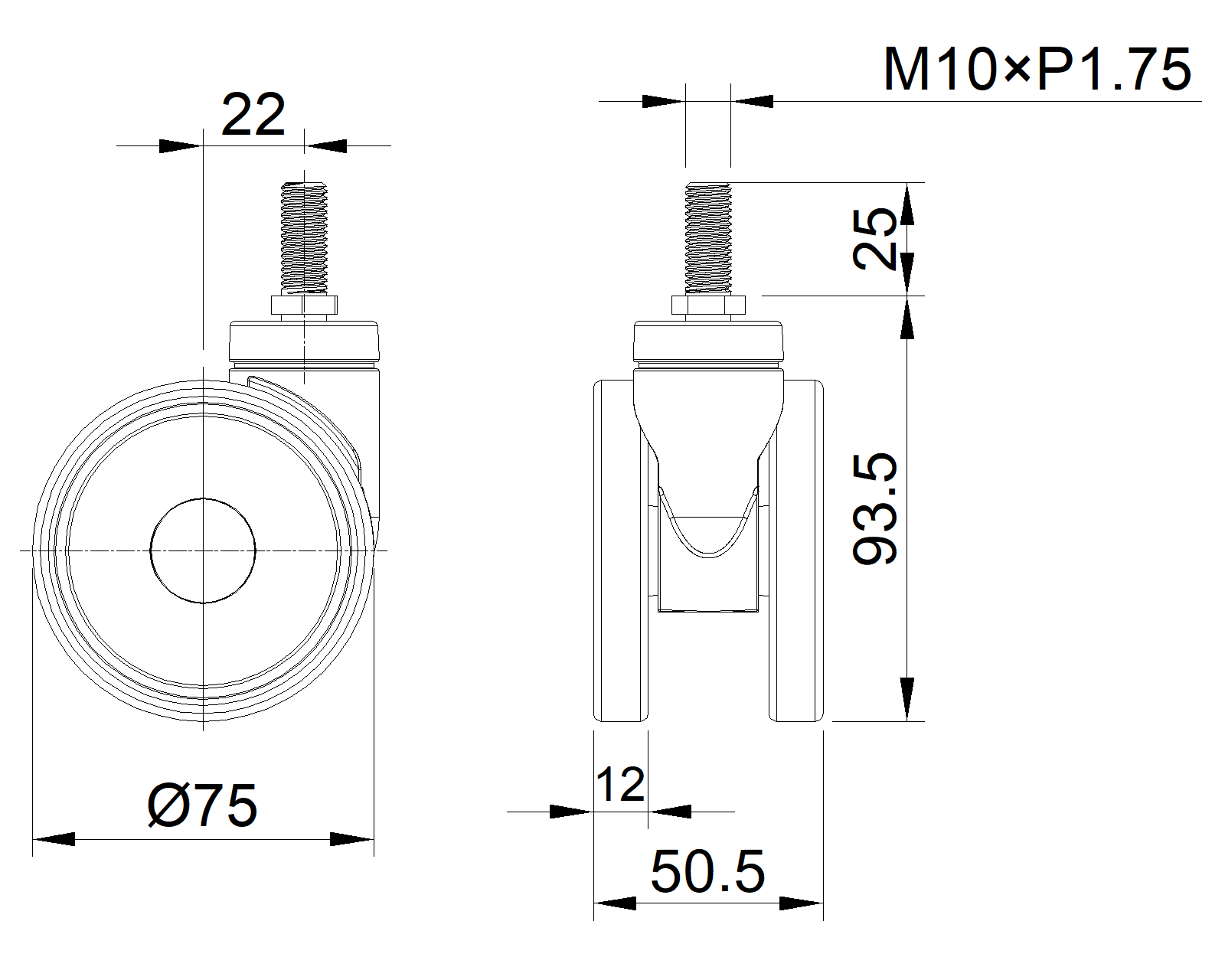

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　

　　Wheel Width 50.5mm　
　　Wheel Bearing Wheel With Plain Bearing
　　Threaded Stem M10x25
　　Threaded Length 25mm
　　Offset 22mm　
　　Swivel Interference 132mm　
　　Overall Height 119mm　

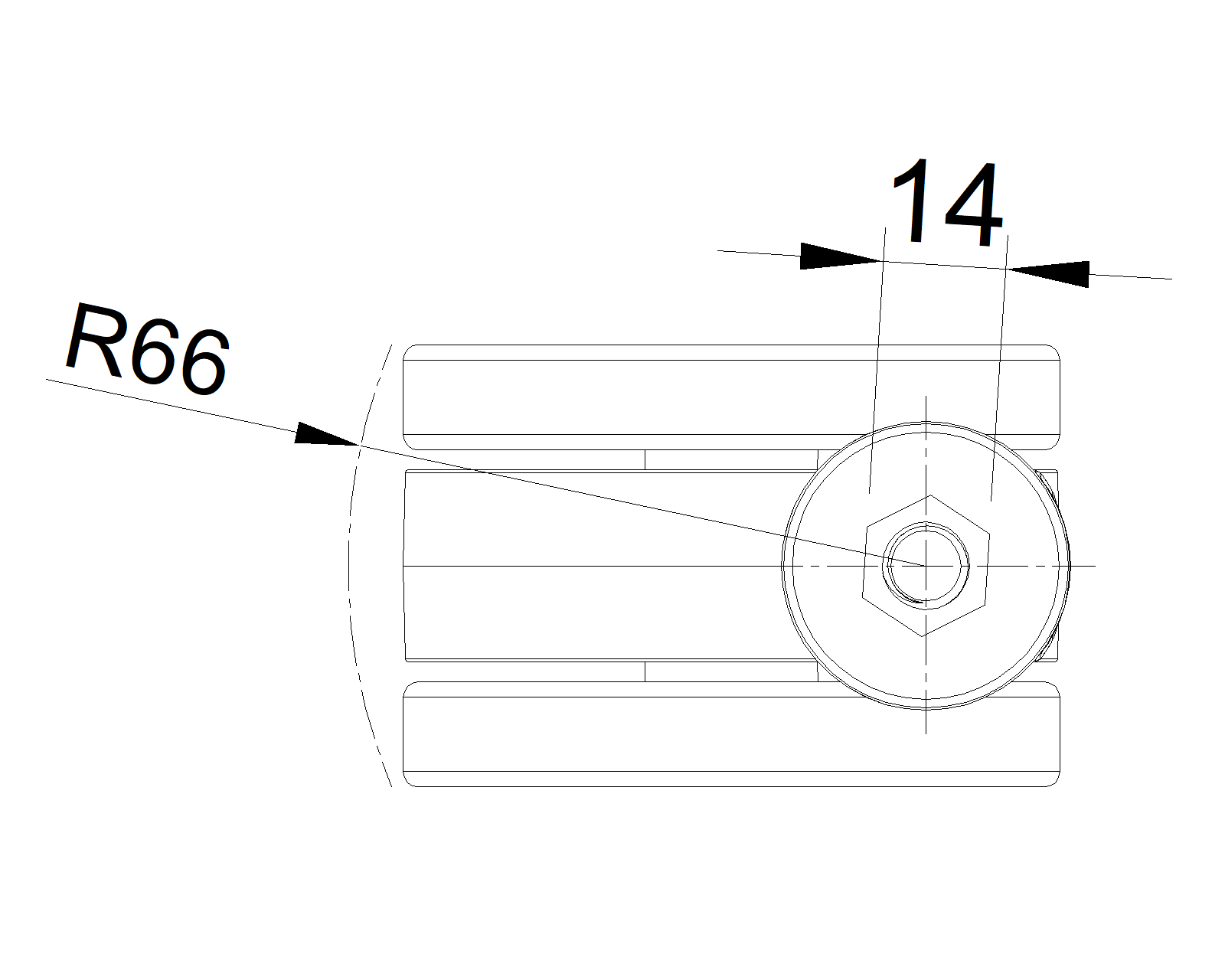

　　Swivel Radius 66mm　
　　Hardness Of Tread 82±5° Shore A　
　　Load Capacity (Dynamic) 30kgs　


　　Rolling Resistance　　　     ● ● ● ● ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 45kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.17kgs　
　　Standard ISO22883
　　
　　
