    Product Data Sheet

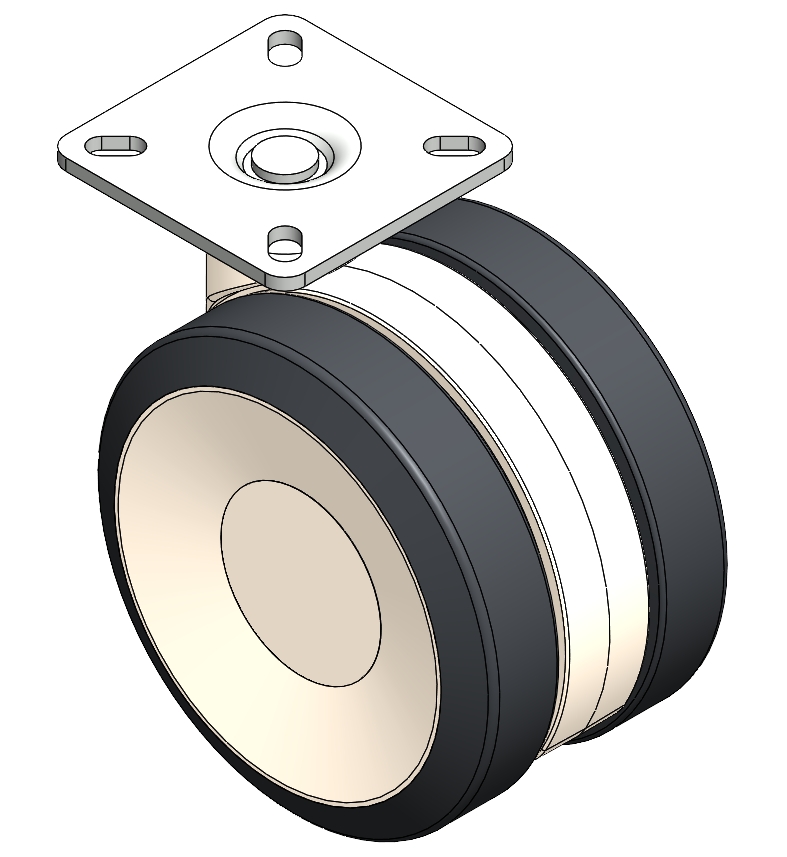

1110-YOYO YOYO Series-Light Duty Twin Wheel Caster Series　(All Plastic)
　　Yoyo Wheel (White dark gray) Wheel Diameter x Wheel Width 100 x 22mm
　　EAN
　　　　　 　　　
　　YJ-11100400242023 　　　
Swivel Caster with injection-molded Fork Riveted to Forkplate. reinforced Polypropylene Fork, Top Platetype (3T) Mounting Type system Polypropylene (PP) Wheel Center, polyvinyl chloride (PVC) tread White-dark gray, Bearing—Ball Bearing.
　　Wheel Tread: PVC polyvinyl chloride
　　Wheel Center: PP polypropylene

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 68mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 60 x 60mm　
　　Bolt Hole Spacing 42.5 x 42.5mm　
　　Plate Hole 11 x 6mm　
　　Offset 32mm　
　　Swivel Interference 176mm　
　　Overall Height 115mm　
　　Swivel Radius 88mm　
　　Hardness Of Tread 95±5° Shore A　
　　Load Capacity (Dynamic) 100kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 150kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.54kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2026 DershengInternational www.dersheng.com
Related　　Products　　

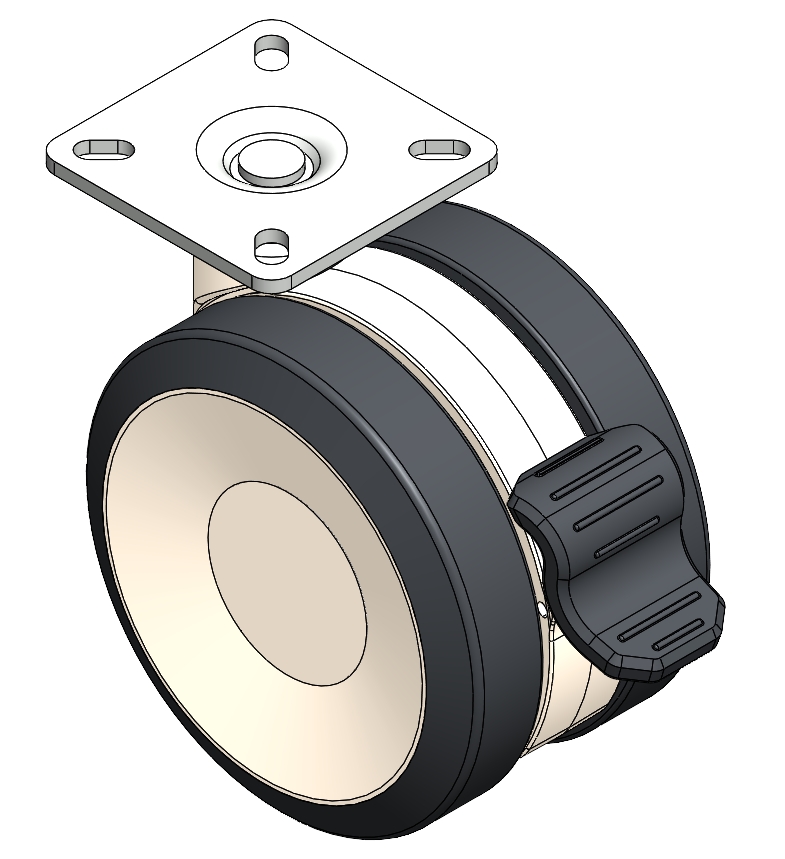

1110-YOYO YOYO Series-Light Duty Twin Wheel Caster Series　(All Plastic)
