    Product Data Sheet
1110-YOYO YOYO Series-Light Duty Twin Wheel Caster Series　(All Plastic)
　　Yoyo Wheel (White dark gray) Wheel Diameter x Wheel Width 100 x 22mm
　　EAN
　　　　　 　　　
　　YJ-11100400244043 　　　
Castors with single brake Locking system, Fork Riveted injection moulded Fork. Frame made of reinforced High-quality Impact Resistance Polypropylene, Top Plate (3T) Mounting Type Wheel core made of High-quality Impact Resistance Polypropylene (PP), Wheel Tread made of polyvinyl chloride (PVC) White dark grey, Bearing – Ball Bearing.
　　Wheel Tread: PVC polyvinyl chloride
　　Wheel Center: PP polypropylene

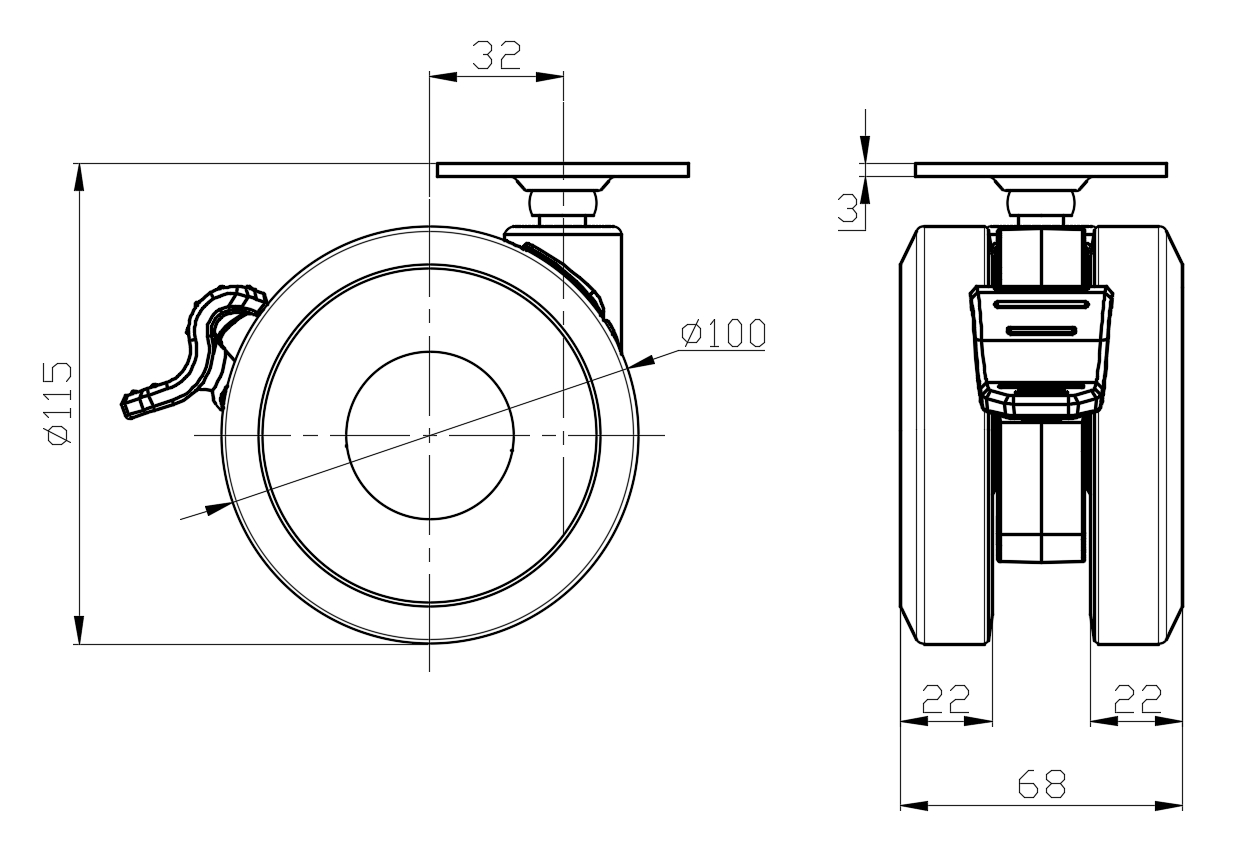

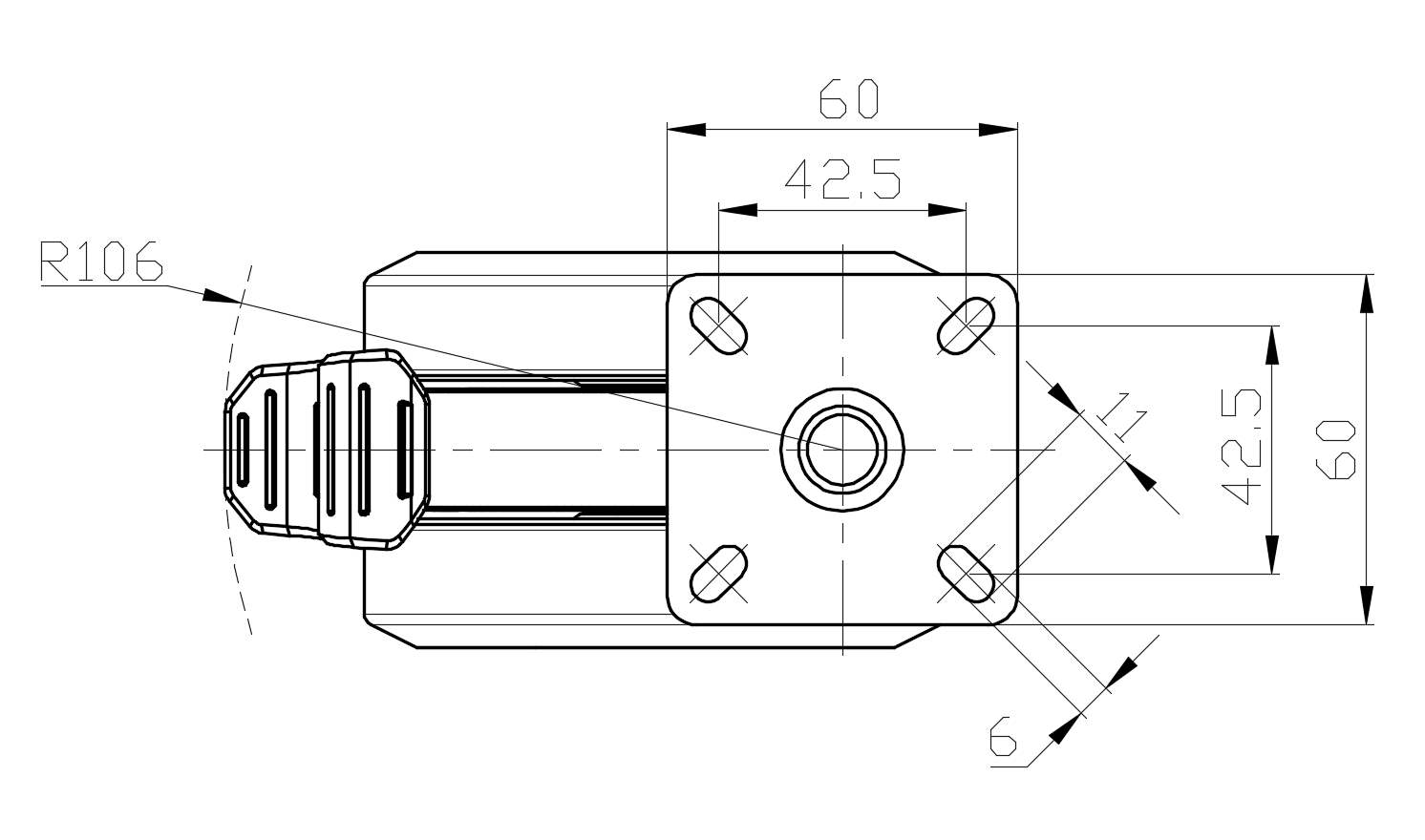

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 68mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 60 x 60mm　
　　Bolt Hole Spacing 42.5 x 42.5mm　
　　Plate Hole 11 x 6mm　
　　Offset 32mm　
　　Swivel Interference 212mm　
　　Overall Height 115mm　
　　Swivel Radius 106mm　
　　Hardness Of Tread 95±5° Shore A　
　　Load Capacity (Dynamic) 100kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 150kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster With Wheel Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.57kgs　
　　Standard ISO22883
　　
　　
