Picture may differ from original product

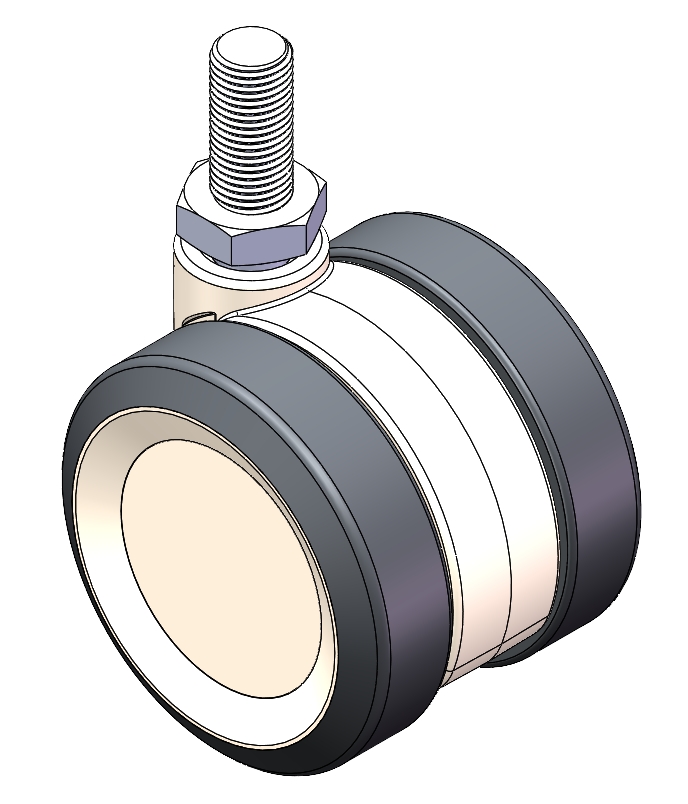

1110-YOYO YOYO Series-Light Duty Twin Wheel Caster Series (All Plastic)
Yoyo Wheel (light dark gray) Wheel Diameter x Wheel Width 65 x 18mm
YJ-11100250245153
Wheel Diameter65mm 2-9/16
Load Capacity (Dynamic)45kgs 99lbs
Overall Height75mm 3＂
Wheel BearingWheel With Plain Bearing
- Swivel Caster, thread-Riveted injection-molded Fork—M12-P1.75
- reinforced Polypropylene Fork, Mounting Type - Threaded Stem
- Polypropylene (PP) core, polyvinyl chloride (PVC) tread
- White-dark gray, wheel—Plain Bearing.
- Wheel Tread: PVC polyvinyl chloride
- Wheel Center: PP polypropylene
Product descriptions are for reference only. The actual product shall prevail.
3D drawings are for members only. Please log in to download.

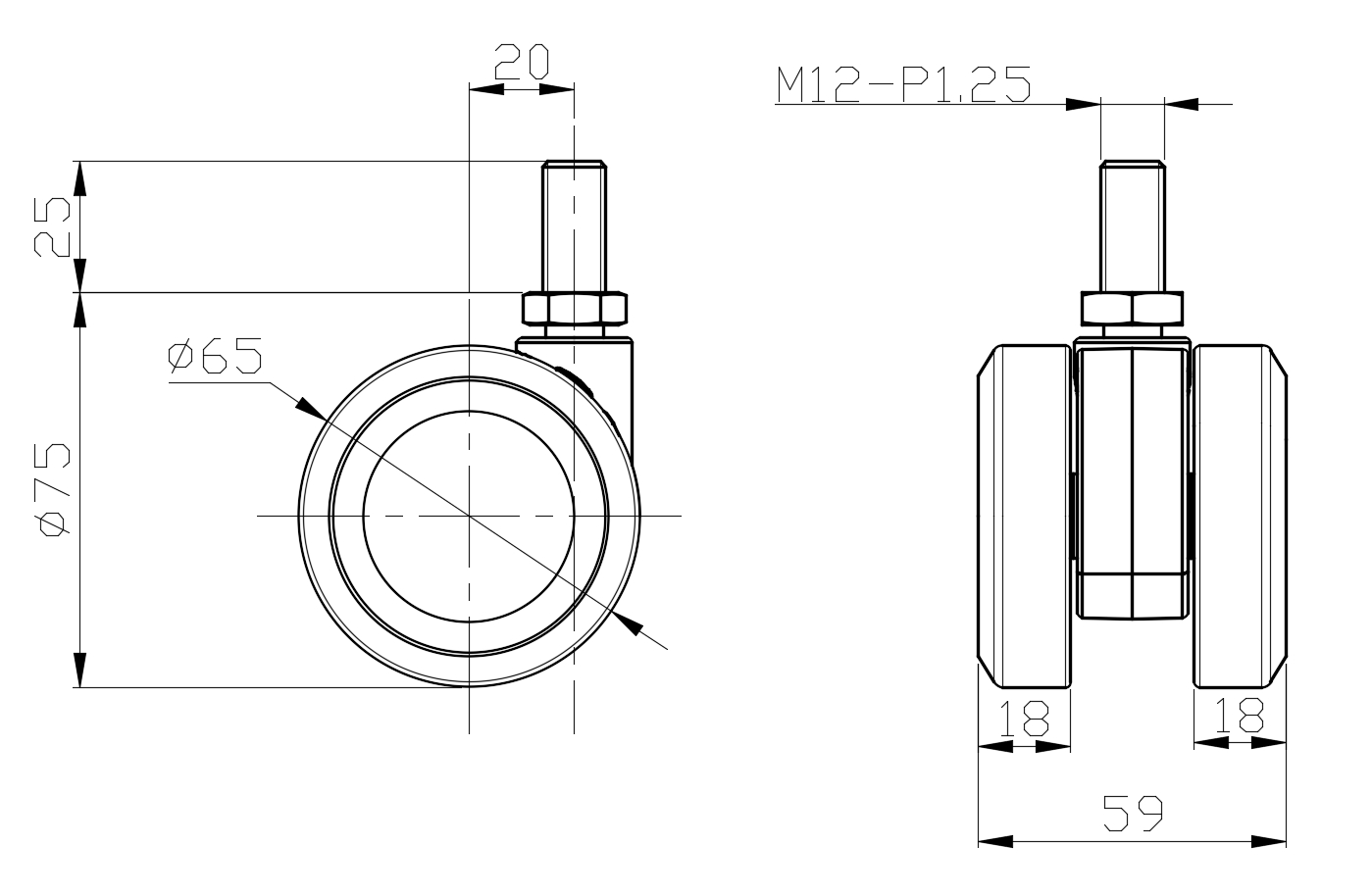

Product Data Sheet
- Wheel Diameter
- 65mm2-9/16
- Wheel Width
- 59mm2-3/8
- Wheel Bearing
- Wheel With Plain Bearing
- Threaded Stem
- M12-P1.75M12-P1.75
- Threaded Length
- 25mm1＂
- Offset
- 20mm13/16＂
- Swivel Interference
- 118mm4-11/16＂
- Overall Height
- 75mm3＂

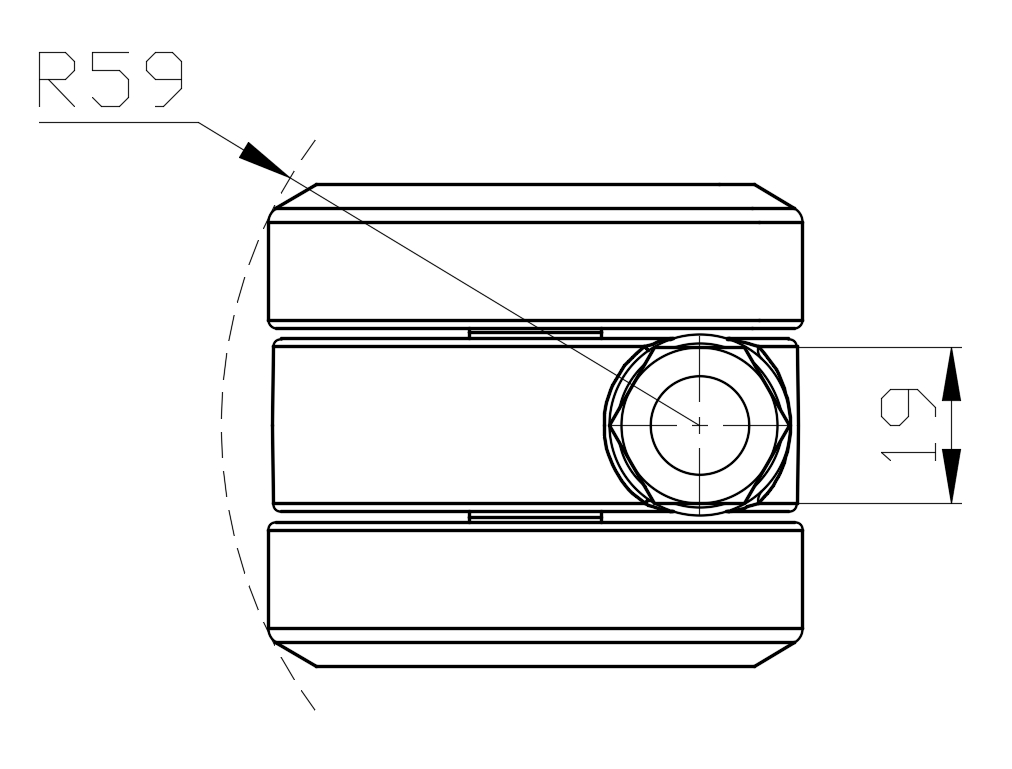

- Swivel Radius
- 59mm2-3/8＂
- Hardness Of Tread
- 95±5° Shore A
- Load Capacity (Dynamic)
- 45kgs99lbs
- Load Capacity (Static)
- 67.5kgs149lbs
- Temperature
- -20°C to +60°C-4°F to +140°F
- Fork Type
- Swivel Caster
- Stainless
- N/A
- Electrical Conductivity
- N/A
- Anti-Static
- N/A
- Weight
- 0.20kgs0.4lbs
- Standard
- ISO22883
* For any deviation between metric and imperial spec, please refer to the metric spec.
Performance
Rolling SmoothnessMax. 5 pointsScore: 5
