    Product Data Sheet
1112 2" Wide General Purposes Caster Series
　　Phenolic (black) Wheel Diameter × Wheel Width 125 x 50mm
　　EAN
　　TW-4111205002004 　　　
　　　　　 　　　

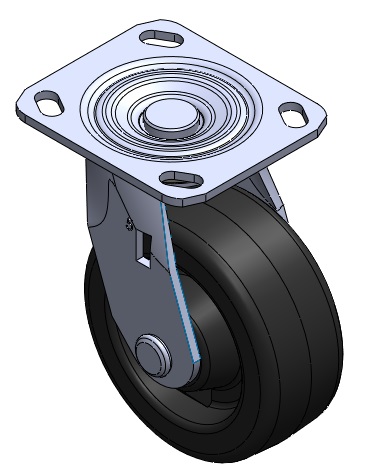

Swivel Caster with Welded Caster Fork Zine-Plated, Mounting Type - Top Plate Phenolic Wheel Black, Bearing—Annual Ball Bearing.
　　Tread: Compressed synthetic resin impregnated with fabric
　　Wheel Center: Compressed synthetic resin impregnated with fabric

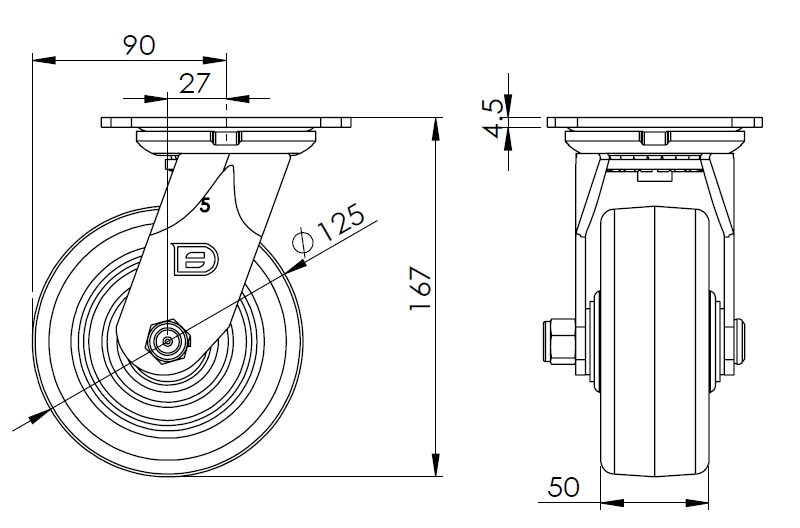

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 50mm　
　　Wheel Bearing Wheel With Annual Ball Bearing

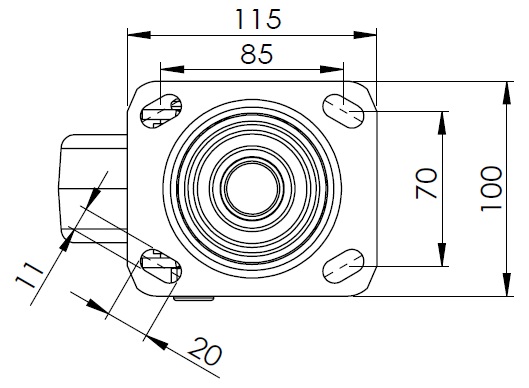

　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 27mm　
　　Swivel Interference 180mm　
　　Overall Height 167mm　
　　Swivel Radius 90mm　
　　Hardness Of Tread 80±5° Shore D　
　　Load Capacity (Dynamic) 400kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ○ ○ ○

　　Floor Surface Preservation  ● ● ○ ○ ○
　　Load Capacity (Static) 600kgs　
　　Temperature -20°C to +150°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.0kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1112 2" Wide General Purposes Caster Series
Phenolic (black) Wheel Diameter × Wheel Width 125 x 50mm
TW-4111205001003
125 mm 400 Kgs 167 mm

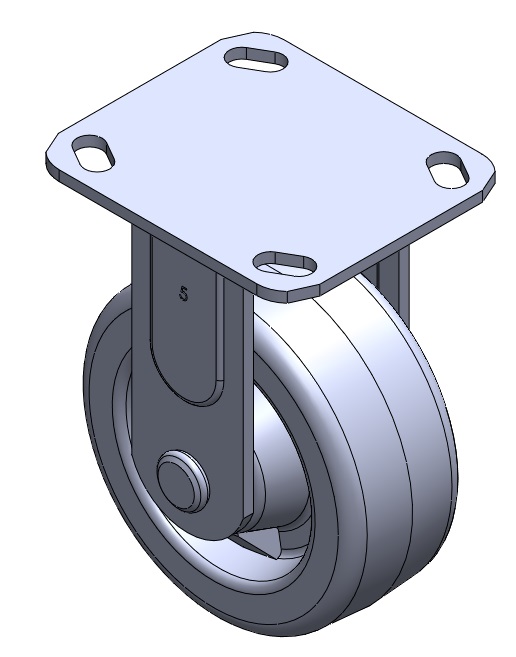

Rigid castor, Welded Caster Fork Surface Zine-Plated, Top Plate Mounting Type Compressed synthetic resin Wheel Center and Wheel Tread with impregnated fabric Black, Bearing - Annual Ball Bearing.
1112 2" Wide General Purposes Caster Series
Phenolic (black) Wheel Diameter × Wheel Width 125 x 50mm
TW-4111205004008
125 mm 400 Kgs 167 mm

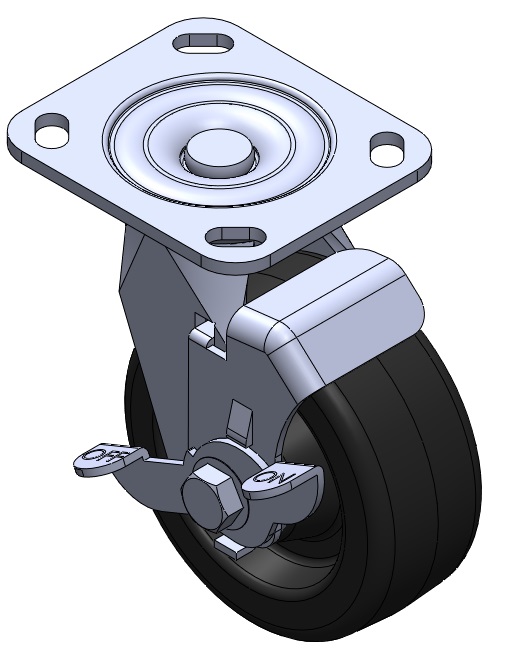

Casters with Side Brakes and With locking system. Welded Caster Fork. Zine-Plated, Mounting Type - Top Plate. Phenolic Wheels. Black. Bearings—Annual Ball Bearing.
