    Product Data Sheet
1112 2" Wide General Purposes Caster Series
　　Phenolic (black) Wheel Diameter × Wheel Width 125 x 50mm
　　EAN
　　TW-4111205004008 　　　
　　　　　 　　　
Casters with Side Brakes and With locking system. Welded Caster Fork. Zine-Plated, Mounting Type - Top Plate. Phenolic Wheels. Black. Bearings—Annual Ball Bearing.
　　Tread: Compressed synthetic resin impregnated with fabric
　　Wheel Center: Compressed synthetic resin impregnated with fabric

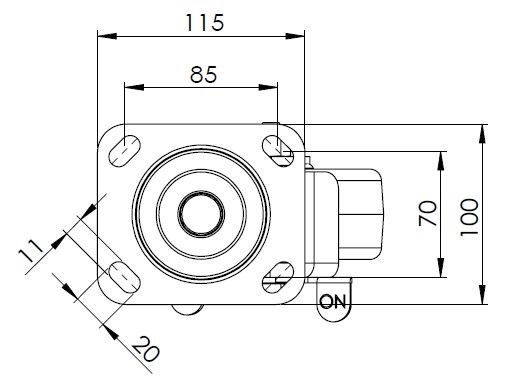

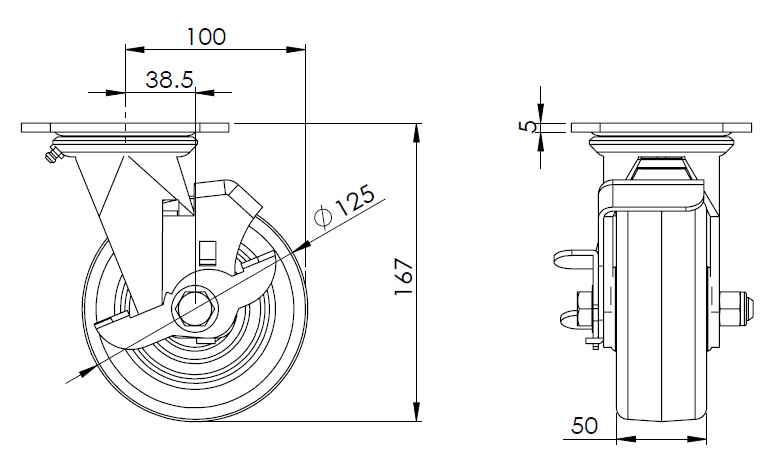

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 50mm　
　　Wheel Bearing Wheel With Annual Ball Bearing
　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 38.5mm　
　　Swivel Interference 200mm　
　　Overall Height 167mm　
　　Swivel Radius 100mm　
　　Hardness Of Tread 80±5° Shore D　
　　Load Capacity (Dynamic) 400kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ○ ○ ○

　　Floor Surface Preservation  ● ● ○ ○ ○
　　Load Capacity (Static) 600kgs　
　　Temperature -20°C to +150°C　
　　Fork Type Swivel Caster With Side Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.20kgs　
　　Standard ISO22883
　　
　　
