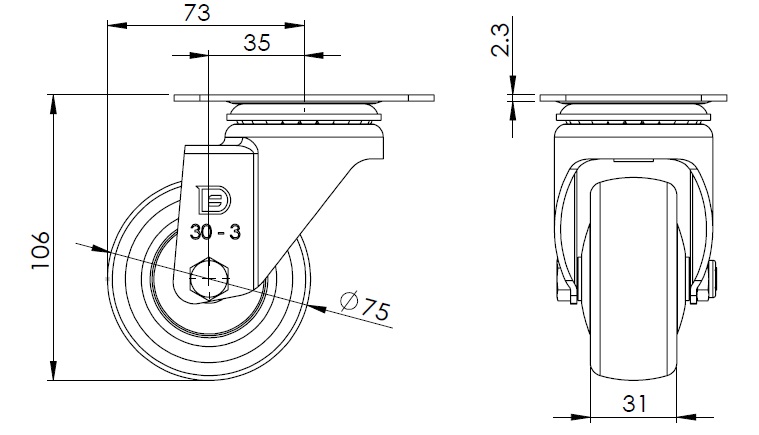

PPR (red) Wheel Diameter × Wheel Width 75 x 31mm

TW-4113003002005

Wheel Diameter75mm　

Load Capacity (Dynamic)70kgs　

Overall Height106mm　

Wheel BearingWheels With Ball Bearings

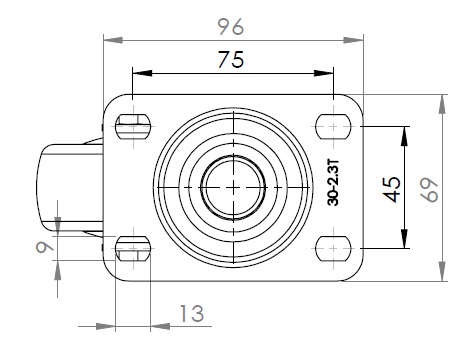

Swivel Caster with Riveted Fork and Stamping Fork—75 x 45 mm (3" x 1-3/4") Bolt Hole Spacing
Zine-Plated, Mounting Type - Top Plate
High-quality Impact Resistance Polypropylene core with High-Quality Thermoplastic Rubber (TPR) tread
Red, Bearing—Ball Bearing.
Wheel tread: Thermoplastic rubber elastomer (TPR)
Wheel Center: Made of high-quality impact-resistant polypropylene

Product descriptions are for reference only. The actual product shall prevail.

3D drawings are for members only. Please log in to download.

Product Data Sheet

* For any deviation between metric and imperial spec, please refer to the metric spec.

Rolling Resistance

Operating Noise　

Floor Surface Preservation
