    Product Data Sheet
1130 Medium Duty General Purposes Caster Series
　　PPR (red) Wheel Diameter × Wheel Width 75 x 31mm
　　EAN
　　TW-4113003004005 　　　
　　　　　 　　　
Casters with Total Brakes and a With locking system. Top Plate Riveted and Stamping – premium. Hole Zine-Plated, Mounting Type - Top Plate. High-Quality Impact-Resistant Polypropylene Wheel Center, High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread. Red color, Bearing – Ball Bearings.
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

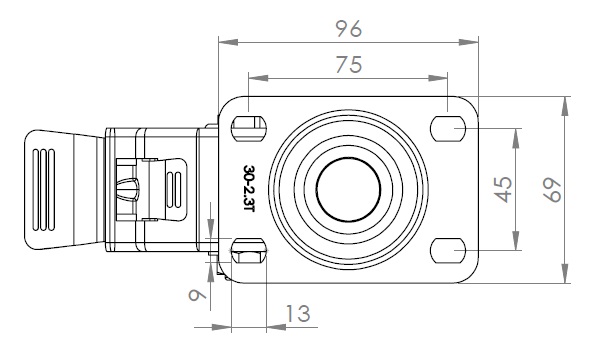

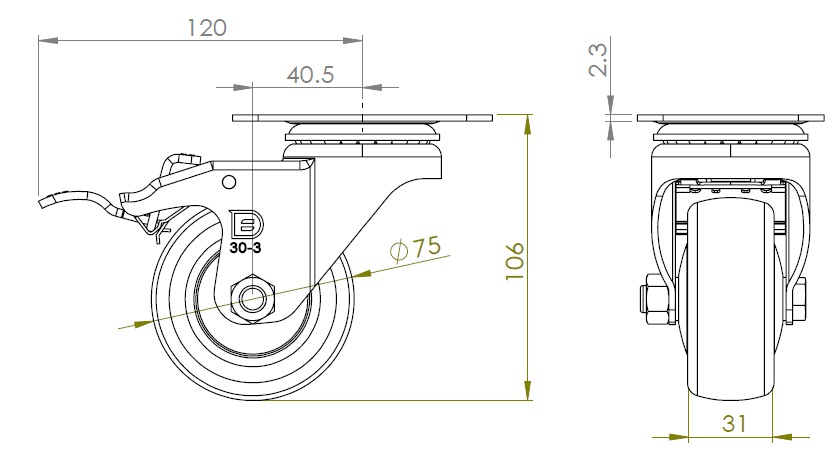

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 96 x 69mm　
　　Bolt Hole Spacing 75X45mm　
　　Plate Hole 13 x 9mm　
　　Offset 40.5mm　
　　Swivel Interference 240mm　
　　Overall Height 106mm　
　　Swivel Radius 120mm　
　　Hardness Of Tread 82±5° Shore A　
　　Load Capacity (Dynamic) 70kgs　


　　Rolling Resistance　　　     ● ● ● ● ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 105kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster With Total Brake　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.75kgs　
　　Standard ISO22883
　　
　　
