    Product Data Sheet
1155 STAT Series Caster Series (All Plastic)
　　Resolute (blue gray) Wheel Diameter × Wheel Width 100 x 31mm
　　EAN
　　　　　 KS-11550400455013
　　　　　 　　　
Resolute Wheels Threaded lock with blue-gray polyamide bracket—M12x25
Zine-Plated thread finish, Mounting Type - Threaded Stem mechanism
High-Quality Impact-Resistant Polypropylene Wheel Center, High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread
Dark gray, Bearing—Ball Bearings.
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

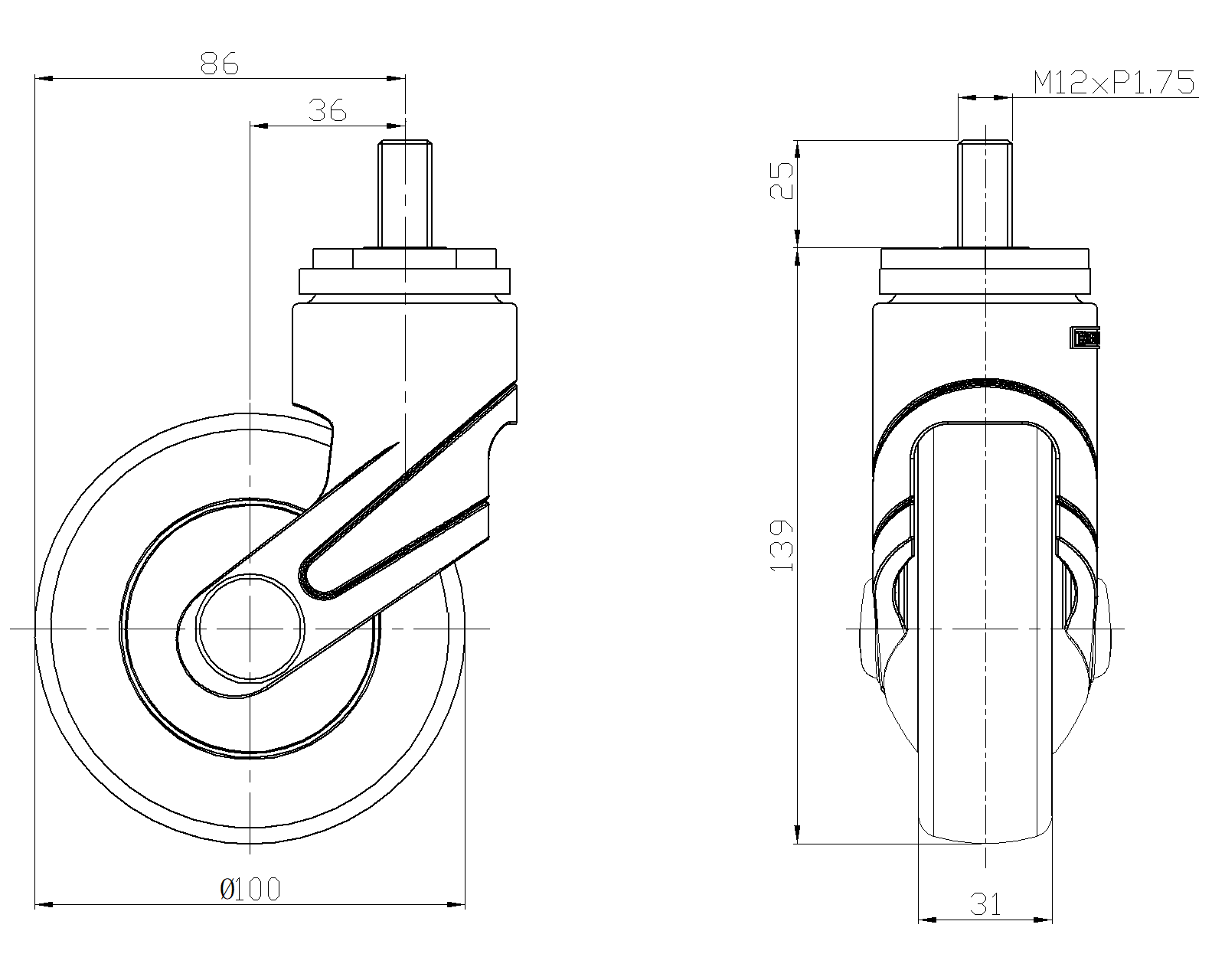

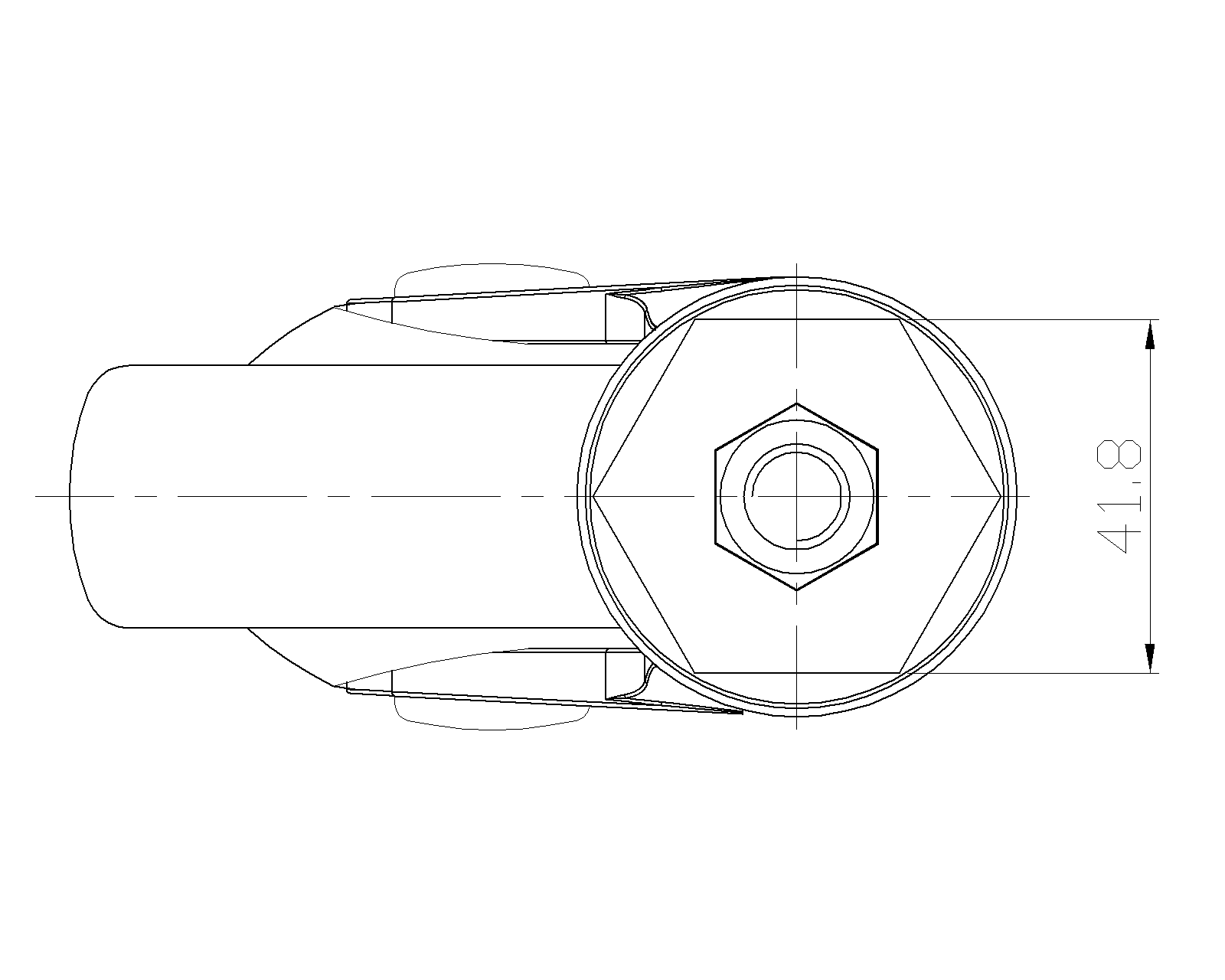

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Threaded Stem M12
　　Threaded Length 25mm
　　Offset 36mm　
　　Swivel Interference 172mm　
　　Overall Height 139mm　
　　Swivel Radius 86mm　
　　Hardness Of Tread 72±5° Shore A　
　　Load Capacity (Dynamic) 90kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 135kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.49kgs　
　　Standard ISO22881
　　
　　
