Resolute (blue gray) Wheel Diameter × Wheel Width 100 x 31mm

Picture may differ from original product

1155 STAT Series Caster Series (All Plastic)

Resolute (blue gray) Wheel Diameter × Wheel Width 100 x 31mm

KS-11550400456313

Wheel Diameter100mm　

Load Capacity (Dynamic)90kgs　

Overall Height139mm　

Wheel BearingWheels With Ball Bearings

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet 3D Drawing Request

3D drawings are for members only. Please log in to download.

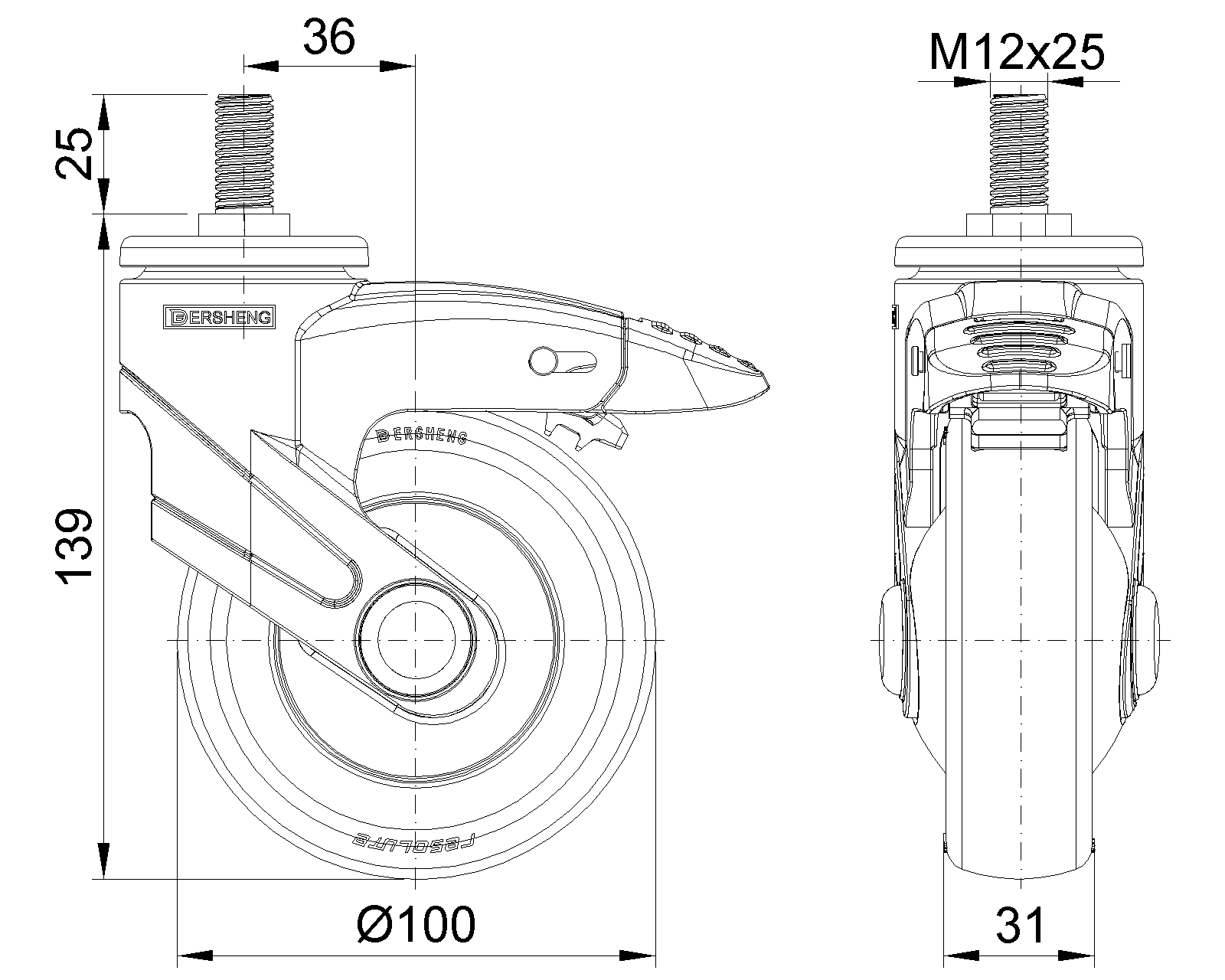

Product Data Sheet

Wheel Diameter: 100mm
Wheel Width: 31mm
Wheel Bearing: Wheels With Ball Bearings
Threaded Stem: M12
Threaded Length: 25mm
Offset: 36mm
Swivel Interference: 226mm
Overall Height: 139mm

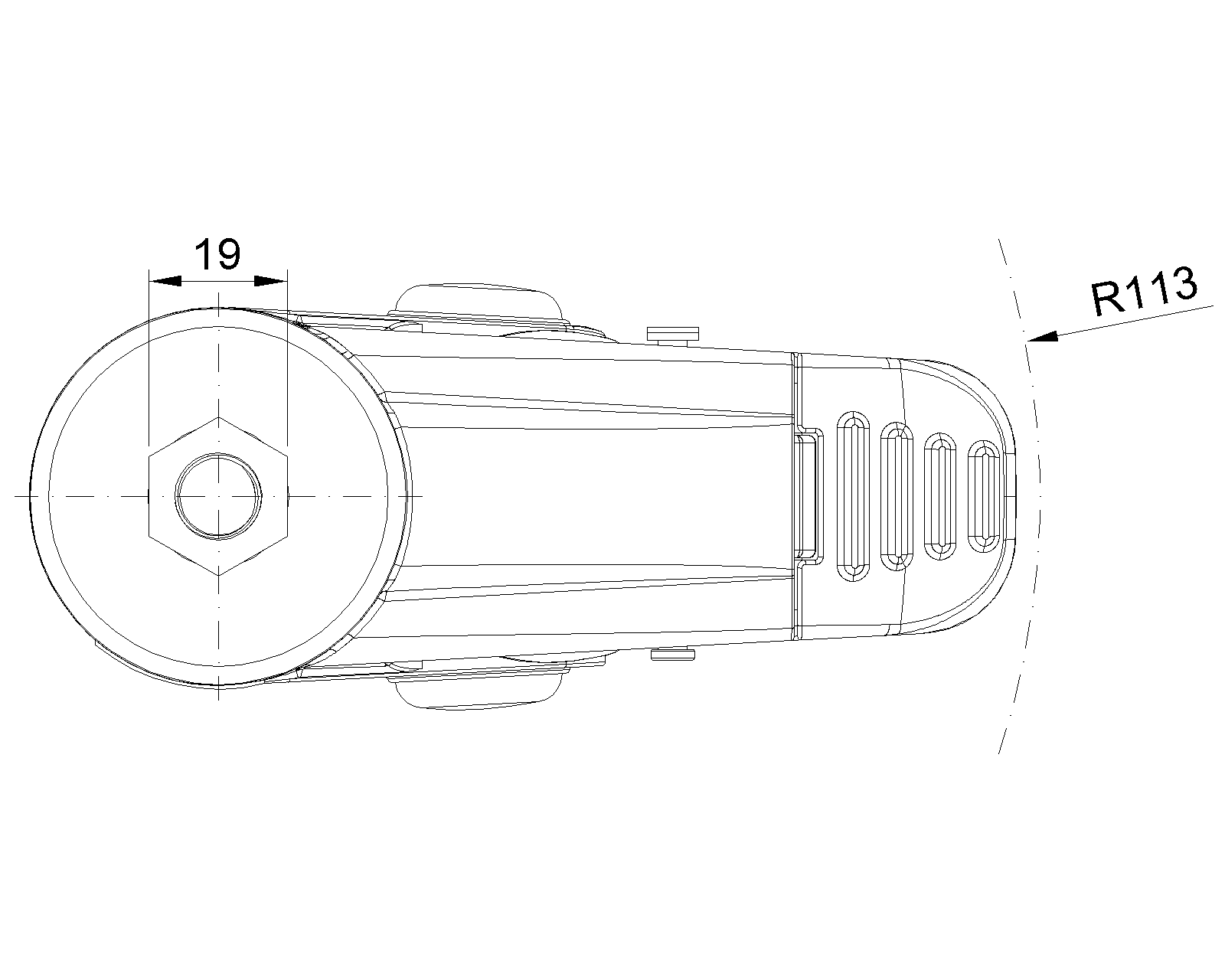

Swivel Radius: 113mm
Hardness Of Tread: 72±5° Shore A
Load Capacity (Dynamic): 90kgs
Load Capacity (Static): 135kgs
Temperature: -20°C to +60°C
Fork Type: Swivel Caster With Total Brake
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 0.57kgs
Standard: ISO22881

* For any deviation between metric and imperial spec, please refer to the metric spec.

Performance

Rolling Resistance

Operating Noise　

Floor Surface Preservation
