QPU (brown round) Wheel Diameter × Wheel Width 62.5 x 45mm

Picture may differ from original product

1168 Levelling Caster Series

QPU (brown round) Wheel Diameter × Wheel Width 62.5 x 45mm

YJ-11680250532063

Wheel Diameter62.5mm　

Load Capacity (Dynamic)200kgs　

Overall Height102mm　

Wheel BearingWheels With Ball Bearings

Swivel Caster with Riveted, Stamping Fork and European standard holes.
Zine-Plated, Top Plate (4T) Mounting Type system with Height Adjustable Stand.
Cast Iron Wheel Center with High Quality Polyurethane tread.
Brown color, Bearing with Ball Bearing.
Wheel Tread: high quality polyurethane
Wheel Center: cast iron core

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet 3D Drawing Request

3D drawings are for members only. Please log in to download.

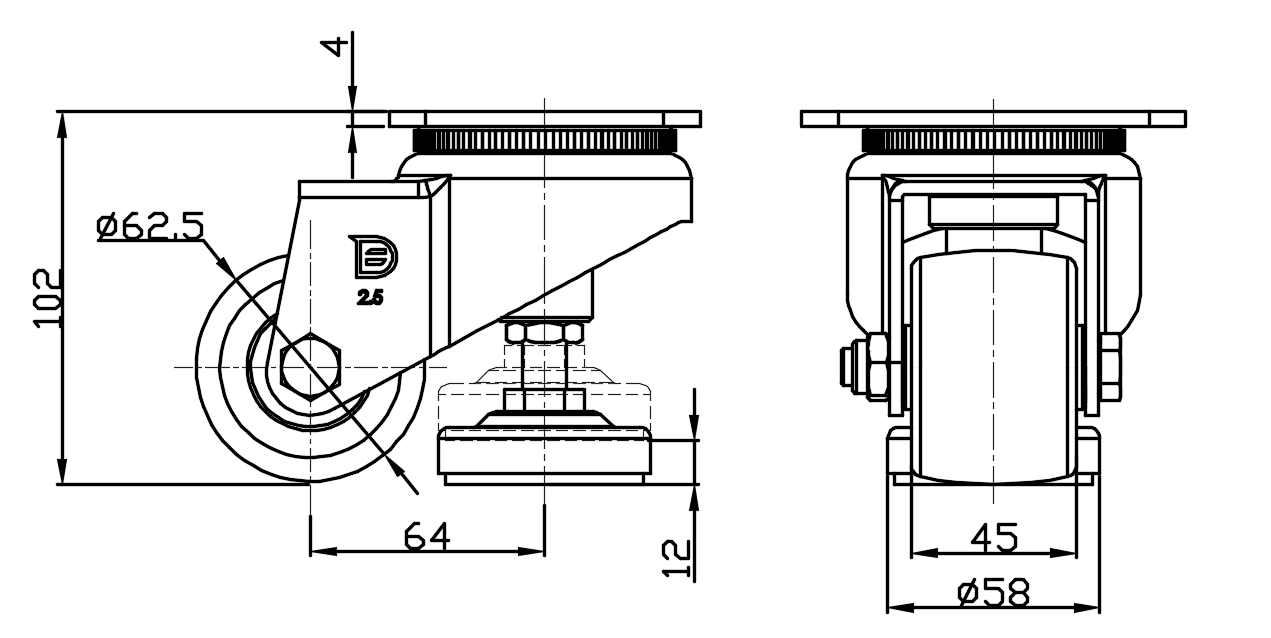

Product Data Sheet

Wheel Diameter: 62.5mm
Wheel Width: 45mm
Wheel Bearing: Wheels With Ball Bearings

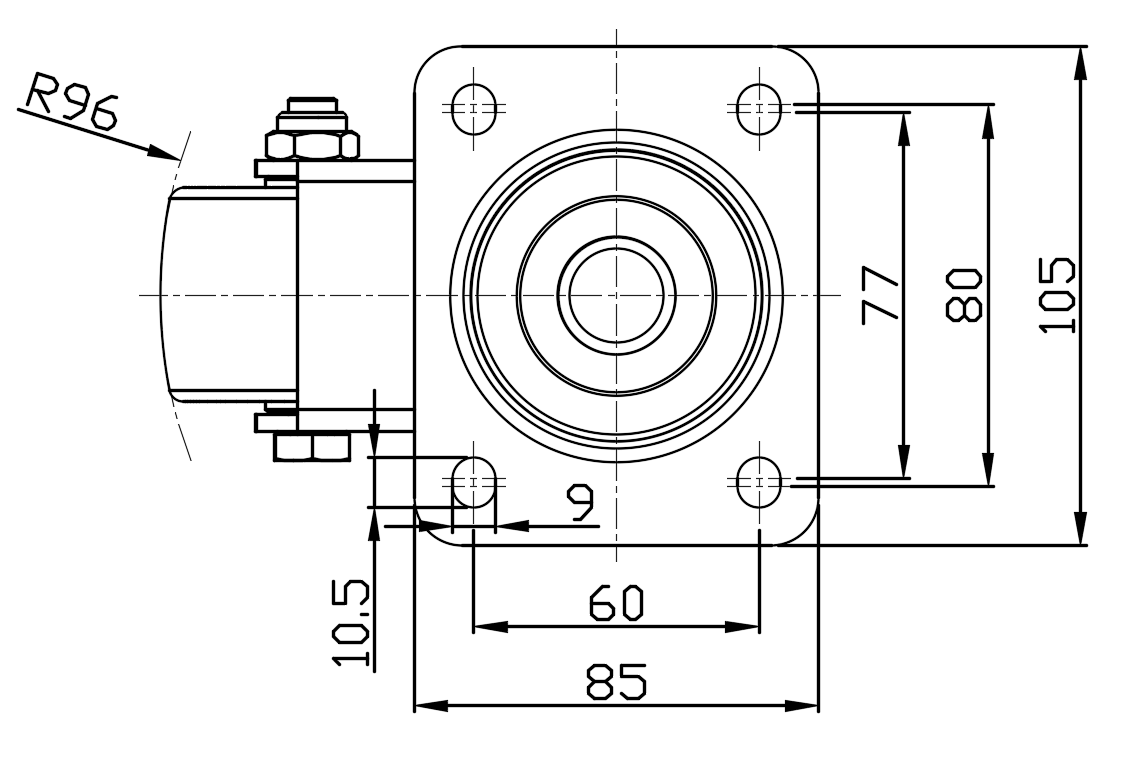

Plate Size: 105 x 85mm
Bolt Hole Spacing: 80 x 60mm
Plate Hole: 10.5 x 9mm
Offset: 64mm
Swivel Interference: 192mm
Overall Height: 102mm
Swivel Radius: 96mm
Hardness Of Tread: 92±5° Shore A
Load Capacity (Dynamic): 200kgs
Load Capacity (Static): 1000kgs
Temperature: -20°C to +70°C
Fork Type: Swivel Caster
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 1.67kgs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.
