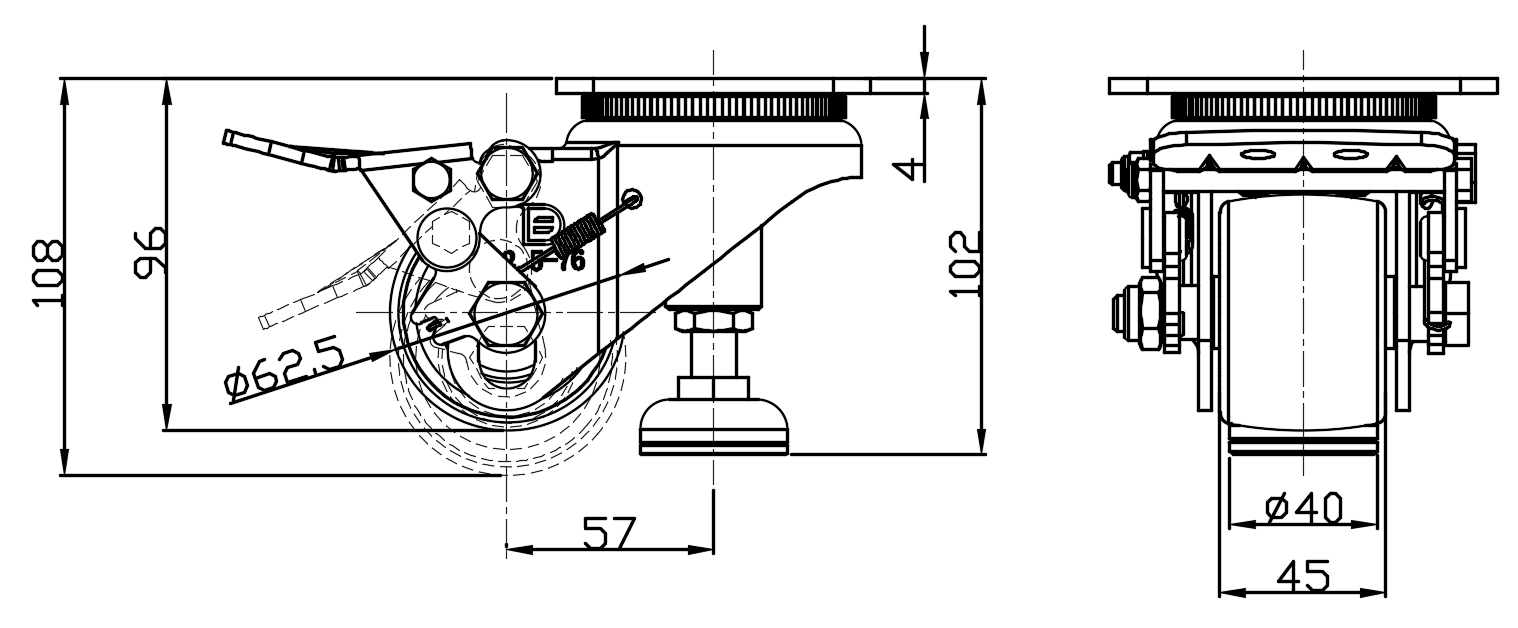

- Wheel Diameter
- 62.5mm
- Wheel Width
- 45mm
- Wheel Bearing
- Wheels With Ball Bearings

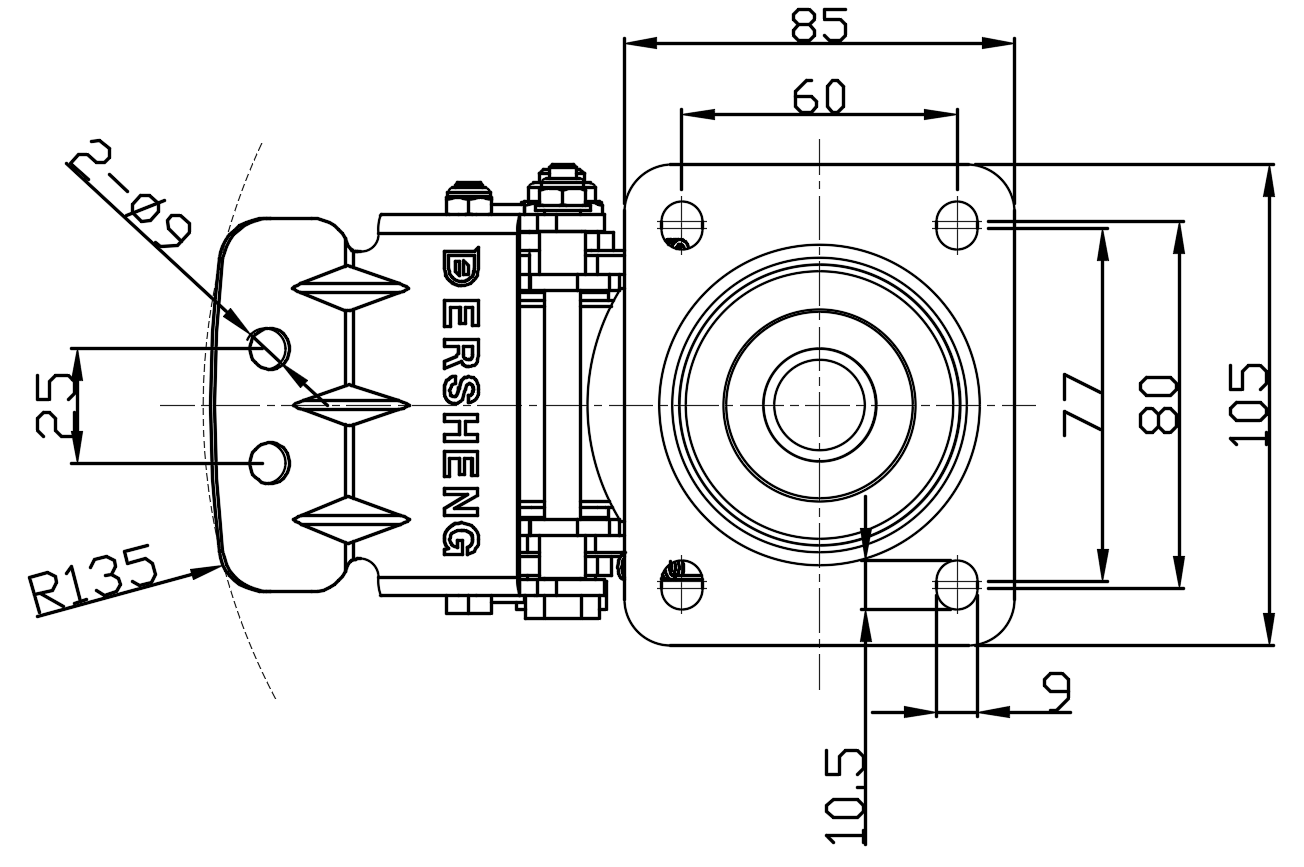

- Plate Size
- 105 x 85mm
- Bolt Hole Spacing
- 80 x 60mm
- Plate Hole
- 10.5 x 9mm
- Offset
- 57mm
- Swivel Interference
- 270mm
- Overall Height
- 102mm
- Swivel Radius
- 135mm
- Hardness Of Tread
- 92±5° Shore A
- Load Capacity (Dynamic)
- 200kgs
- Load Capacity (Static)
- 1000kgs
- Temperature
- -20°C to +70°C
- Fork Type
- Swivel Caster With Total Brake
- Stainless
- N/A
- Electrical Conductivity
- N/A
- Anti-Static
- N/A
- Weight
- 2kgs
- Standard
- ISO22883
* For any deviation between metric and imperial spec, please refer to the metric spec.
