King Kong Wheel (black) Wheel Diameter × Wheel Width 75×45 mm

Picture may differ from original product

1168 Levelling Caster Series

King Kong Wheel (black) Wheel Diameter × Wheel Width 75×45 mm

YJ-11680300712063

Wheel Diameter75mm　

Load Capacity (Dynamic)400kgs　

Overall Height120mm　

Wheel BearingWheels With Ball Bearings

Swivel Caster with Riveted Fork and Stamping Fork—D-shaped hole.
Zine-Plated, Fork-mount Mounting Type.
Reinforced Polypropylene and tread.
Black. Bearing—Ball Bearing.
Wheel Tread: Thermoplastic (POK)
Wheel Center: Thermoplastic (POK)

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet 3D Drawing Request

3D drawings are for members only. Please log in to download.

Product Data Sheet

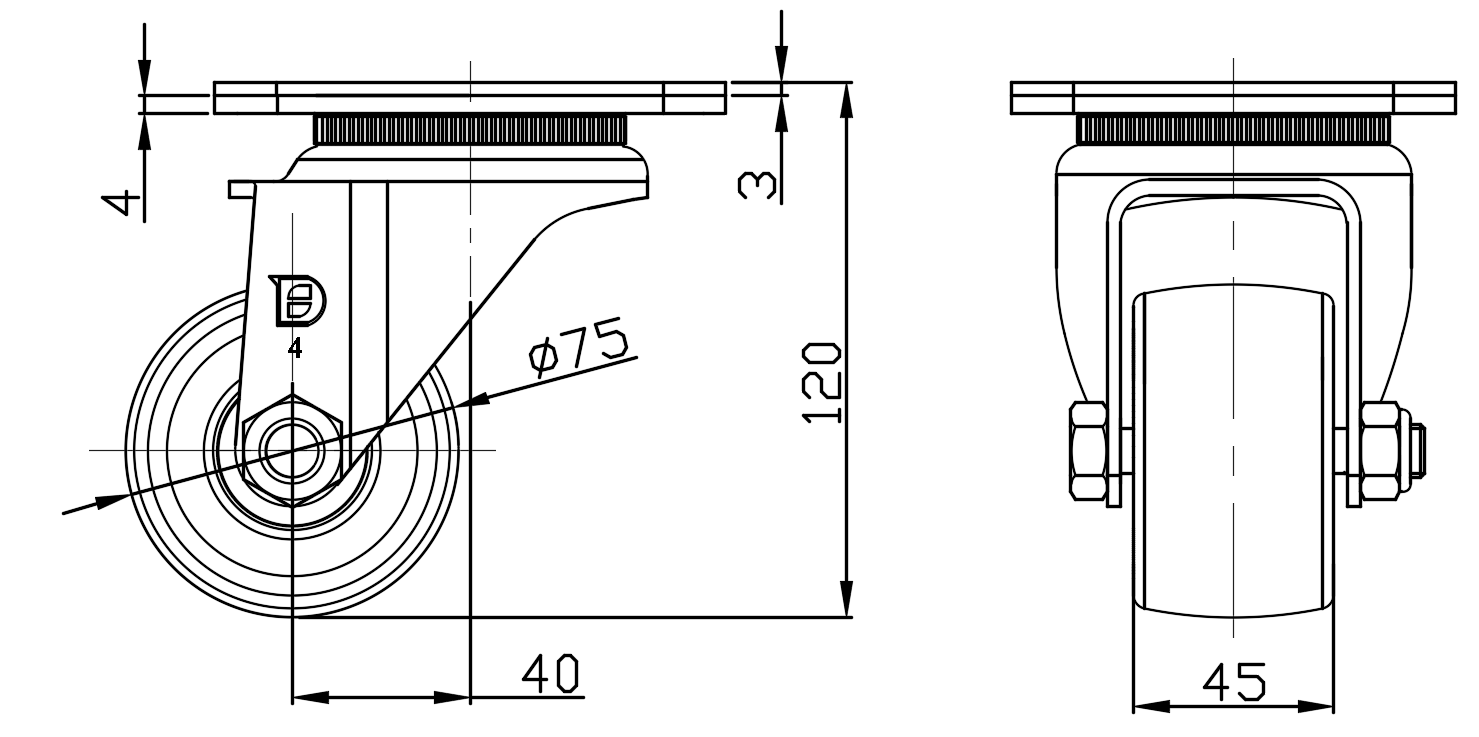

Wheel Diameter: 75mm
Wheel Width: 45mm
Wheel Bearing: Wheels With Ball Bearings

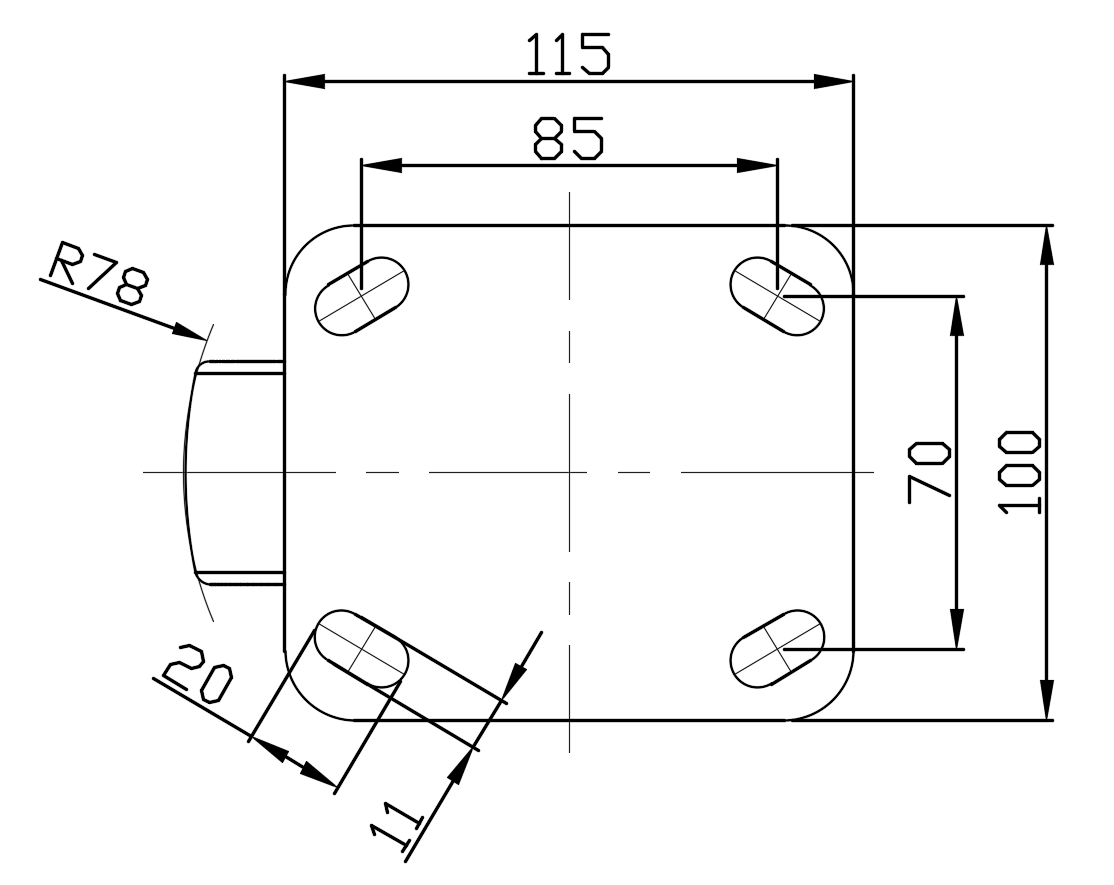

Plate Size: 115 x 100mm
Bolt Hole Spacing: 85 x 70mm
Plate Hole: 20 x 11mm
Offset: 40mm
Swivel Interference: 156mm
Overall Height: 120mm
Swivel Radius: 78mm
Hardness Of Tread: 75±5° Shore D
Load Capacity (Dynamic): 400kgs
Load Capacity (Static): 600kgs
Temperature: -20°C to +80°C
Fork Type: Swivel Caster
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 1.5kgs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.
