    Product Data Sheet

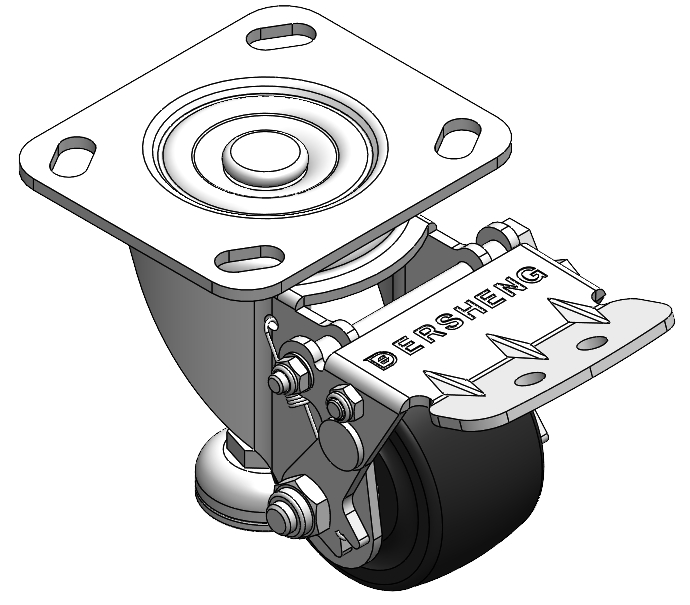

1168 Levelling Caster Series
　　King Kong Wheel (black) Wheel Diameter × Wheel Width 75×45 mm
　　EAN
　　　　　 　　　
　　YJ-11680300712043 　　　
Adjustable lift Caster with Riveted, Stamping Fork and 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing, Short Pedal. Zine-Plated, Mounting Type - Top Plate, Height Adjustable Stand. Reinforced Polypropylene and tread. Black, Bearing with Ball Bearing.
　　Wheel Tread: Thermoplastic (POK)
　　Wheel Center: Thermoplastic (POK)

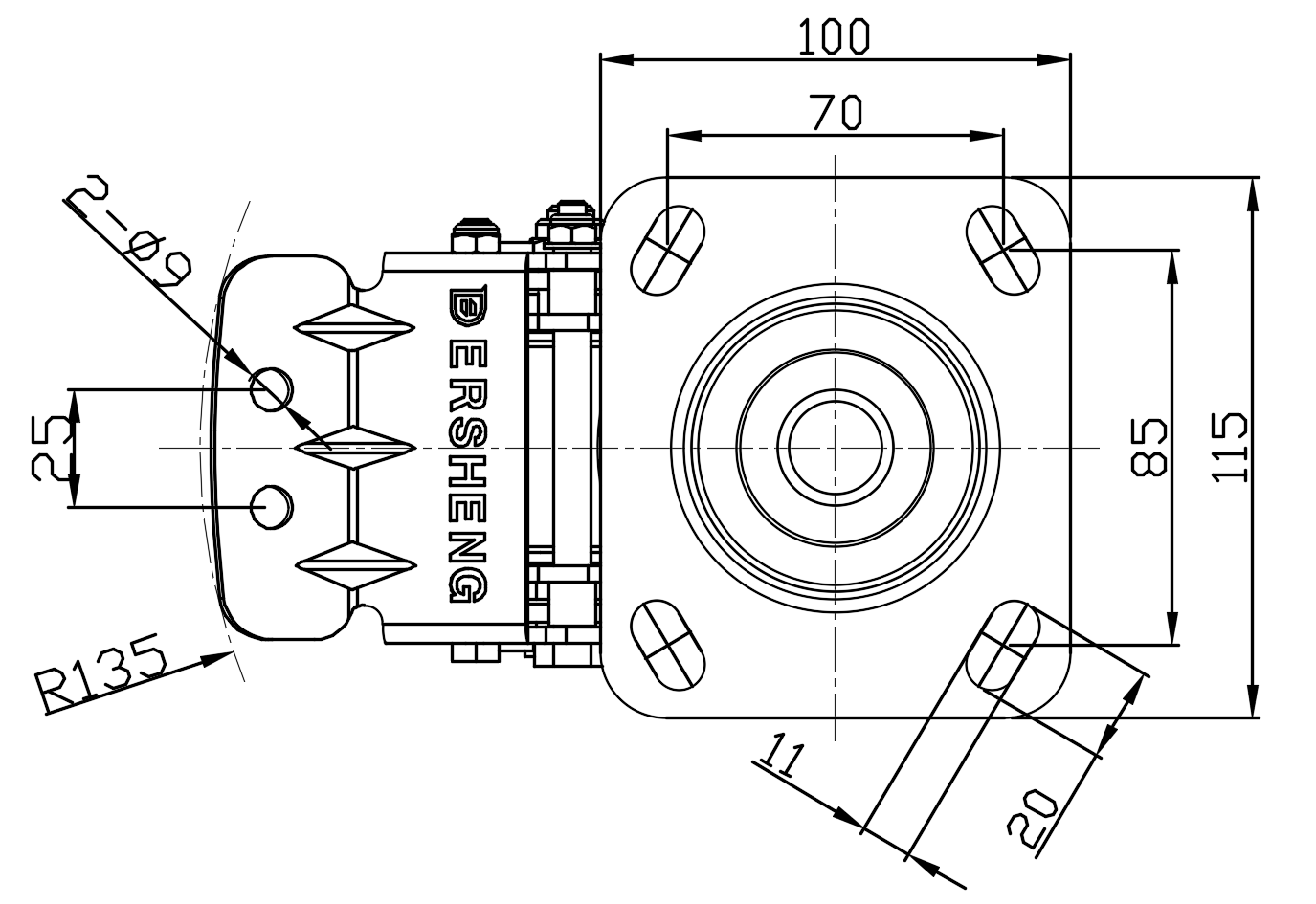

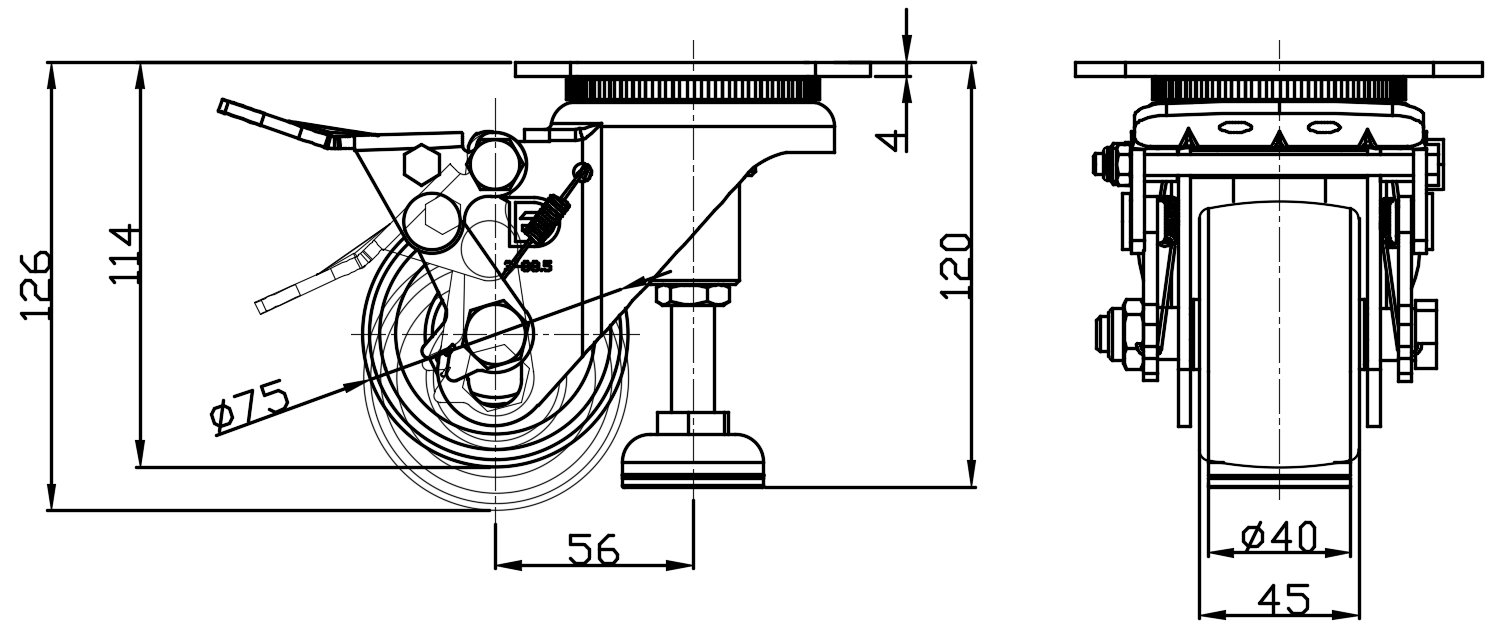

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　

　　Wheel Width 45mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 56mm　
　　Swivel Interference 270mm　
　　Overall Height 120mm　
　　Swivel Radius 130mm　
　　Hardness Of Tread 75±5° Shore D　
　　Load Capacity (Dynamic) 260kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ○ ○ ○

　　Floor Surface Preservation  ● ● ○ ○ ○
　　Load Capacity (Static) 1000kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.06kgs　
　　Standard ISO22883
　　
　　
