Product Data Sheet
1168 Levelling Caster Series
  MRC (Black) Wheel Diameter × Wheel Width 100×36mm
  EAN

  YJ-11680400071033
Rigid castor, Stamping Fabricated Caster Fork - European standard holes Extended control lever surface, Mounting Type - Top Plate Reinforced Polypropylene and Wheel Tread Black, Bearing - Ball Bearing.
  Wheel Tread: Thermoplastic (PA6)
  Wheel Center: Thermoplastic (PA6)

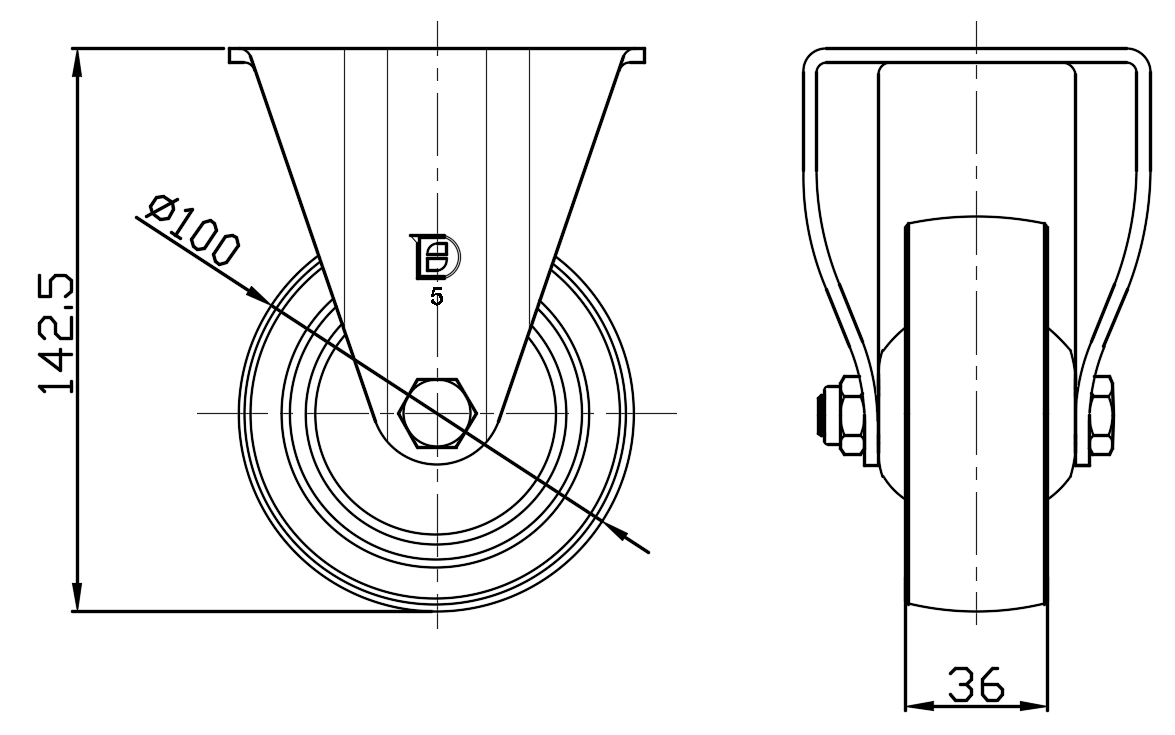

    Drawings are for reference only and may differ from the product




      Metric Imperial
  Wheel Diameter 100mm

  Wheel Width 36mm
  Wheel Bearing Wheels With Ball Bearings

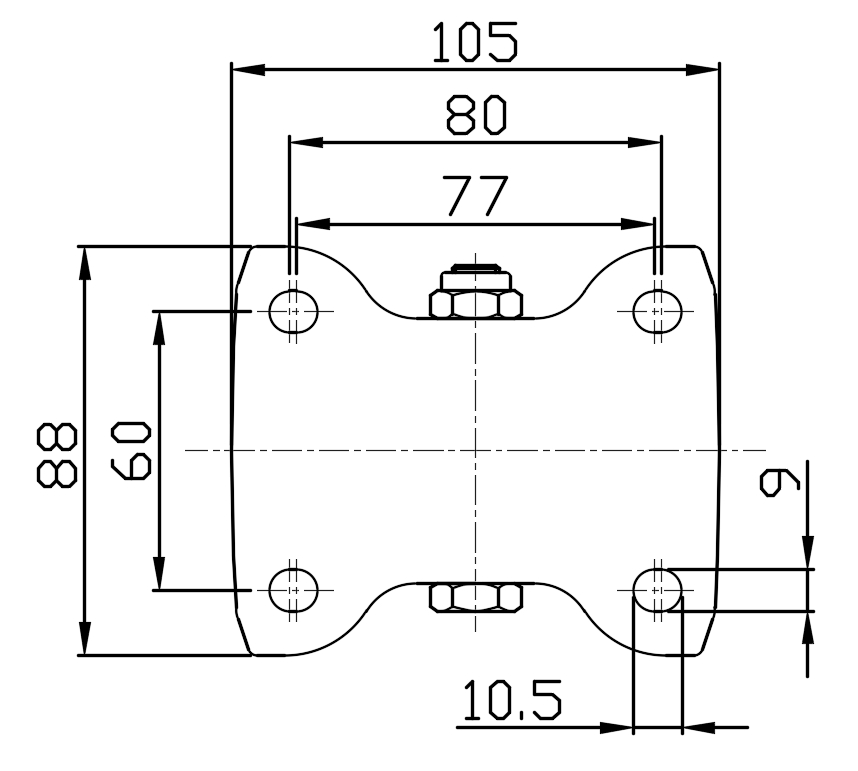

  Plate Size 105 x 88mm
  Bolt Hole Spacing 80 x 60mm
  Plate Hole 10.5 x 9mm
  Overall Height 142.5mm
  Hardness Of Tread 75±5° Shore D
  Load Capacity (Dynamic) 250kgs


  Rolling Resistance
        ● ● ● ● ●

  Operating Noise        ● ● ○ ○ ○

  Floor Surface Preservation  ● ● ○ ○ ○

  Load Capacity (Static) 375kgs
  Temperature -20°C to +80°C
  Fork Type Rigid Caster
  Stainless N/A
  Electrical Conductivity N/A
  Anti-Static N/A
  Weight 0.77kgs
  Standard ISO22883
