    Product Data Sheet
1168 Levelling Caster Series
　　AQPU (brown round) Wheel Diameter × Wheel Width 100 x 40mm
　　EAN
　　　　　 　　　
　　YJ-11680400602063 　　　

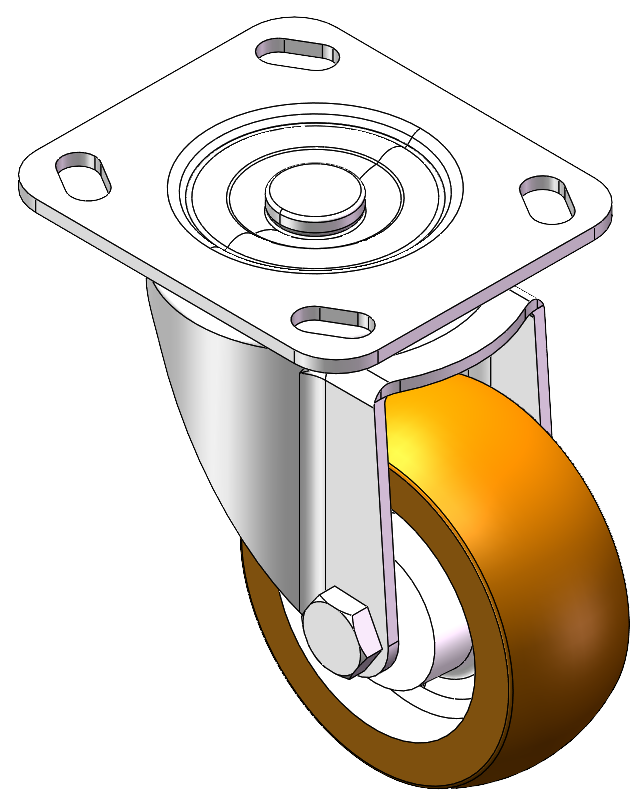

Swivel Caster with Riveted Fork and Stamping Fork with 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing. Zine-Plated, Fork-mount Mounting Type. Aluminum core with High Quality Polyurethane tread. Brown color, Bearing with Ball Bearing.
　　Wheel Tread: high quality polyurethane
　　Wheel Center: aluminum core

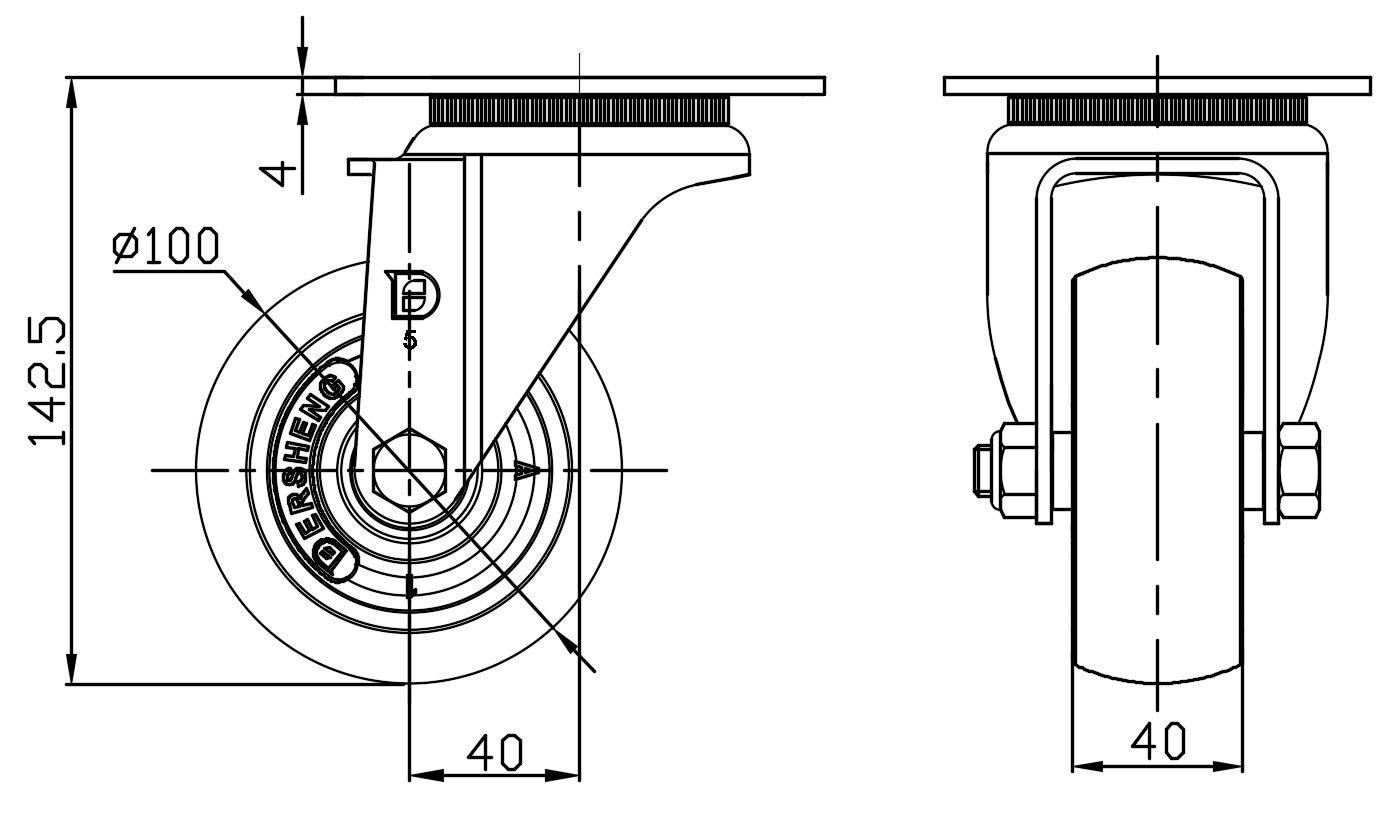

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 36mm　
　　Wheel Bearing Wheels With Ball Bearings

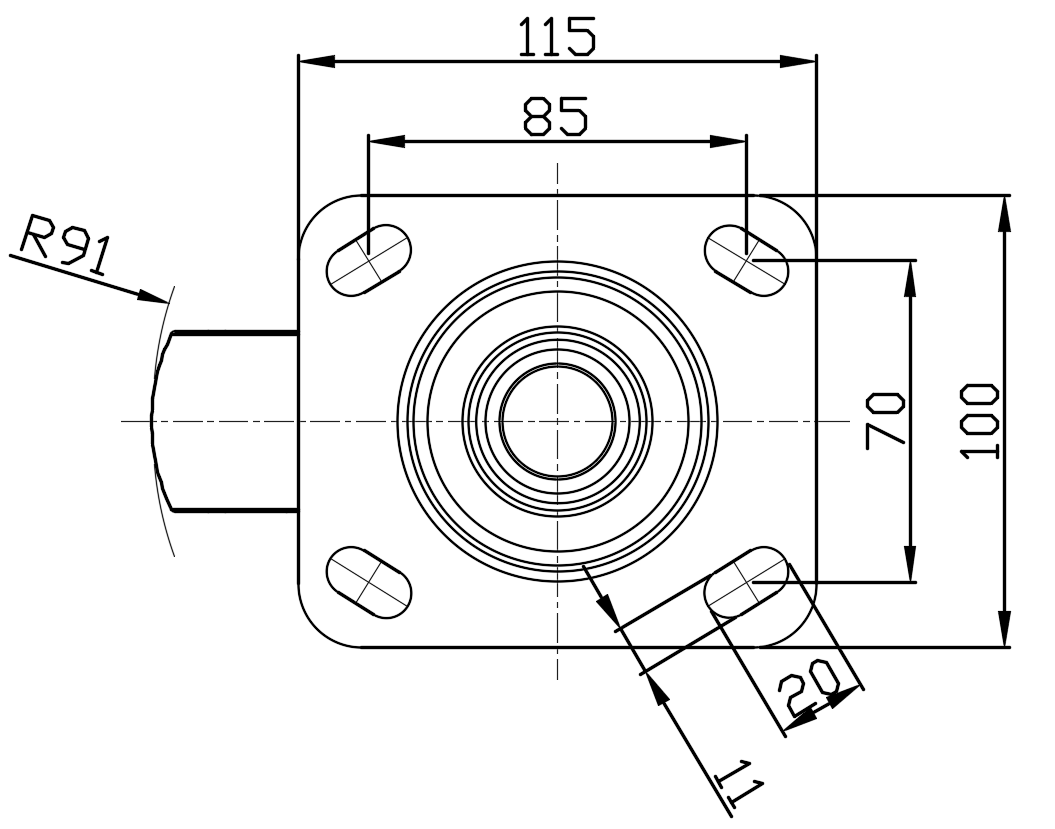

　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 40mm　
　　Swivel Interference 182mm　
　　Overall Height 142.5mm　
　　Swivel Radius 91mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 320kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 480kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.38kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2026 DershengInternational www.dersheng.com
Related　　Products　　

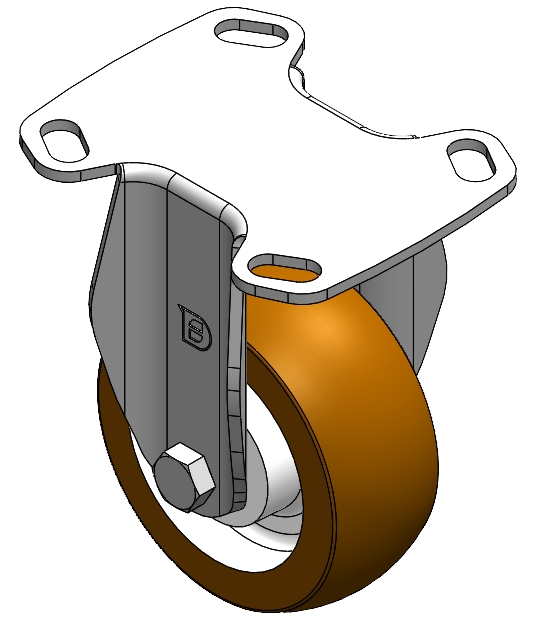

1168 Levelling Caster Series
AQPU (brown round) Wheel Diameter × Wheel Width 100 x 40mm
YJ-11680400601023
100 mm 320 Kgs 142.5 mm
Rigid castor, Stamping Fabricated Caster Fork - D-type hole Extended control lever surface, Mounting Type - Top Plate Aluminum Wheel Center, High Quality Polyurethane Wheel Tread Brown, Bearing - Ball Bearing.

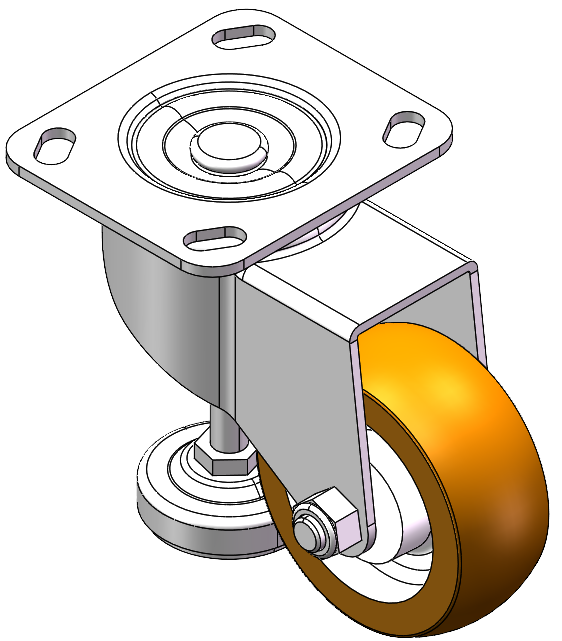

1168 Levelling Caster Series
AQPU (brown round) Wheel Diameter × Wheel Width 100 x 40mm
YJ-11680400602083
100 mm 250 Kgs 142.5 mm
Swivel Caster with Riveted Fork and Stamping Fork with D-shaped hole. Zine-Plated, Fork-mounted Mounting Type with Height Adjustable Stand. Aluminum Wheel Center with High Quality Polyurethane tread. Brown color, Bearing with Ball Bearing.

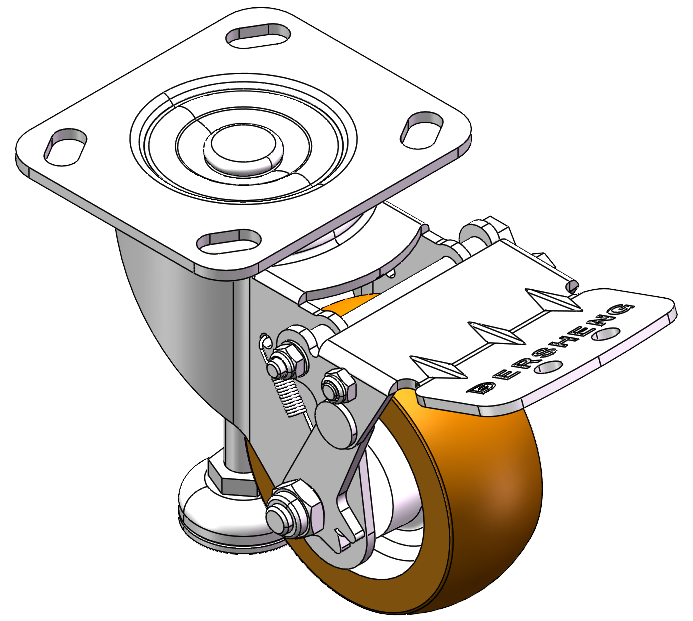

1168 Levelling Caster Series
AQPU (brown round) Wheel Diameter × Wheel Width 100 x 40mm
YJ-11680400602033
100 mm 320 Kgs 142.5 mm
Height Adjustable Leveling Caster, Top Plate with Riveted Fork and 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacings, Long Pedal Zine-Plated, Mounting Type - Top Plate, Height Adjustable Stand Aluminum Wheel Center with High Quality Polyurethane tread Brown, Bearing with Ball Bearing.

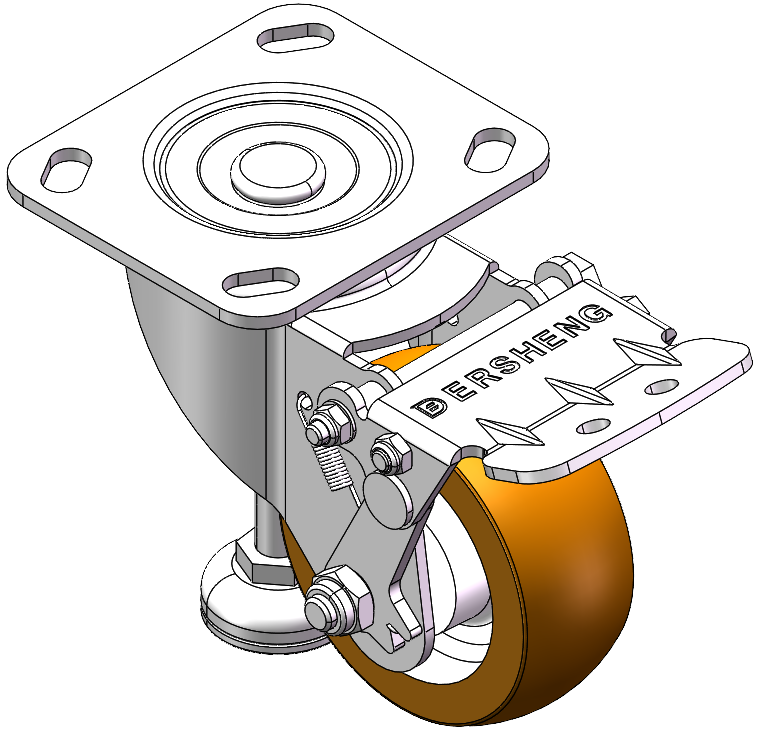

1168 Levelling Caster Series
