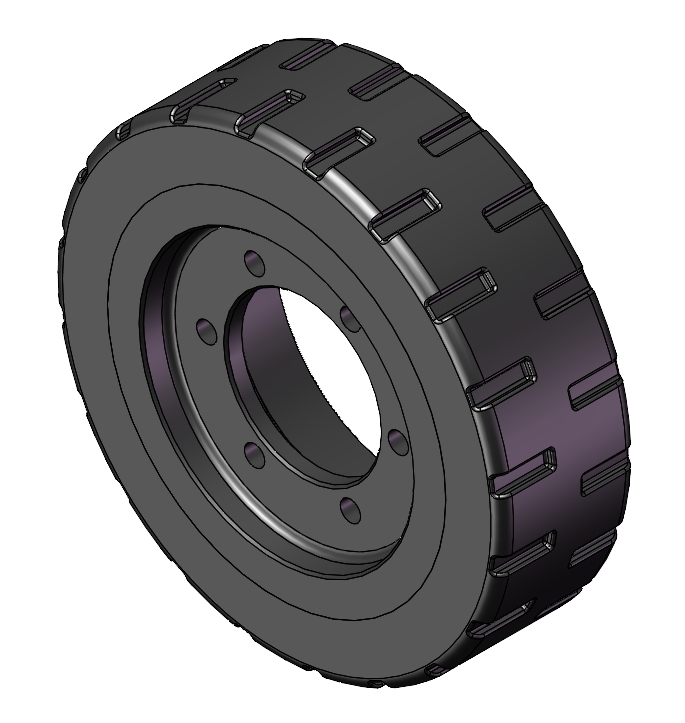

Picture may differ from original product
Rubber Series
Wheel Diameter × Wheel Width 200 x 60mm
YJ-12046208230101
Wheel Diameter（D）200mm
Tread Pattern—
Load Capacity at 6 km/h212.5kgs
Product descriptions are for reference only. The actual product shall prevail.
3D drawings are for members only. Please log in to download.

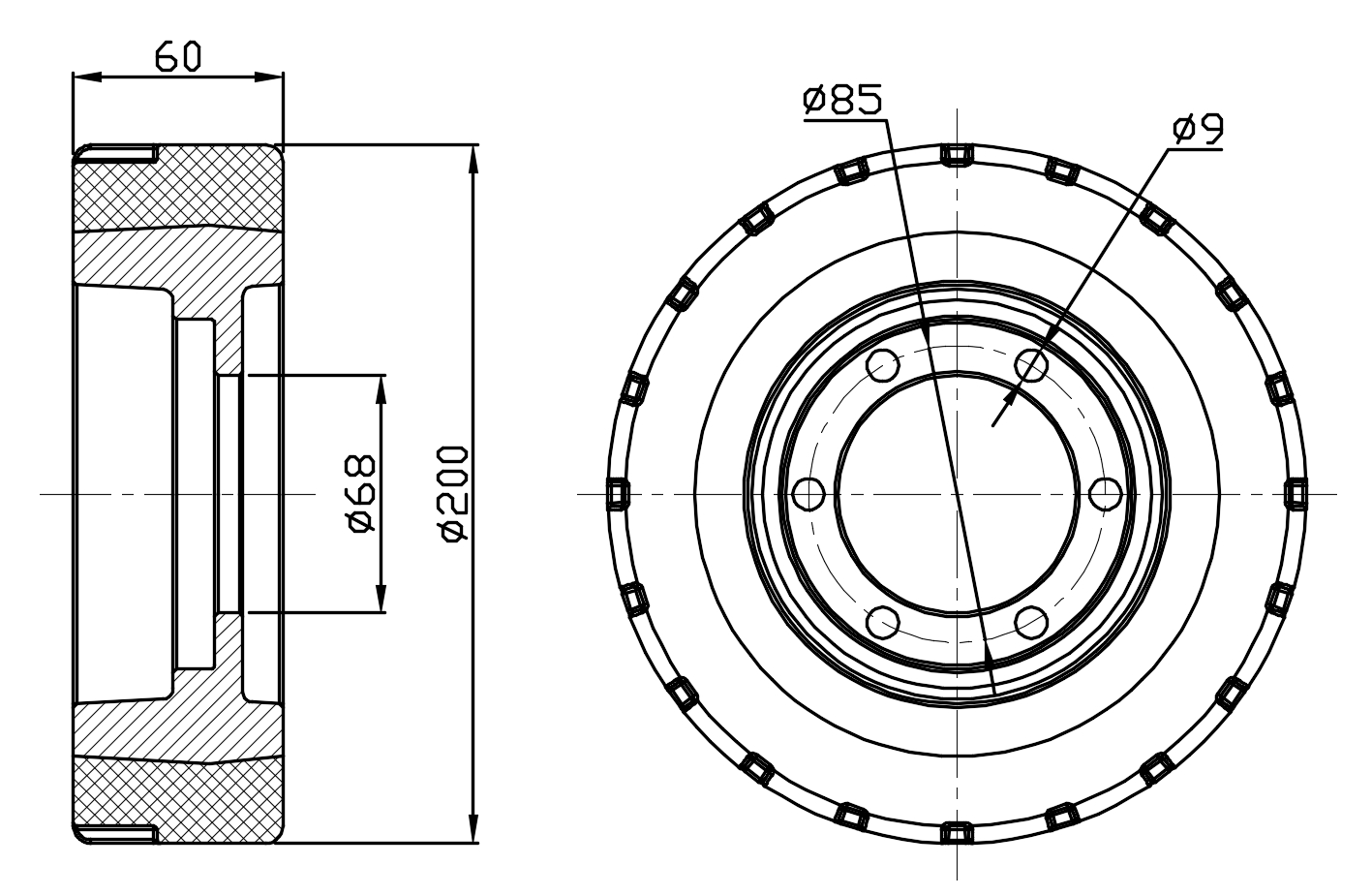

Product Data Sheet
- Wheel Diameter（D）
- 200mm
- Wheel Width（T2）
- 60mm
- Wheel installation — Hub Lenth (T1)
- —
- Wheel center-bore diameter (d)
- 68mm
- Wheel Mounting Bolt Hole PCD Diameter
- 9mm
- Wheel Mounting Bolt Hole PCD
- 85mm
- # Of Wheel mounting bolt boles
- 6
- Wheel mounting bolt hole (M)
- —
- Number of wheel mounting bolt holes
- —
- Load Capacity (Static)
- 375kgs
- Load Capacity at 4 km/h
- 250kgs
- Load Capacity at 6 km/h
- 212.5kgs
- Load Capacity at 10 km/h
- 175kgs
- Load Capacity at 16 km/h
- 100kgs
- Hardness Of Tread
- 72±5° Shore A
- Temperature
- -20°C to +80°C
- Tread Pattern
- —
- Wheel centre/ rim
- Non-Marking
- Y
- Conductive
- N/A
- Anti
- N/A
- Weight
- 4.70kgs
- Standard
- ISO22883
* For any deviation between metric and imperial spec, please refer to the metric spec.
