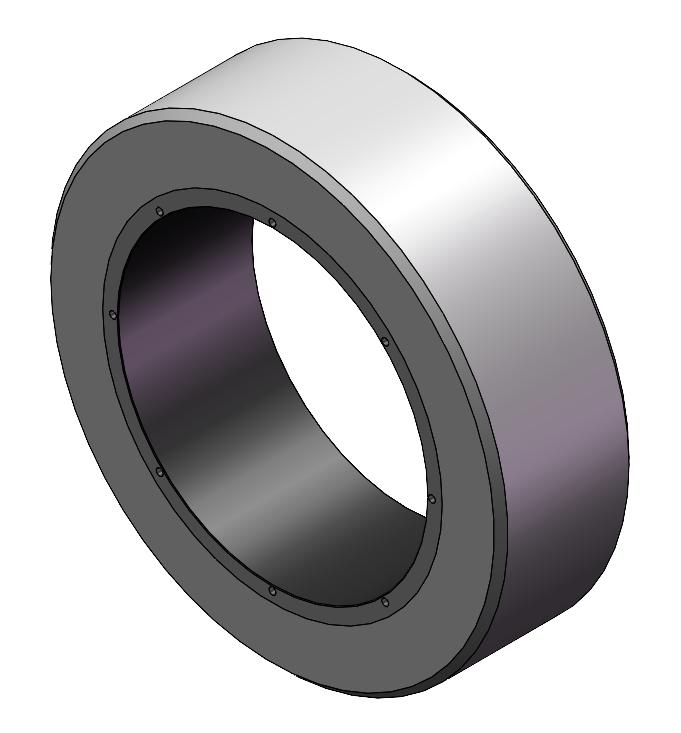

Picture may differ from original product
HPU Series
Wheel Diameter × Wheel Width 200 x 49mm
YJ-12037708200104
Wheel Diameter（D）200mm 8＂
Tread Pattern— 乱码纹A
Load Capacity at 6 km/h650kgs 1433lbs
- Excellent mechanical properties and abrasion resistance
- Excellent chemical resistance、Resistance to corrosive substances
- Suitable for forklifts、Electric stackers、AGV automation and floor-scrubber applications
- HPU，Dark gray，Machined random A-pattern surface
- Increases floor traction，Effectively improves slip resistance
- Inner bushing：Iron core
Product descriptions are for reference only. The actual product shall prevail.
3D drawings are for members only. Please log in to download.
Product Data Sheet
- Wheel Diameter（D）
- 200mm8＂
- Wheel Width（T2）
- 49mm2＂
- Wheel installation — Hub Lenth (T1)
- ——
- Wheel center-bore diameter (d)
- 135.3mm5-7/16＂
- Wheel Mounting Bolt Hole PCD Diameter
- ——
- Wheel Mounting Bolt Hole PCD
- 139.5mm5-1/2＂
- # Of Wheel mounting bolt boles
- ——
- Wheel mounting bolt hole (M)
- 3
- Number of wheel mounting bolt holes
- 8
- Load Capacity (Static)
- 1147kgs2529lbs
- Load Capacity at 4 km/h
- 756kgs1667lbs
- Load Capacity at 6 km/h
- 650kgs1433lbs
- Load Capacity at 10 km/h
- 535kgs1179lbs
- Load Capacity at 16 km/h
- 306kgs675lbs
- Hardness Of Tread
- 92±5° Shore A
- Temperature
- -20°C to +70°C-4°F to +158°F
- Tread Pattern
- —乱码纹A
- Wheel centre/ rim
- Non-Marking
- Y
- Conductive
- N/A 10^8/Ω～10^11/Ω
- Anti
- N/A
- Weight
- 1.99kgs4.4lbs
- Standard
- ISO22883
* For any deviation between metric and imperial spec, please refer to the metric spec.
Performance
Rolling SmoothnessMax. 5 pointsScore: 5
