HPU Series

Wheel Diameter × Wheel Width 150 x 40mm

YJ-12037706186179
Wheel Diameter(D)150mm 6"
Tread Pattern— 菱形+直式纹
Load Capacity at 6 km/h765kgs 1687lbs
  • Excellent mechanical properties and abrasion resistance
  • Excellent chemical resistance、Resistance to corrosive substances
  • Suitable for forklifts、Electric stackers、AGV automation and floor-scrubber applications Applications

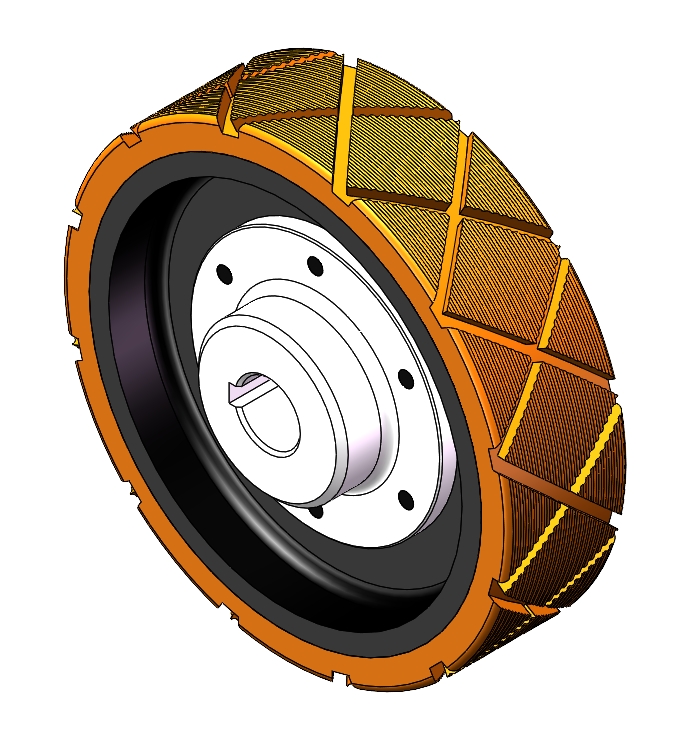

  • HPU,Orange-yellow,Machined diamond and straight-pattern surface
  • Increases floor traction,Effectively improves slip resistance
  • Inner bushing:Cast iron core

Product descriptions are for reference only. The actual product shall prevail.

3D drawings are for members only. Please log in to download.

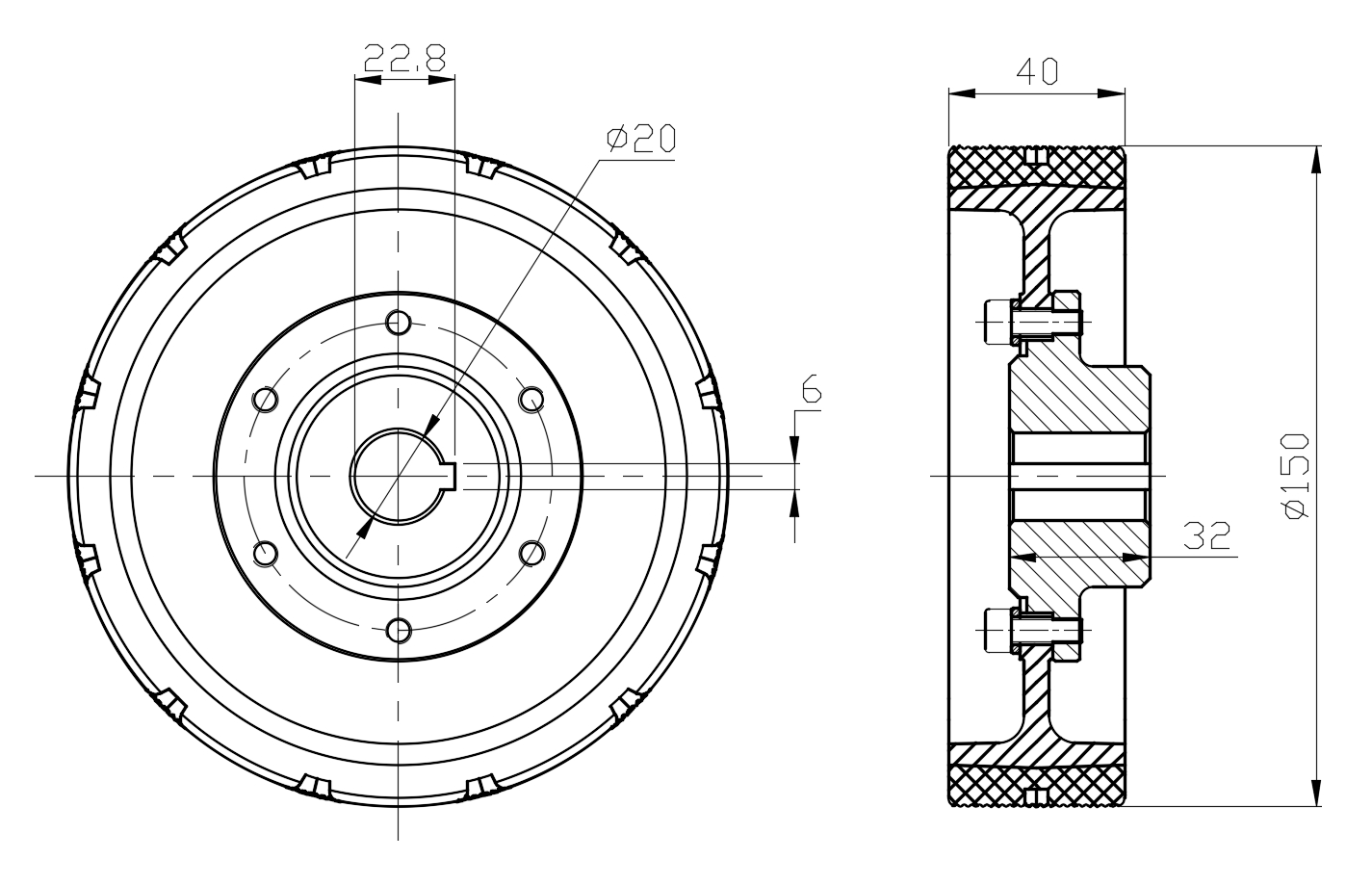

Product Data Sheet

Wheel Diameter(D)
150mm6"
Wheel Width(T2)
40mm1-5/8"
Wheel installation — Hub Lenth (T1)
32mm1-5/16"
Wheel Mounting Bore Diameter
20mm13/16"
Keyway Width
6mm1/2"
Wheel Keyway Depth (H)
22.8mm15/16
Load Capacity (Static)
1350kgs2976lbs
Load Capacity at 4 km/h
900kgs1984lbs
Load Capacity at 6 km/h
765kgs1687lbs
Load Capacity at 10 km/h
630kgs1389lbs
Load Capacity at 16 km/h
360kgs794lbs
Hardness Of Tread
92±5° Shore A
Temperature
-20°C to +70°C-4°F to +158°F
Tread Pattern
—菱形+直式纹
Wheel centre/ rim
Non-Marking
Y
Conductive
N/A
Anti
N/A
Weight
2.04kgs4.5lbs
Standard
ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.

Performance

Rolling SmoothnessMax. 5 pointsScore: 5
Quiet OperationMax. 5 pointsScore: 4
Floor Surface PreservationMax. 5 pointsScore: 5
