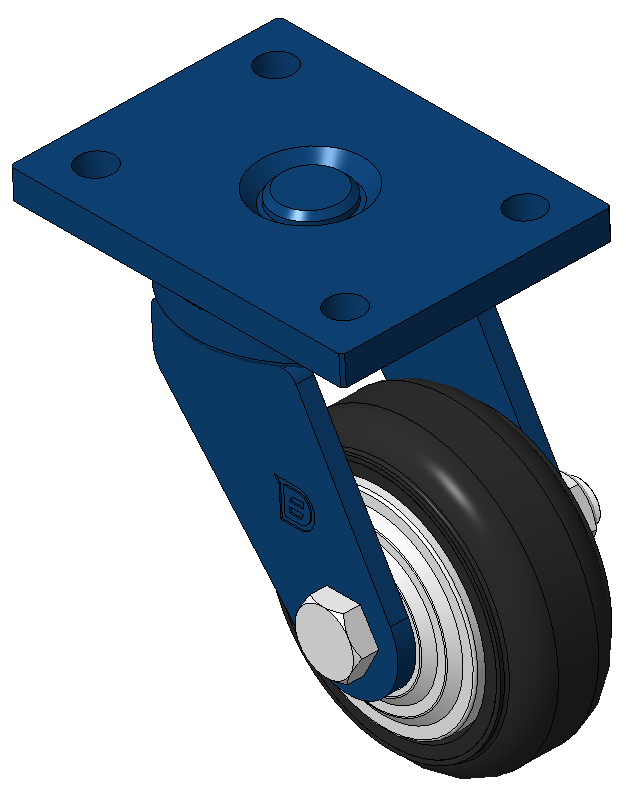

NBR (milling black) Wheel Diameter x Wheel Width 100 x 37mm

Picture may differ from original product

1102 B Type Caster Series

NBR (milling black) Wheel Diameter x Wheel Width 100 x 37mm

KS-11020400042011

Wheel Diameter100mm　

Load Capacity (Dynamic)200kgs　

Overall Height147mm　

Wheel BearingWheels With Ball Bearings

Swivel Caster, Welded Caster Fork - 90x60 Bolt Hole Spacing
Blue painted finish, Mounting Type - Top Plate
Cast Iron core, High-Quality, highly Resilient Rubber Wheel Tread
Cast Iron black, Bearing - Ball Bearing
Wheel surface: Made of high-quality, highly elastic rubber
Wheel Center: iron core/cast iron core

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet 3D Drawing Request

3D drawings are for members only. Please log in to download.

Product Data Sheet

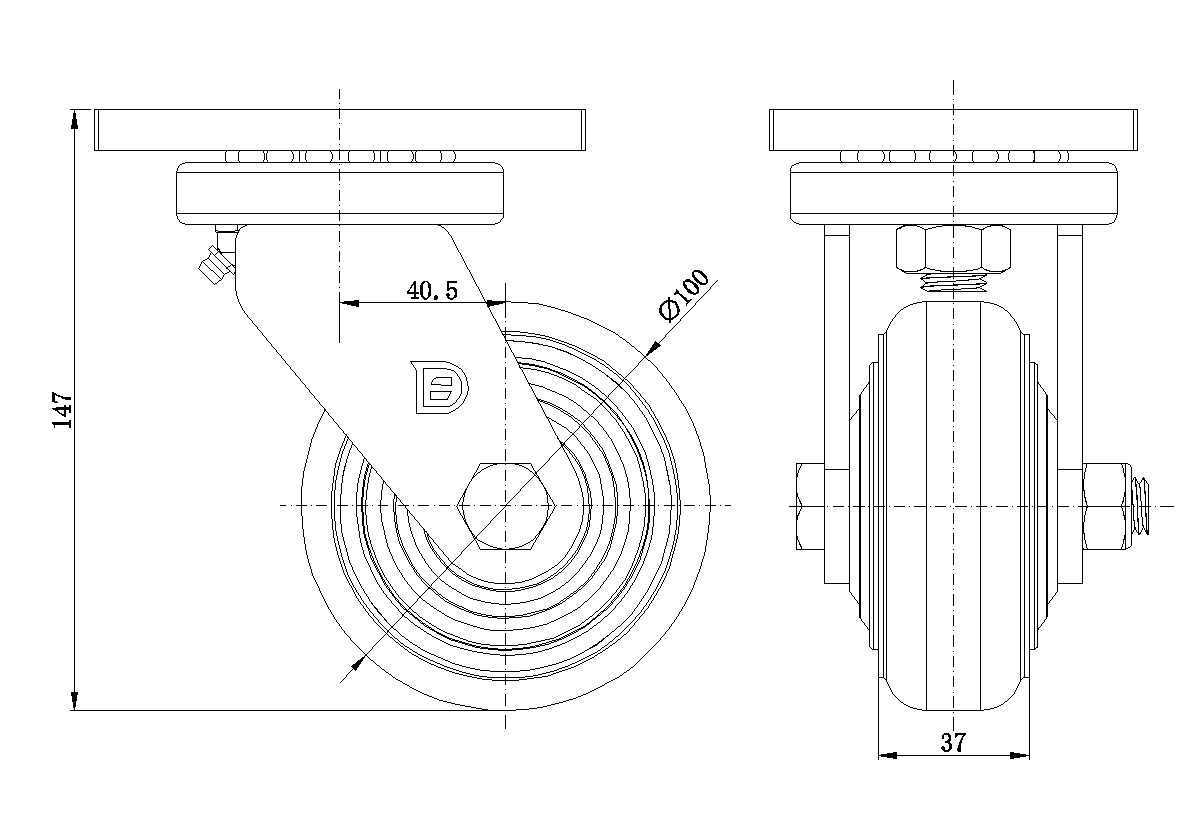

Wheel Diameter: 100mm
Wheel Width: 37mm
Wheel Bearing: Wheels With Ball Bearings

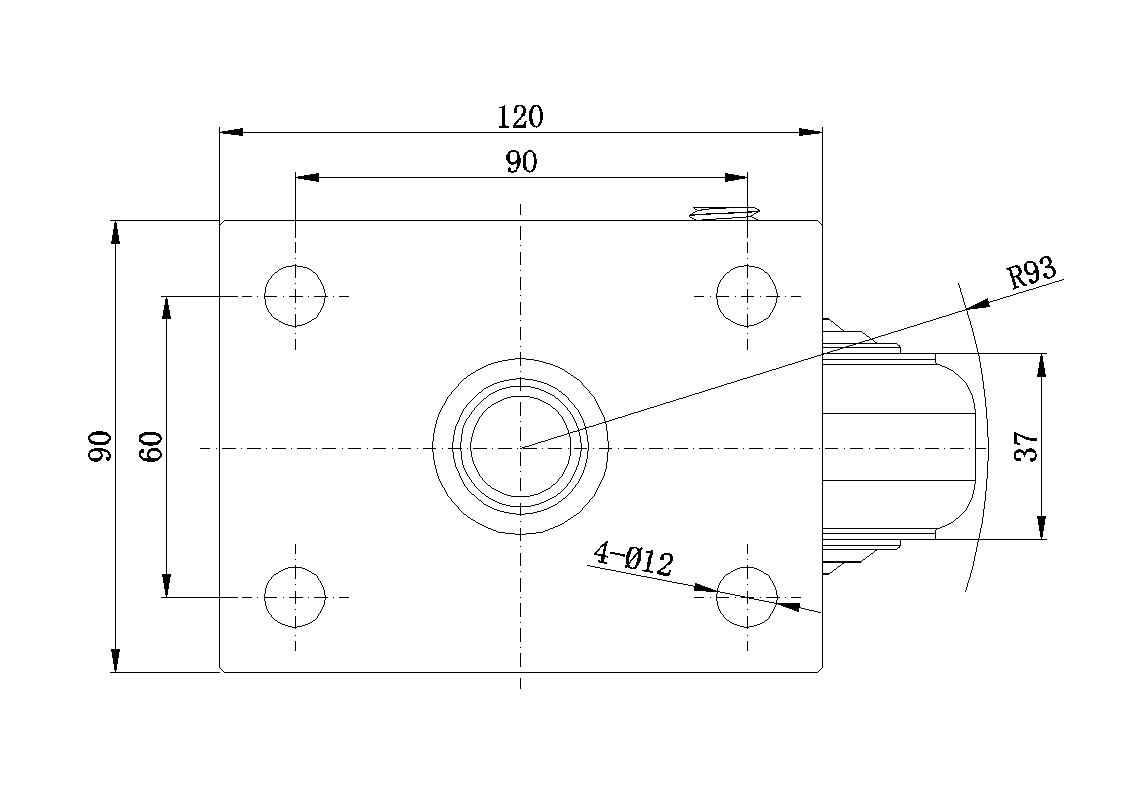

Plate Size: 120 x 90mm
Bolt Hole Spacing: 90 x 60mm
Plate Hole: 12mm
Offset: 40.5mm
Swivel Interference: 186mm
Overall Height: 147mm
Swivel Radius: 93mm
Hardness Of Tread: 85±5° Shore A
Load Capacity (Dynamic): 200kgs
Load Capacity (Static): 300kgs
Temperature: -20°C to +80°C
Fork Type: Swivel Caster
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 2.76kgs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.

Performance

Rolling Resistance

Operating Noise　

Floor Surface Preservation
