    Product Data Sheet
1102 B Type Caster Series
　　NBR (milling black) Wheel Diameter x Wheel Width 100 x 37mm
　　EAN
　　　　　 KS-11020400044061
　　　　　 　　　
Casters with front brake and With locking system, Welded Caster Fork
Blue-painted finish, Mounting Type - Top Plate, 90x60 Bolt Hole Spacing
Cast Iron core, High-Quality, highly Resilient Rubber Wheel Tread, Cast Iron black
Bearings—Ball Bearings with special Anti-thread wheel cover
　　Wheel surface: Made of high-quality, highly elastic rubber
　　Wheel Center: iron core/cast iron core

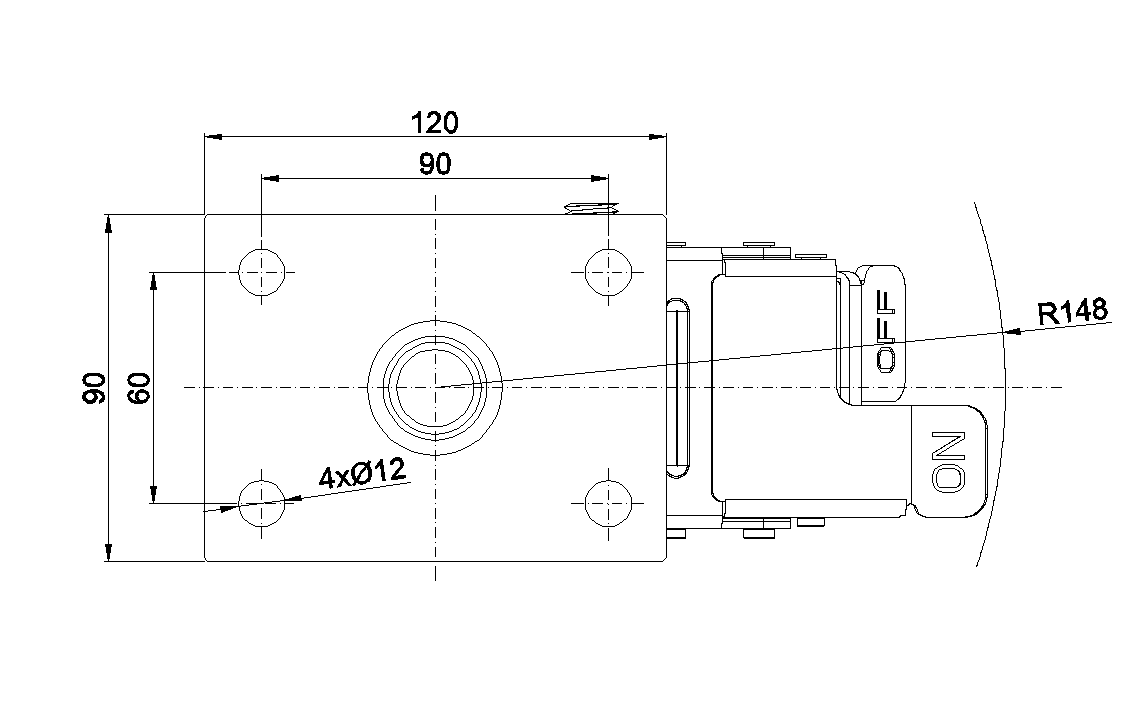

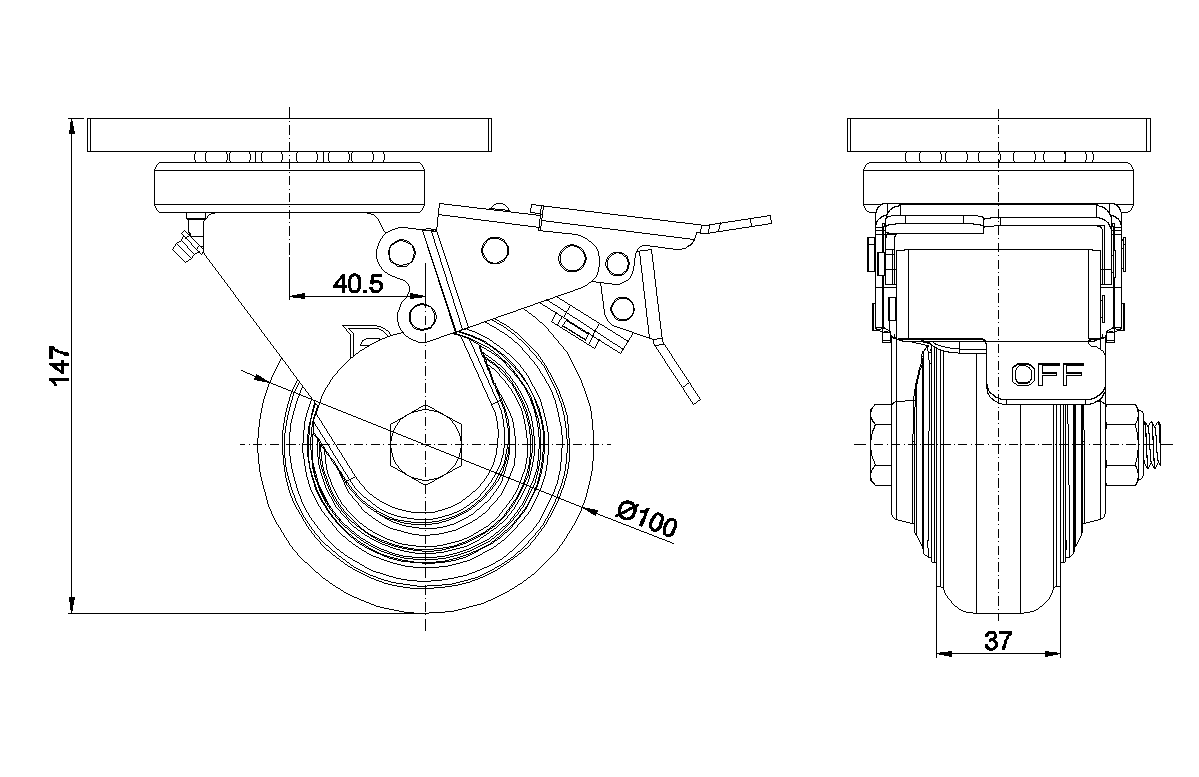

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 37mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 120 x 90mm　
　　Bolt Hole Spacing 90 x 60mm　
　　Plate Hole 12mm　
　　Offset 40.5mm　
　　Swivel Interference 296mm　
　　Overall Height 147mm　
　　Swivel Radius 148mm　
　　Hardness Of Tread 85±5° Shore A　
　　Load Capacity (Dynamic) 200kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 300kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Swivel Caster With Front Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 3.21kgs　
　　Standard ISO22883
　　
　　
