    Product Data Sheet
1102 B Type Caster Series
　　NBR (milling black) Wheel Diameter x Wheel Width 100 x 37mm
　　EAN
　　　　　 KS-11020400044031
　　　　　 　　　
Casters with rear brake and With locking system, Welded Caster Fork - 90x60 Bolt Hole Spacing
Blue-painted finish, Mounting Type - Top Plate
Cast Iron core, High-Quality, highly Resilient Rubber Wheel Tread, Cast Iron black
Bearings - Ball Bearings with special Anti-thread wheel cover
　　Wheel surface: Made of high-quality, highly elastic rubber
　　Wheel center: iron core/cast iron

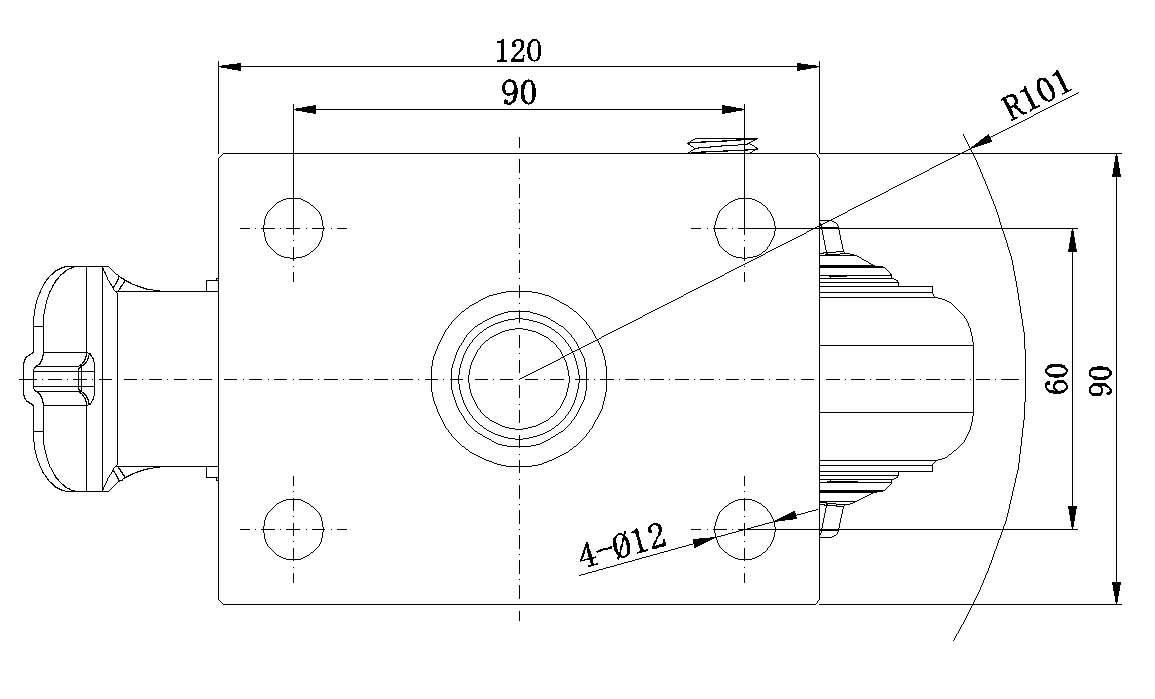

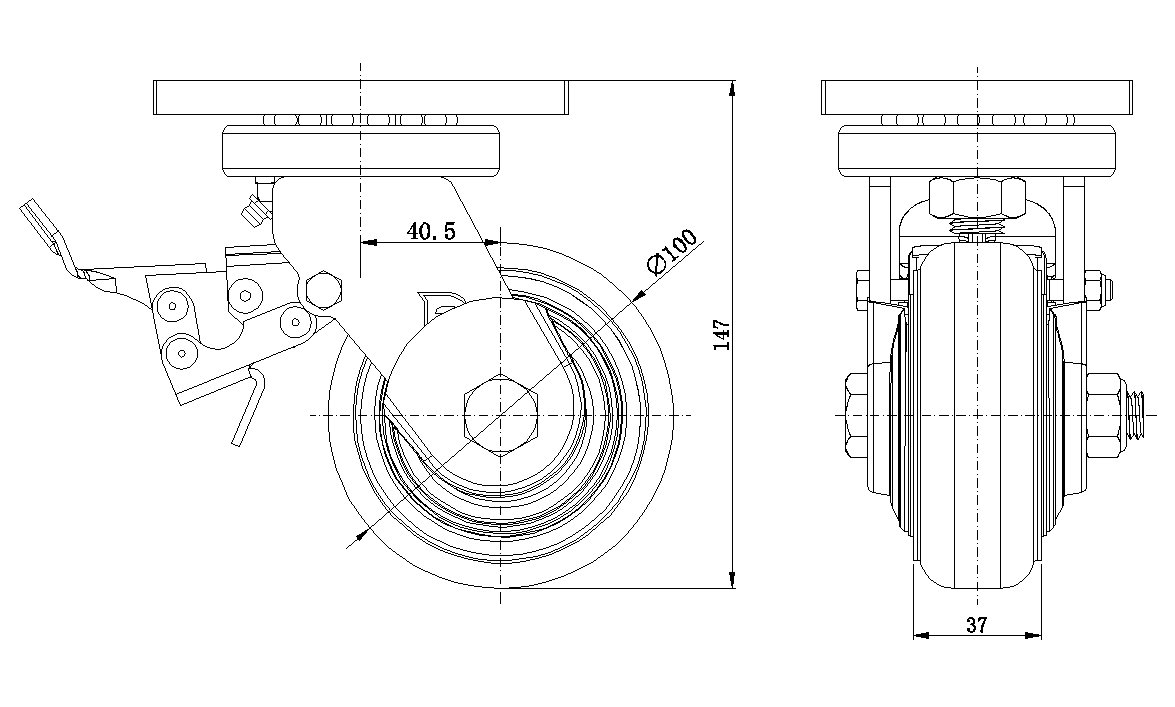

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 37mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 120 x 90mm　
　　Bolt Hole Spacing 90 x 60mm　
　　Plate Hole 12mm　
　　Offset 40.5mm　
　　Swivel Interference 202mm　
　　Overall Height 147mm　
　　Swivel Radius 101mm　
　　Hardness Of Tread 85±5° Shore A　
　　Load Capacity (Dynamic) 200kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 300kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Swivel Caster With Rear Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 3.09kgs　
　　Standard ISO22883
　　
　　
