PU (red flat) Wheel Diameter x Wheel Width 254x 62mm

Picture may differ from original product

1102 B Type Caster Series

PU (red flat) Wheel Diameter x Wheel Width 254x 62mm

KS-11021000331021

Wheel Diameter254mm　10-1/16＂

Load Capacity (Dynamic)600kgs　1323lbs

Overall Height307mm　12-3/16＂

Wheel BearingWheels With Ball Bearings

Rigid Caster with Welded Caster Fork and blue paint finish.
Mounting Type - Top Plate, 140x85 Bolt Hole Spacing.
Cast Iron core with High Quality Polyurethane Wheel Tread, Cast Iron red.
Bearings—Ball Bearings with special Anti-thread wheel cover.
Wheel tread: high-quality polyurethane wheel tread
Wheel Center: iron core/cast iron core

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet (Metric) Product Data Sheet (Imperial) 3D Drawing Request

3D drawings are for members only. Please log in to download.

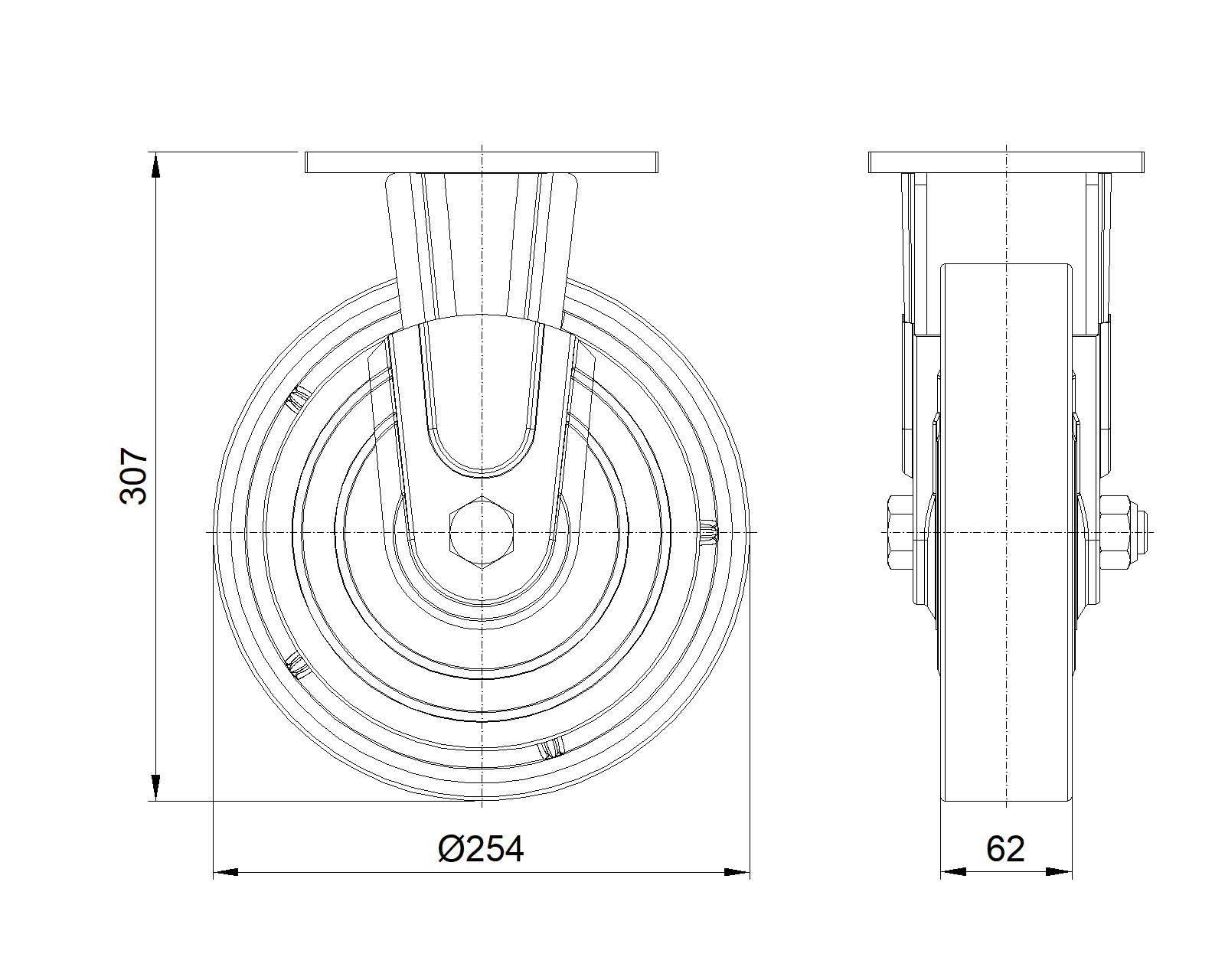

Product Data Sheet

Wheel Diameter: 254mm10-1/16＂
Wheel Width: 62mm2-1/2＂
Wheel Bearing: Wheels With Ball Bearings

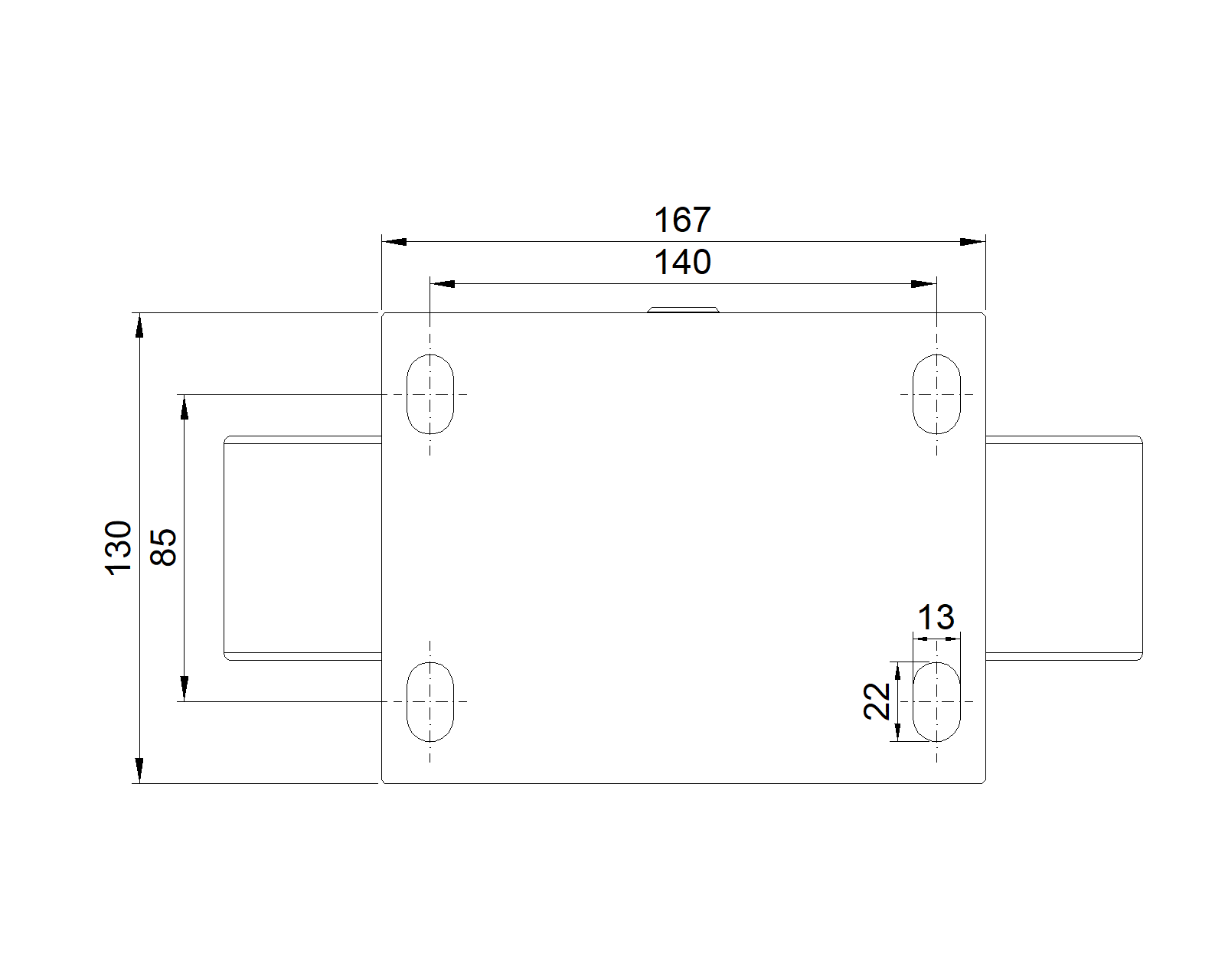

Plate Size: 167 x 130mm6-5/8＂ x 5-3/16＂
Bolt Hole Spacing: 140x85mm5-1/2＂x3-3/8＂
Plate Hole: 22 x 13mm7/8＂ x 9/16＂
Overall Height: 307mm12-3/16＂
Hardness Of Tread: 93±5° Shore A
Load Capacity (Dynamic): 600kgs1323lbs
Load Capacity (Static): 900kgs1984lbs
Temperature: -20°C to +70°C-4°F to +158°F
Fork Type: Rigid Caster
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 9.91kgs21.8lbs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.

Performance

Rolling SmoothnessMax. 5 pointsScore: 3

Quiet OperationMax. 5 pointsScore: 4

Floor Surface PreservationMax. 5 pointsScore: 4
