    Product Data Sheet

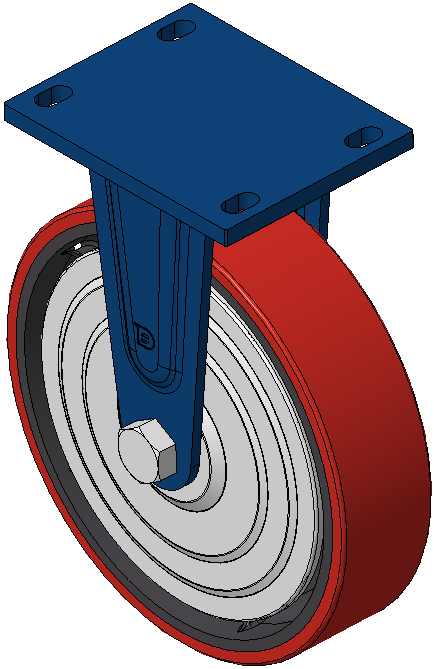

1102 B Type Caster Series
　　PU (red flat) Wheel Diameter x Wheel Width 254x 62mm
　　EAN
　　　　　 KS-11021000331011
　　　　　 　　　
Rigid Caster with Welded Caster Fork and blue paint finish.
Mounting Type - Top Plate, 140x85 Bolt Hole Spacing.
Cast Iron Wheel Center with High Quality Polyurethane Wheel Tread, Cast Iron red.
Bearings—Ball Bearings.
　　Wheel tread: high-quality polyurethane wheel tread
　　Wheel Center: iron core/cast iron core

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 254mm　

　　Wheel Width 62mm　
　　Wheel Bearing Wheels With Ball Bearings

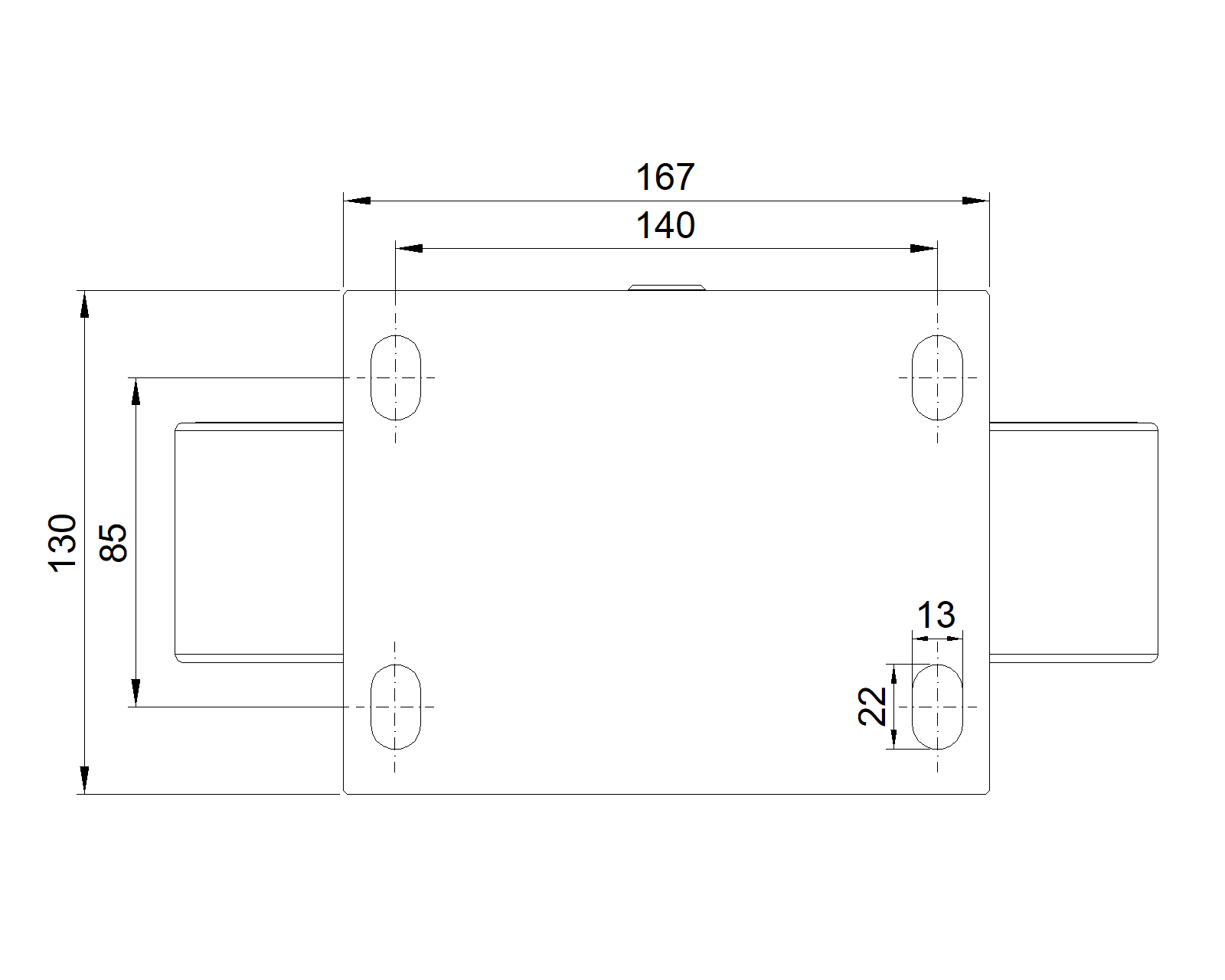

　　Plate Size 167 x 130mm　
　　Bolt Hole Spacing 140x85mm　
　　Plate Hole 22 x 13mm　
　　Overall Height 307mm　
　　Hardness Of Tread 93±5° Shore A　
　　Load Capacity (Dynamic) 600kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 900kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 9.77kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2026 DershengInternational www.dersheng.com
Related　　Products　　

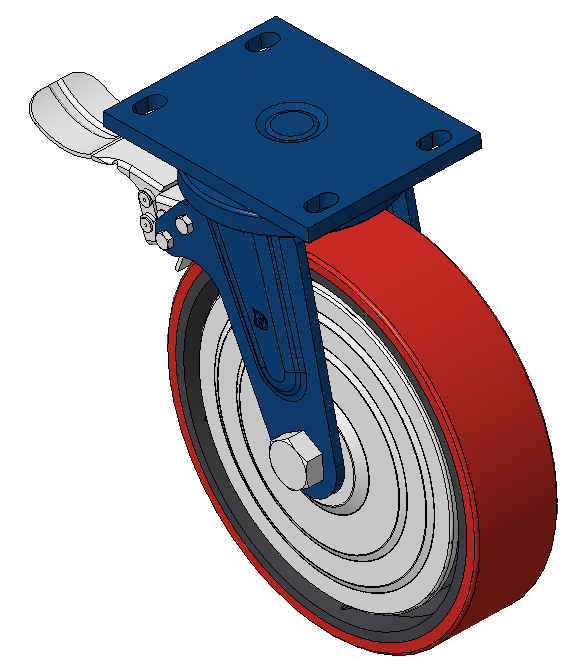

1102 B Type Caster Series
PU (red flat) Wheel Diameter x Wheel Width 254x 62mm
KS-11021000334011
254 mm 600 Kgs 307 mm
Casters with rear brake and With locking system, Welded Caster Fork Blue-painted finish, Mounting Type - Top Plate, 140x85 Bolt Hole Spacing Cast Iron Wheel Center, High Quality Polyurethane Wheel Tread, Cast Iron red Bearings—Ball Bearings

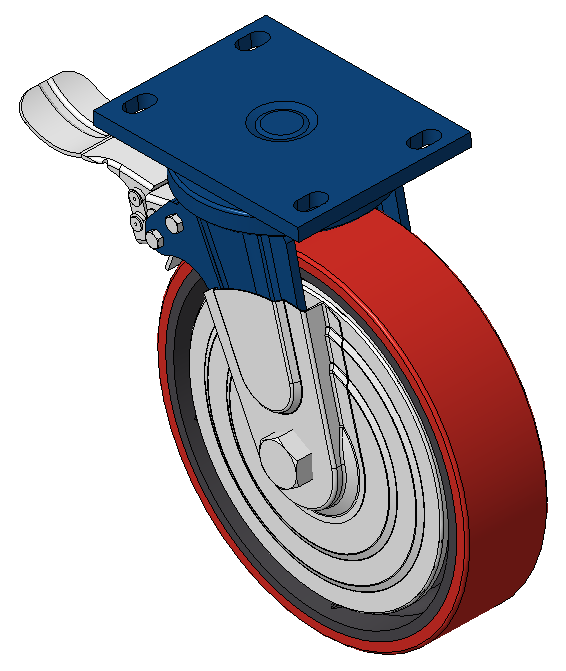

1102 B Type Caster Series
PU (red flat) Wheel Diameter x Wheel Width 254x 62mm
KS-11021000334021
254 mm 600 Kgs 307 mm
Casters with rear brake and With locking system, Welded Caster Fork Blue-painted finish, Mounting Type - Top Plate, 140x85 Bolt Hole Spacing Cast Iron Wheel Center, High Quality Polyurethane Wheel Tread, Cast Iron red Bearings—Ball Bearings with special Anti-thread wheel cover

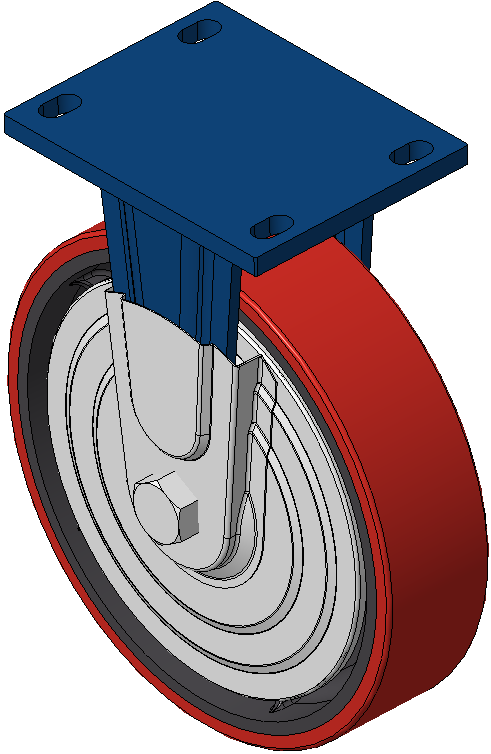

1102 B Type Caster Series
PU (red flat) Wheel Diameter x Wheel Width 254x 62mm
KS-11021000331021
254 mm 600 Kgs 307 mm
Rigid Caster with Welded Caster Fork and blue paint finish.
Mounting Type - Top Plate, 140x85 Bolt Hole Spacing.
Cast Iron core with High Quality Polyurethane Wheel Tread, Cast Iron red.
Bearings—Ball Bearings with special Anti-thread wheel cover.
1102 B Type Caster Series
PU (red flat) Wheel Diameter x Wheel Width 254x 62mm
KS-11021000332011
254 mm 600 Kgs 307 mm
Swivel Caster with Welded Caster Fork, blue painted finish Mounting Type - Top Plate, 110x75 Bolt Hole Spacing Cast Iron Wheel Center, High Quality Polyurethane tread, Cast Iron red Bearing - Ball Bearing

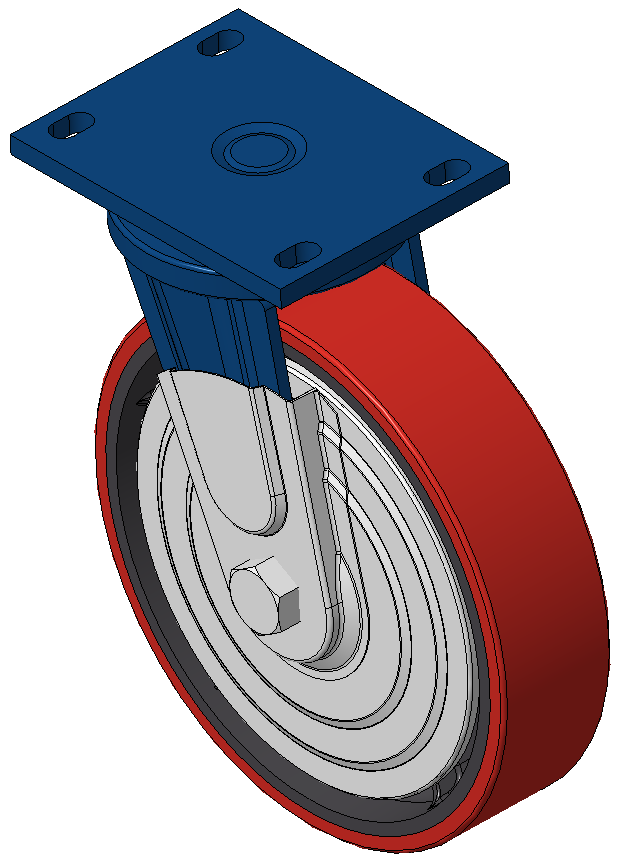

1102 B Type Caster Series
