PU wheel (red flat) wheel diameter x wheel width 254x 62mm

Picture may differ from original product

1102 B Type Caster Series

PU wheel (red flat) wheel diameter x wheel width 254x 62mm

KS-11021000332021

Wheel Diameter254mm　10-1/16＂

Load Capacity (Dynamic)600kgs　1323lbs

Overall Height307mm　12-3/16＂

Wheel BearingWheels With Ball Bearings

Swivel Caster with Welded Caster Fork, blue paint finish.
Mounting Type - Top Plate, 140x85 Bolt Hole Spacing.
Cast Iron Wheel Center, High Quality Polyurethane tread, Cast Iron red.
Bearing—Ball Bearing with special anti-wrap caps.
Wheel tread: Made of high-quality polyurethane
Wheel Center: iron core/cast iron core

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet 3D Drawing Request

3D drawings are for members only. Please log in to download.

Product Data Sheet

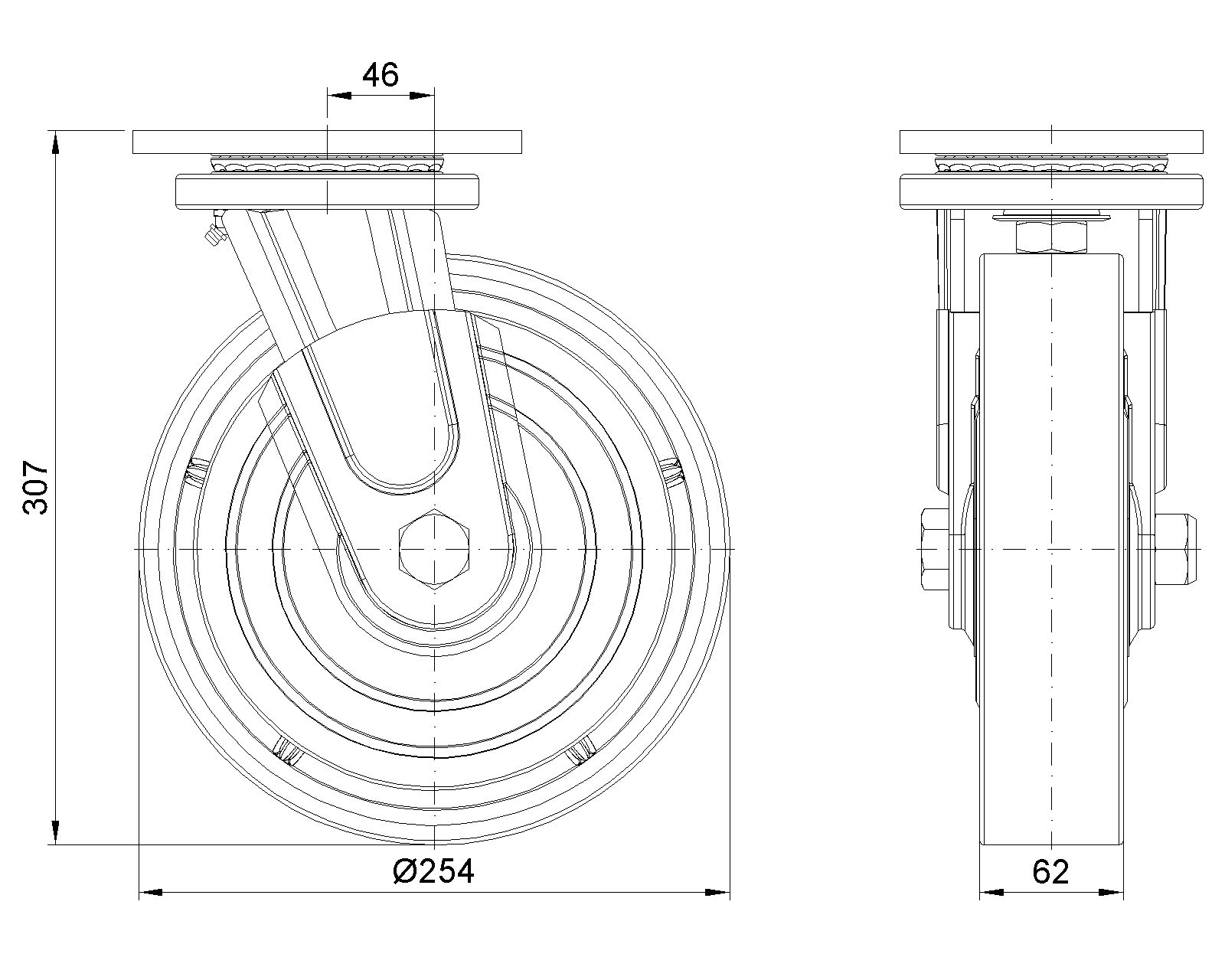

Wheel Diameter: 254mm10-1/16＂
Wheel Width: 62mm2-1/2＂
Wheel Bearing: Wheels With Ball Bearings

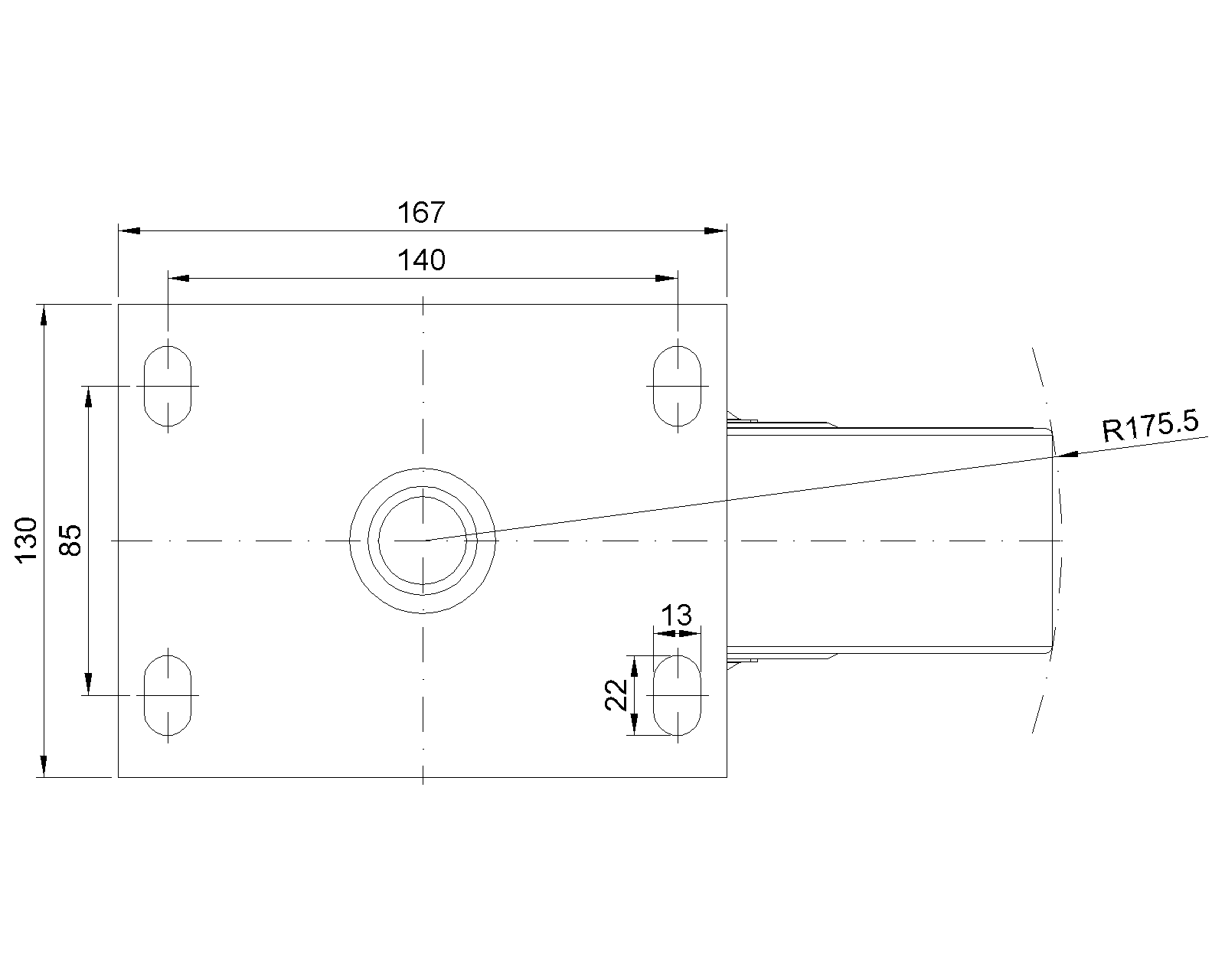

Plate Size: 167 x 130mm6-5/8＂ x 5-3/16＂
Bolt Hole Spacing: 140x85mm5-1/2＂x3-3/8＂
Plate Hole: 22 x 13mm7/8＂ x 9/16＂
Offset: 46mm1-7/8＂
Swivel Interference: 351mm14＂
Overall Height: 307mm12-3/16＂
Swivel Radius: 175.5mm7＂
Hardness Of Tread: 93±5° Shore A
Load Capacity (Dynamic): 600kgs1323lbs
Load Capacity (Static): 900kgs1984lbs
Temperature: -20°C to +70°C-4°F to +158°F
Fork Type: Swivel Caster
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 11.48kgs25.3lbs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.

Performance

Rolling SmoothnessMax. 5 pointsScore: 3

Quiet OperationMax. 5 pointsScore: 4

Floor Surface PreservationMax. 5 pointsScore: 4
