    Product Data Sheet
1109 Medium Duty/Low Profile Business Machine Caster Series
　　ZQPU Wheel Diameter × Wheel Width 63 x 20mm
　　EAN
　　TW-4110902054019 　　　
　　　　　 　　　

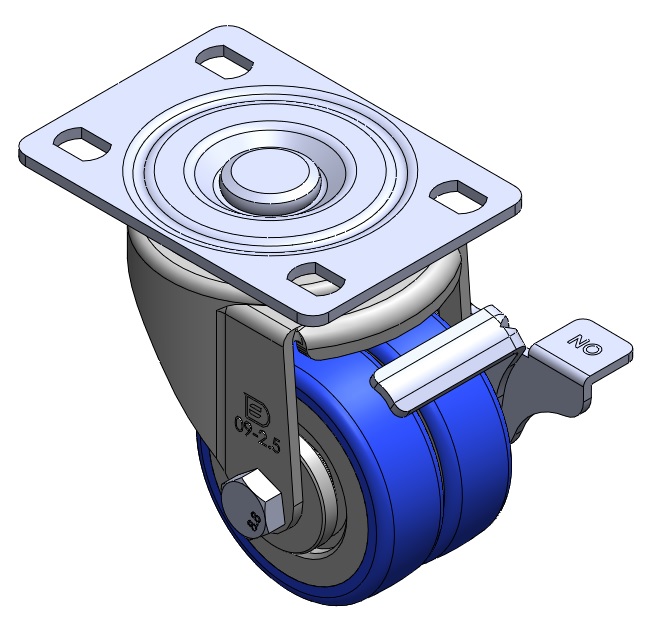

Equipped with Side Brakes and a With locking system for the Casters. Riveted and Stamping Top Plate legs with high-grade perforations. Zine-Plated surface, Mounting Type - Top Plate. Cast Iron Wheel Center, High Quality Polyurethane Wheel Tread. Blue Bearing—Ball Bearings.
　　Wheel surface: High-quality polyurethane
　　Wheel Center: Iron core / Cast iron core

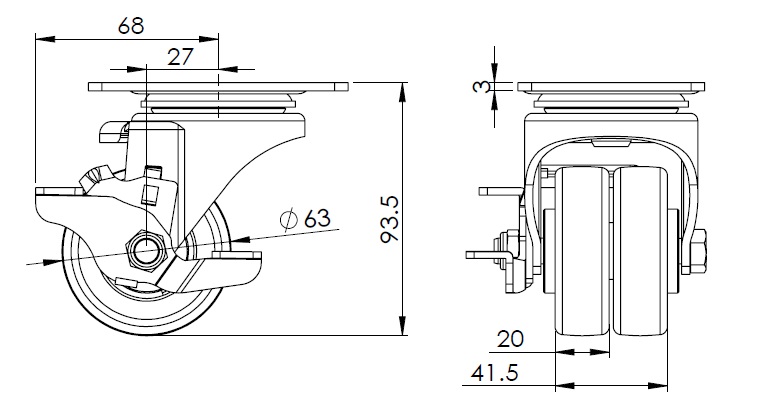

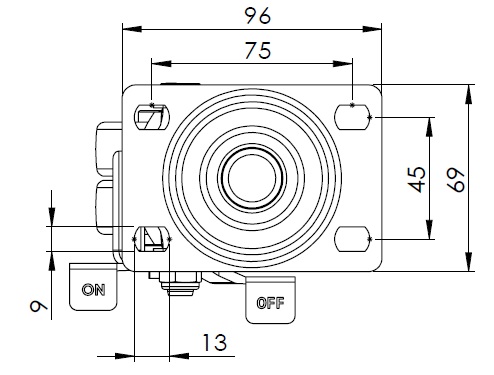

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 63mm　

　　Wheel Width 20mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 96 x 69mm　
　　Bolt Hole Spacing 75 x 45mm　
　　Plate Hole 13 x 9mm　
　　Offset 27mm　
　　Swivel Interference 136mm　
　　Overall Height 93.5mm　
　　Swivel Radius 68mm　
　　Hardness Of Tread 87±5° Shore A　
　　Load Capacity (Dynamic) 300kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 450kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster With Side Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.75kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2026 DershengInternational www.dersheng.com
Related　　Products　　

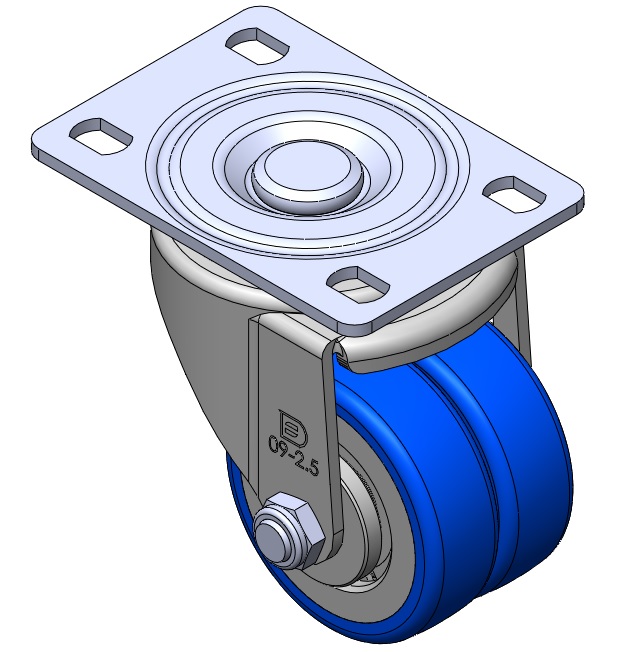

1109 Medium Duty/Low Profile Business Machine Caster Series
