ZQPU Wheel Diameter × Wheel Width 63 x 20mm

Picture may differ from original product

1109 Medium Duty/Low Profile Business Machine Caster Series

ZQPU Wheel Diameter × Wheel Width 63 x 20mm

TW-4110902052025

Wheel Diameter63mm　2-1/2＂

Load Capacity (Dynamic)300kgs　661lbs

Overall Height93.5mm　3-3/4＂

Wheel BearingWheels With Ball Bearings

Portable Casters, Riveted and Stamping Top Plate—high-grade perforated design
Zine-Plated surface, Mounting Type - Top Plate device
Cast Iron Wheel Center, High Quality Polyurethane Wheel Tread
Blue color, Bearing—Ball Bearings.
Wheel surface: High-quality polyurethane
Wheel Center: Iron core/Cast iron core

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet (Metric) Product Data Sheet (Imperial) 3D Drawing Request

3D drawings are for members only. Please log in to download.

Product Data Sheet

Wheel Diameter: 63mm2-1/2＂
Wheel Width: 20mm13/16＂
Wheel Bearing: Wheels With Ball Bearings

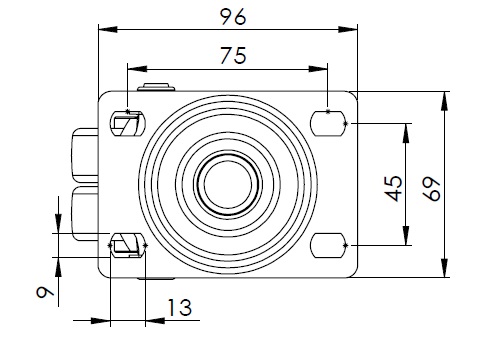

Plate Size: 96 x 69mm3-7/8＂ x 2-3/4＂
Bolt Hole Spacing: 75 x 45mm3＂x 1-13/16＂
Plate Hole: 13 x 9mm9/16＂ x 23/64＂
Offset: 27mm1-1/16＂
Swivel Interference: 116mm4-5/8＂
Overall Height: 93.5mm3-3/4＂
Swivel Radius: 58mm2-5/16＂
Hardness Of Tread: 87±5° Shore A
Load Capacity (Dynamic): 300kgs661lbs
Load Capacity (Static): 450kgs992lbs
Temperature: -20°C to +70°C-4°F to +158°F
Fork Type: Swivel Caster
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 0.75kgs1.7lbs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.

Performance

Rolling SmoothnessMax. 5 pointsScore: 5

Quiet OperationMax. 5 pointsScore: 5

Floor Surface PreservationMax. 5 pointsScore: 5
