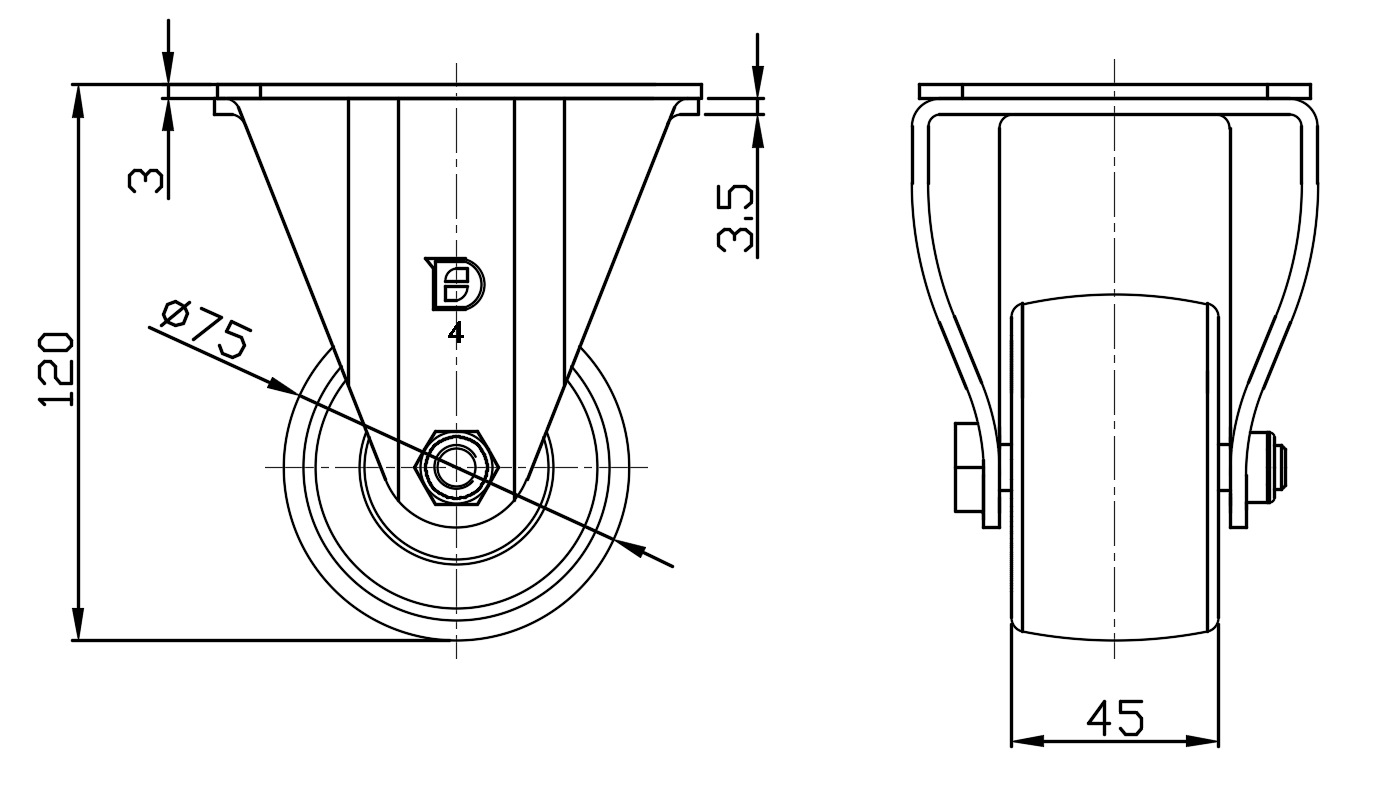

QPU (brown round) Wheel Diameter × Wheel Width 75 × 45mm

YJ-11680300531013

Wheel Diameter75mm　

Load Capacity (Dynamic)300kgs　

Overall Height120mm　

Wheel BearingWheels With Ball Bearings

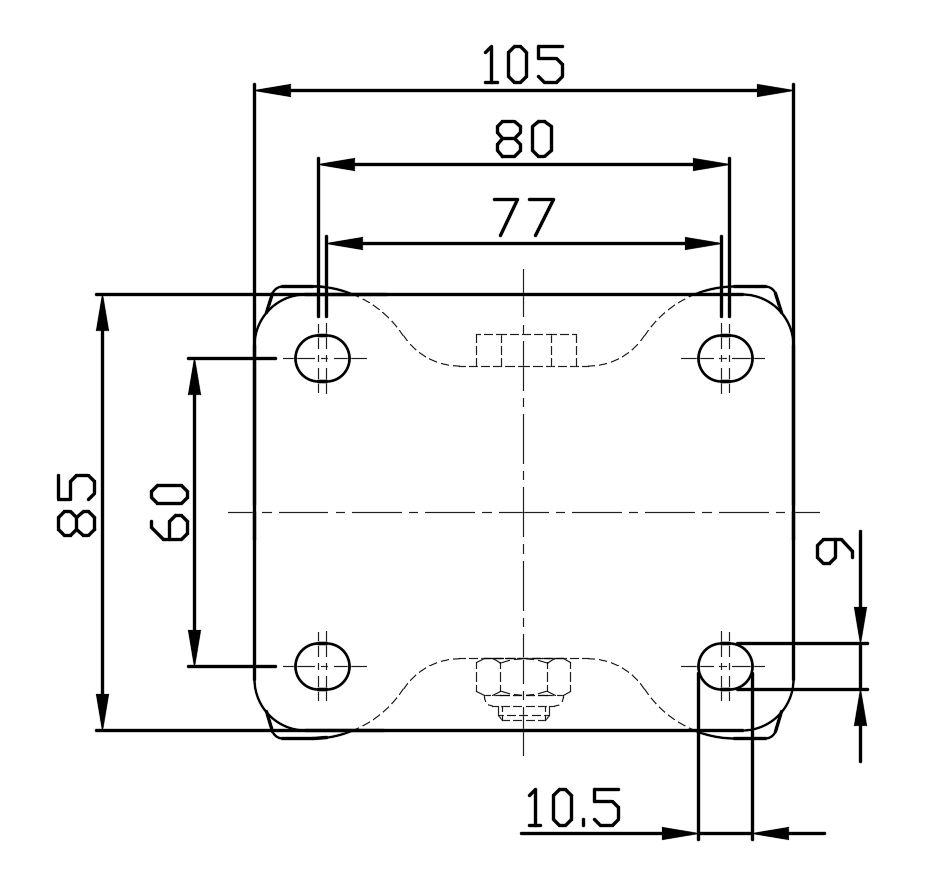

Rigid Caster with Stamping Fabricated Caster Fork 44.5 x 30mm (1-3/4" x 1-1/8") Bolt Hole Spacing.
Zine-Plated, Mounting Type - Top Plate.
Cast Iron Wheel Center with High Quality Polyurethane tread.
Brown color, Bearing with Ball Bearing.
Wheel Tread: high quality polyurethane
Wheel Center: cast iron core

Product descriptions are for reference only. The actual product shall prevail.

3D drawings are for members only. Please log in to download.

Product Data Sheet

* For any deviation between metric and imperial spec, please refer to the metric spec.

Rolling Resistance

Operating Noise　

Floor Surface Preservation
