QPU Wheel (Brown Arc) Wheel Diameter × Wheel Width 75 × 45mm

Picture may differ from original product

1168 Levelling Caster Series

QPU Wheel (Brown Arc) Wheel Diameter × Wheel Width 75 × 45mm

YJ-11680300532053

Wheel Diameter75mm　

Load Capacity (Dynamic)300kgs　

Overall Height120mm　

Wheel BearingWheels With Ball Bearings

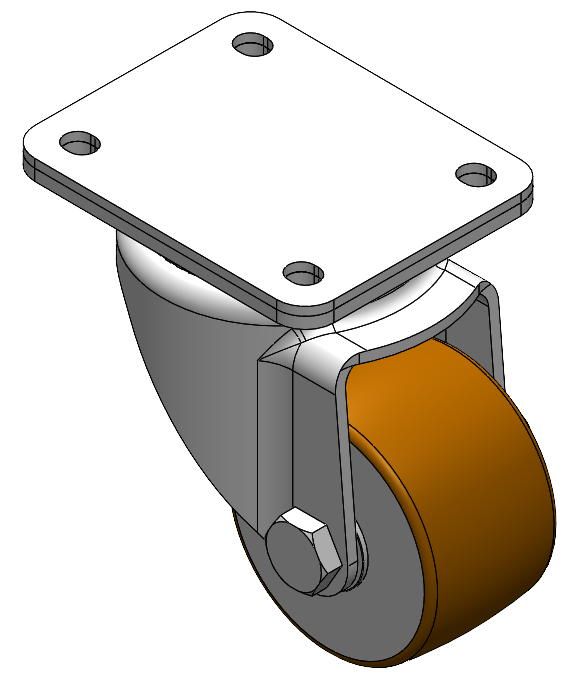

Swivel Caster with Riveted Fork and Stamping bracket - European standard holes
Zine-Plated, Mounting Type - Top Plate
Cast Iron Wheel Center, High Quality Polyurethane tread
Brown, Bearing - Ball Bearing.
Wheel Tread: high quality polyurethane
Wheel Center: cast iron core

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet 3D Drawing Request

3D drawings are for members only. Please log in to download.

Product Data Sheet

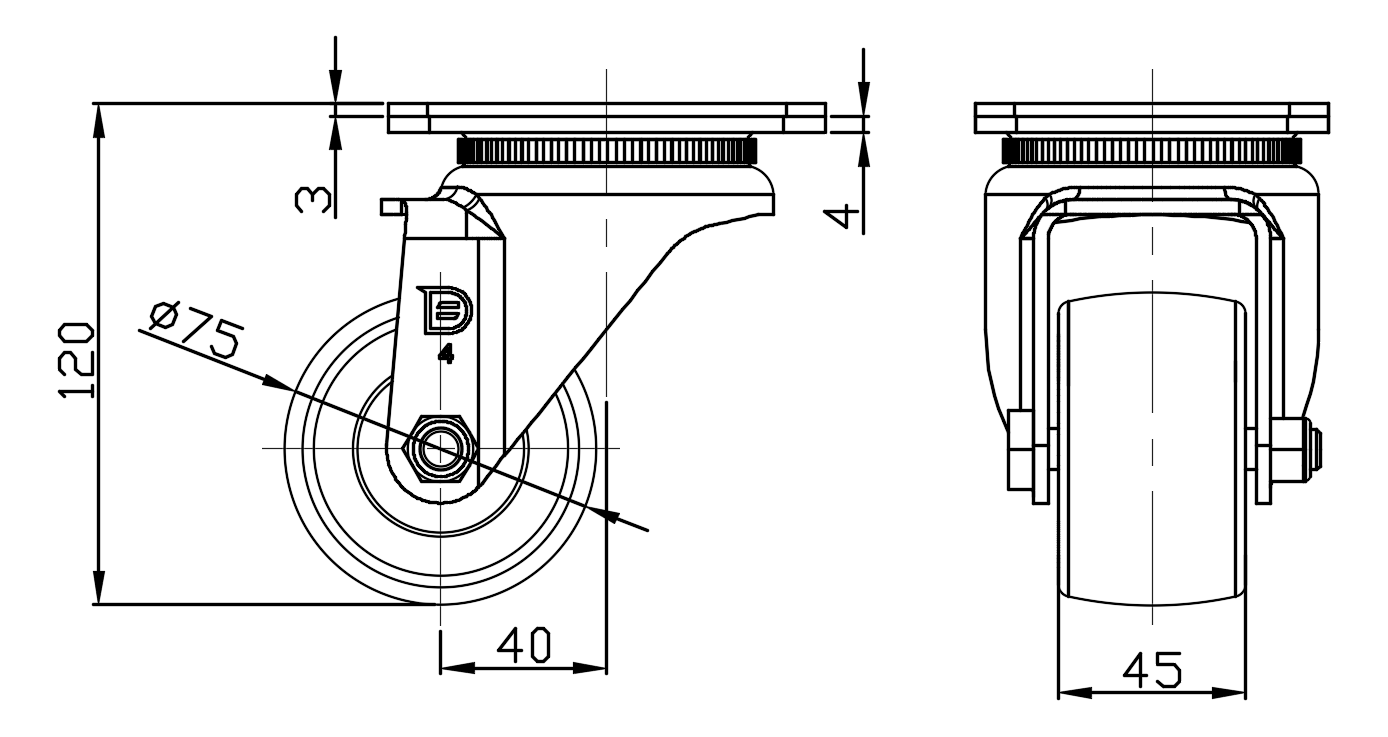

Wheel Diameter: 75mm
Wheel Width: 45mm
Wheel Bearing: Wheels With Ball Bearings

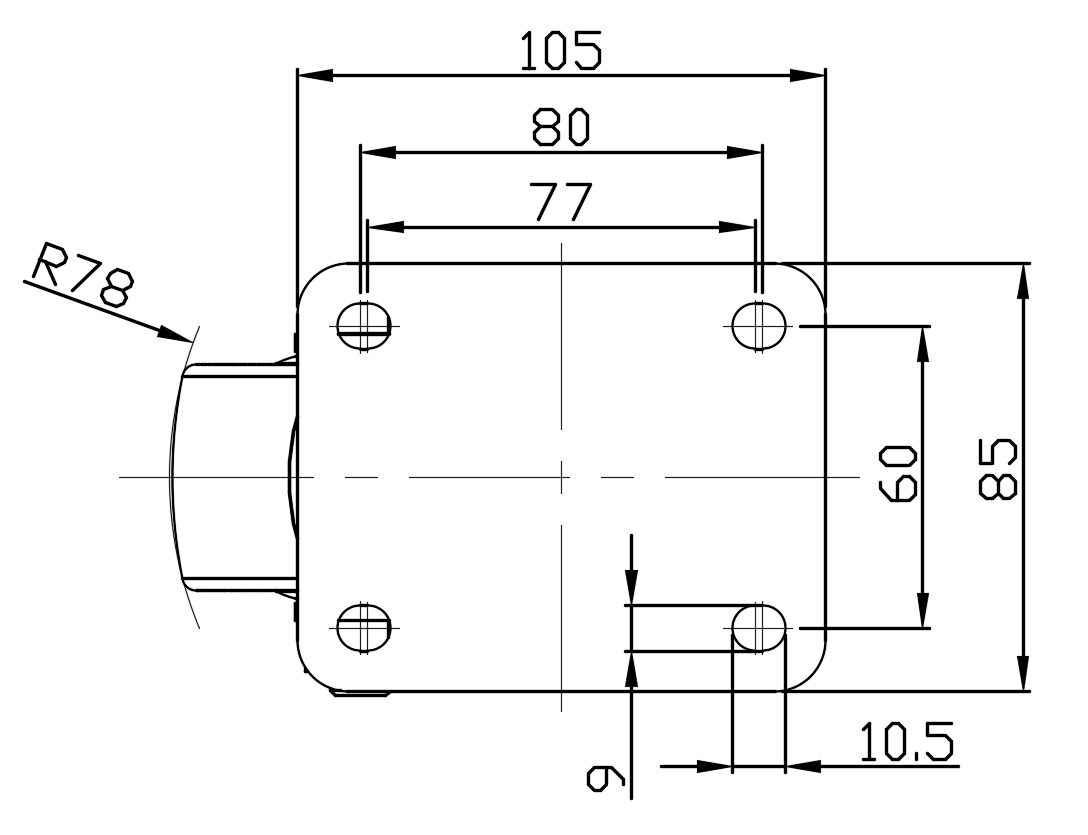

Plate Size: 105 x 85mm
Bolt Hole Spacing: 80 x 60mm
Plate Hole: 10.5 x 9mm
Offset: 40mm
Swivel Interference: 156mm
Overall Height: 120mm
Swivel Radius: 78mm
Hardness Of Tread: 92±5° Shore A
Load Capacity (Dynamic): 300kgs
Load Capacity (Static): 450kgs
Temperature: -20°C to +70°C
Fork Type: Swivel Caster
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 1.72kgs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.
