QPU (brown round) Wheel Diameter × Wheel Width 75 × 45mm

Picture may differ from original product

1168 Levelling Caster Series

QPU (brown round) Wheel Diameter × Wheel Width 75 × 45mm

YJ-11680300532073

Wheel Diameter75mm　

Load Capacity (Dynamic)220kgs　

Overall Height120mm　

Wheel BearingWheels With Ball Bearings

Swivel Caster with Riveted Fork and Stamping bracket—European standard holes.
Zine-Plated, Mounting Type - Top Plate, Height Adjustable Stand.
Cast Iron Wheel Center, High Quality Polyurethane tread.
Brown color, Bearing—Ball Bearing.
Wheel Tread: high quality polyurethane
Wheel Center: cast iron core

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet 3D Drawing Request

3D drawings are for members only. Please log in to download.

Product Data Sheet

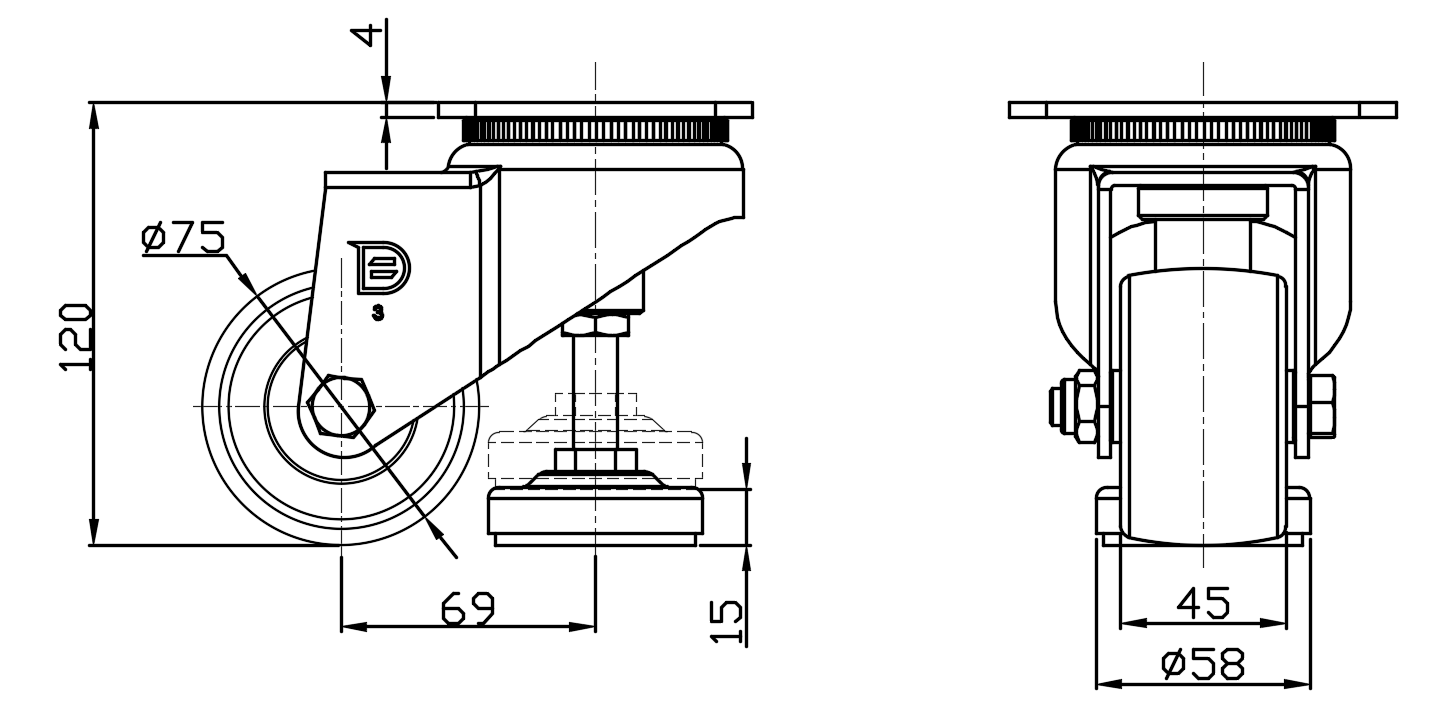

Wheel Diameter: 75mm
Wheel Width: 45mm
Wheel Bearing: Wheels With Ball Bearings

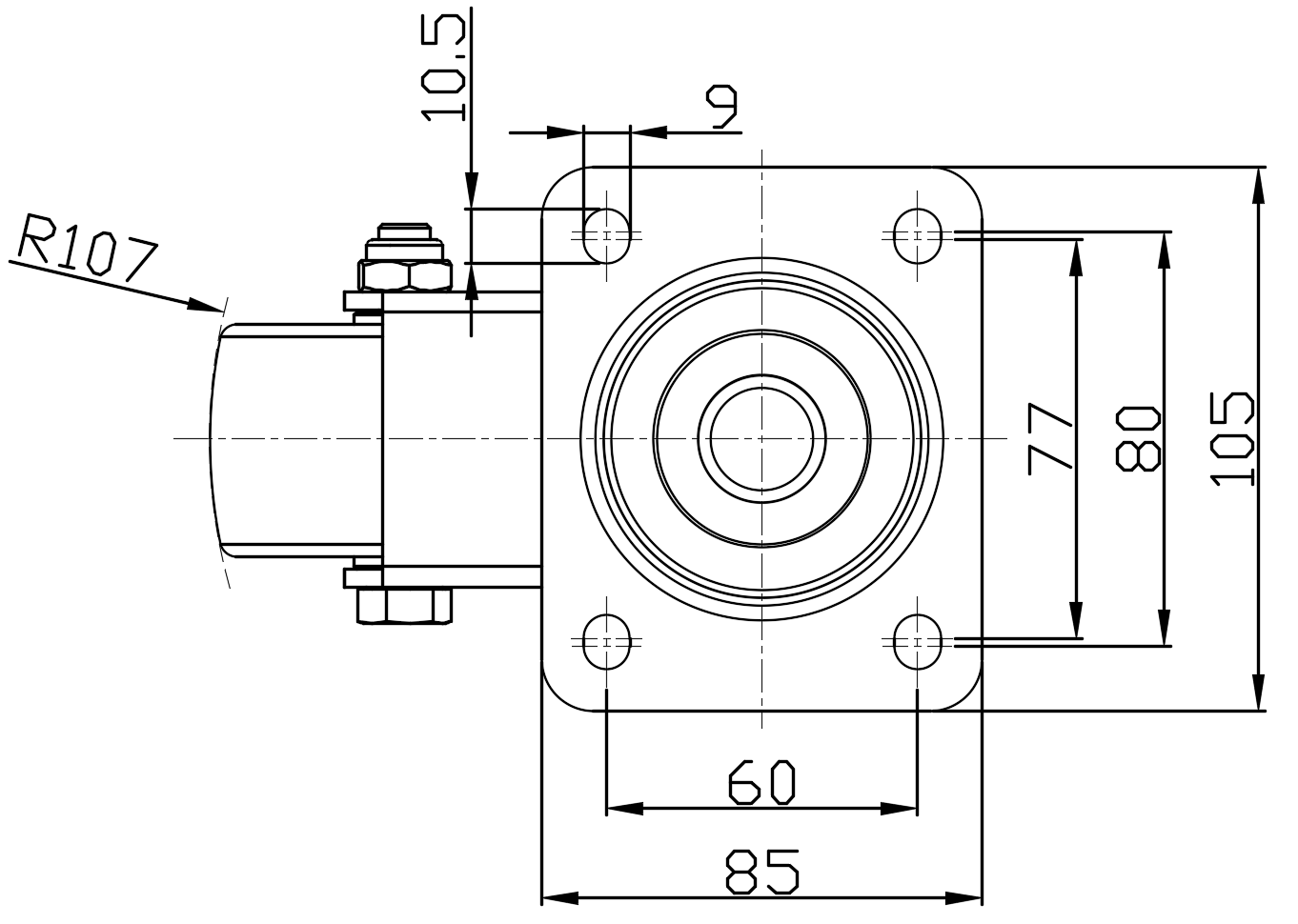

Plate Size: 105 x 85mm
Bolt Hole Spacing: 80 x 60mm
Plate Hole: 10.5 x 9mm
Offset: 69mm
Swivel Interference: 214mm
Overall Height: 120mm
Swivel Radius: 107mm
Hardness Of Tread: 92±5° Shore A
Load Capacity (Dynamic): 220kgs
Load Capacity (Static): 1000kgs
Temperature: -20°C to +70°C
Fork Type: Swivel Caster
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 1.97kgs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.

Performance

Rolling Resistance

Operating Noise　

Floor Surface Preservation
