    Product Data Sheet
1168 Levelling Caster Series
　　ZQPU (milling blue) Wheel Diameter × Wheel Width 75×20 (41.5) mm
　　EAN
　　　　　 　　　
　　YJ-11680300802063 　　　

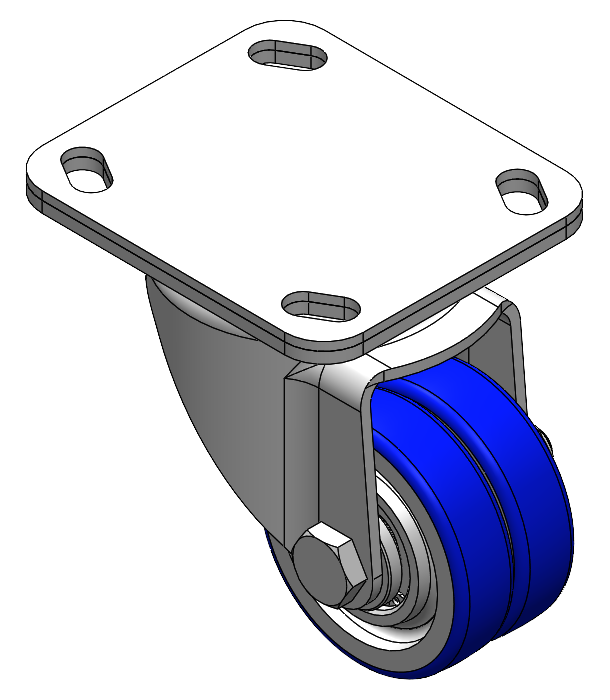

Swivel Caster with Riveted Fork and Stamping Fork with 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing. Zine-Plated, Mounting Type - Top Plate. Cast Iron Wheel Center with High Quality Polyurethane tread. Blue color. Bearing: Ball Bearing.
　　Wheel Tread: high quality polyurethane
　　Wheel Center: cast iron core

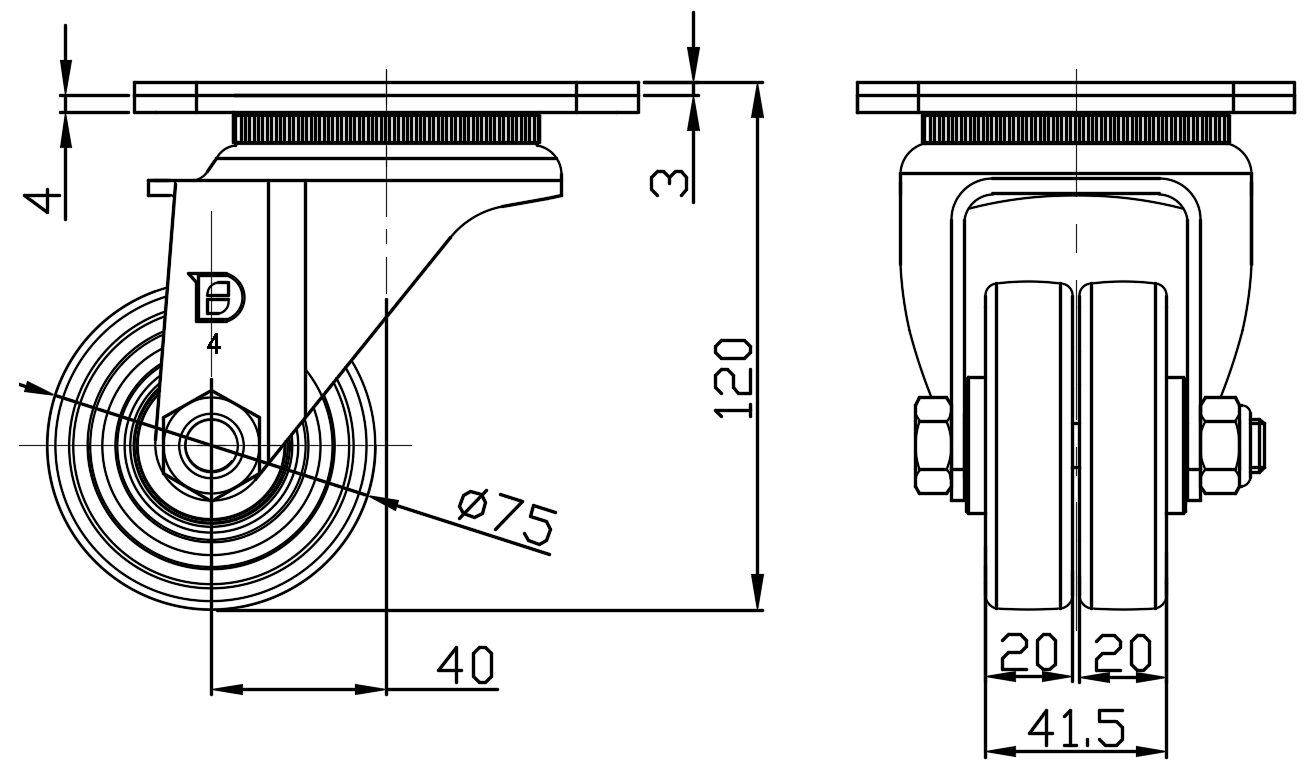

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　

　　Wheel Width 41.5mm　
　　Wheel Bearing Wheels With Ball Bearings

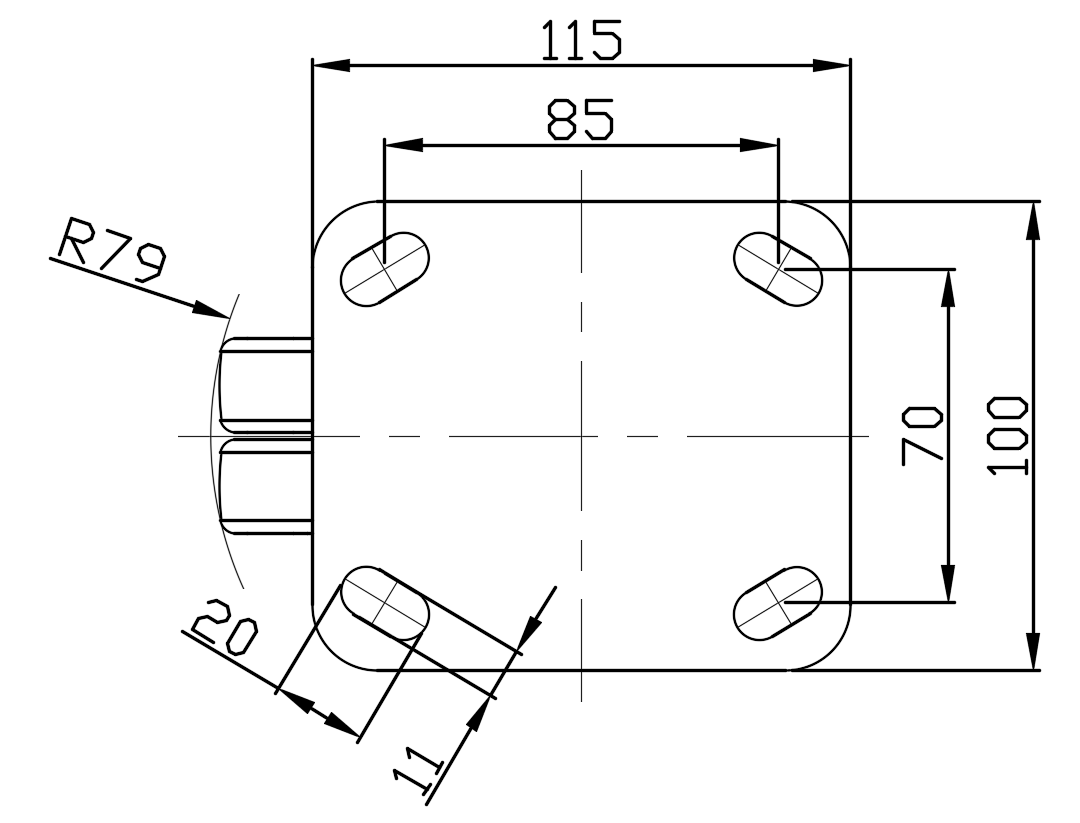

　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 40mm　
　　Swivel Interference 156mm　
　　Overall Height 120mm　
　　Swivel Radius 78mm　
　　Hardness Of Tread 87±5° Shore A　
　　Load Capacity (Dynamic) 300kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 450kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.86kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1168 Levelling Caster Series
ZQPU (milling blue) Wheel Diameter × Wheel Width 75×20 (41.5) mm
YJ-11680300801023
75 mm 300 Kgs 120 mm

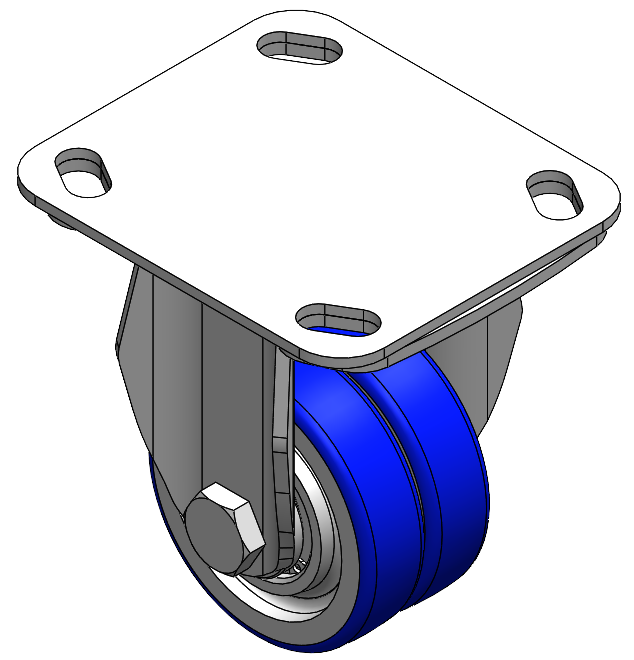

Rigid Caster with integral Stamping Fork and 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing. Zine-Plated, Mounting Type - Top Plate. Cast Iron Wheel Center with High Quality Polyurethane tread. Blue color. Bearing: Ball Bearing.
1168 Levelling Caster Series
ZQPU (milling blue) Wheel Diameter × Wheel Width 75×20 (41.5) mm
YJ-11680300802083
75 mm 220 Kgs 120 mm

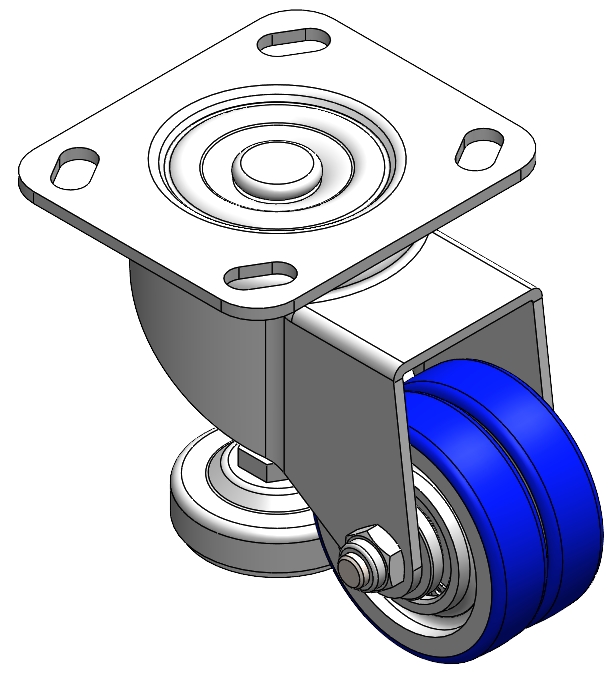

Swivel Caster with Riveted Fork and Stamping Fork with D-shaped hole. Zine-Plated, Fork-mounted Mounting Type with Height Adjustable Stand. Cast Iron Wheel Center with High Quality Polyurethane tread. Blue color. Bearing: Ball Bearing.
1168 Levelling Caster Series
ZQPU (milling blue) Wheel Diameter × Wheel Width 75×20 (41.5) mm
YJ-11680300802033
75 mm 260 Kgs 120 mm

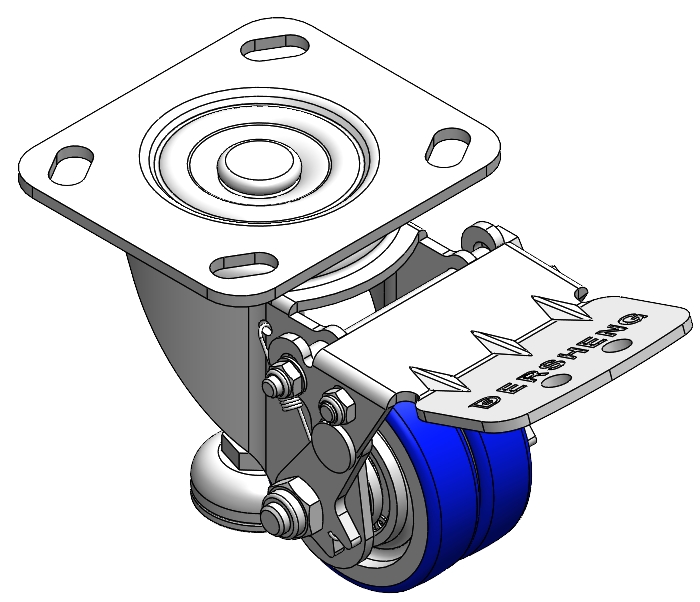

Height Adjustable Leveling Caster, Top Plate with Riveted Fork and 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacings, Long Pedal Zine-Plated, Mounting Type - Top Plate, Height Adjustable Stand Cast Iron Wheel Center with High Quality Polyurethane tread Blue color, Bearing with Ball Bearing.
1168 Levelling Caster Series
ZQPU (milling blue) Wheel Diameter × Wheel Width 75×20 (41.5) mm
YJ-11680300802043
75 mm 260 Kgs 120 mm

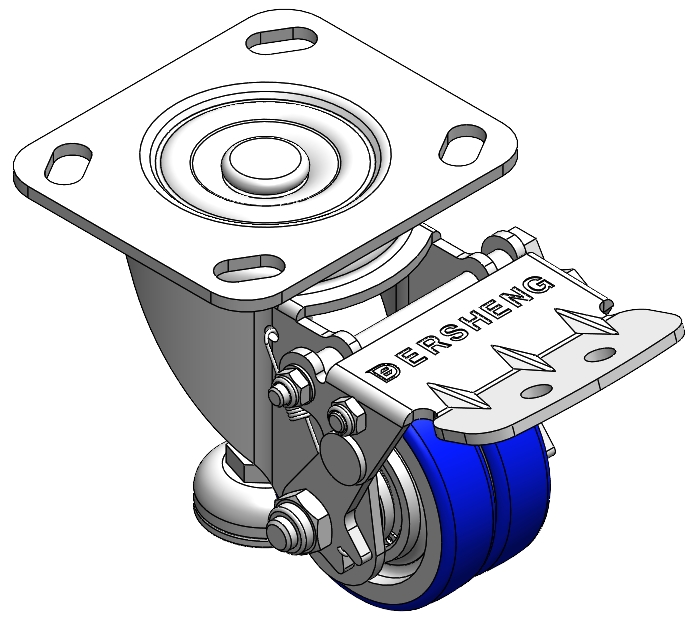

Adjustable lift Caster with Riveted, Stamping Fork and 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing, Short Pedal. Zine-Plated, Mounting Type - Top Plate, Height Adjustable Stand. Cast Iron Wheel Center with High Quality Polyurethane tread. Blue color, Bearing with Ball Bearing.
