ZQPU (milling blue) Wheel Diameter × Wheel Width 75×20 (41.5) mm

YJ-11680300802033

Wheel Diameter75mm　

Load Capacity (Dynamic)260kgs　

Overall Height120mm　

Wheel BearingWheels With Ball Bearings

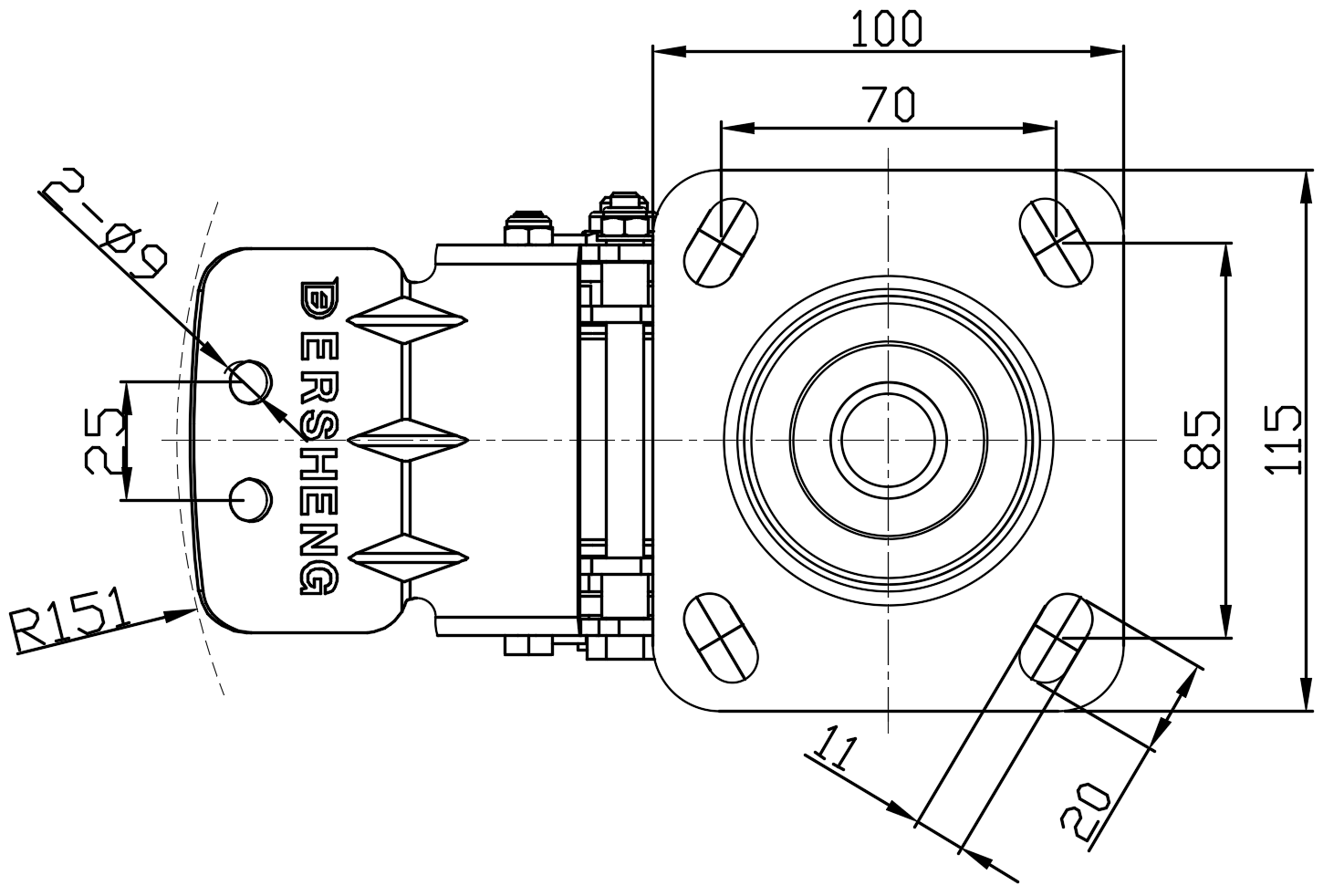

Height Adjustable Leveling Caster, Top Plate with Riveted Fork and 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacings, Long Pedal
Zine-Plated, Mounting Type - Top Plate, Height Adjustable Stand
Cast Iron Wheel Center with High Quality Polyurethane tread
Blue color, Bearing with Ball Bearing.
Wheel Tread: high quality polyurethane
Wheel Center: cast iron core

Product descriptions are for reference only. The actual product shall prevail.

3D drawings are for members only. Please log in to download.

Product Data Sheet

* For any deviation between metric and imperial spec, please refer to the metric spec.

Rolling Resistance

Operating Noise　

Floor Surface Preservation
