MRC (Transparent) Wheel Diameter × Wheel Width 100 x 32mm

Picture may differ from original product

1168 Levelling Caster Series

MRC (Transparent) Wheel Diameter × Wheel Width 100 x 32mm

YJ-11680400071023

Wheel Diameter100mm　

Load Capacity (Dynamic)320kgs　

Overall Height142.5mm　

Wheel BearingWheels With Ball Bearings

Rigid castor, Stamping Fabricated Caster Fork - D-shaped hole
Extended control lever surface, Mounting Type - Top Plate
Reinforced Polypropylene and Wheel Tread
Transparent, Bearing - Ball Bearing.
Wheel Tread: Thermoplastic (PA6)
Wheel Center: Thermoplastic (PA6)

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet 3D Drawing Request

3D drawings are for members only. Please log in to download.

Product Data Sheet

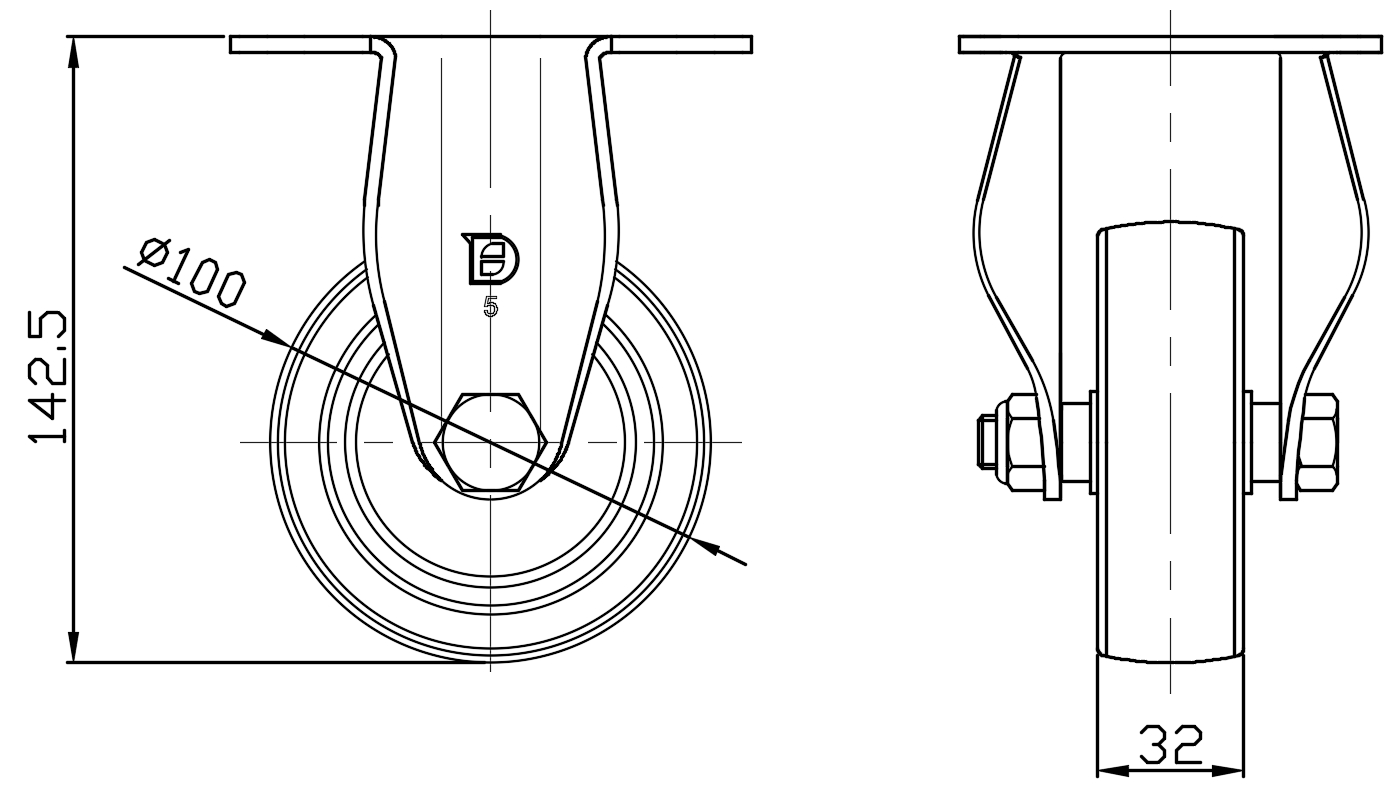

Wheel Diameter: 100mm
Wheel Width: 32mm
Wheel Bearing: Wheels With Ball Bearings

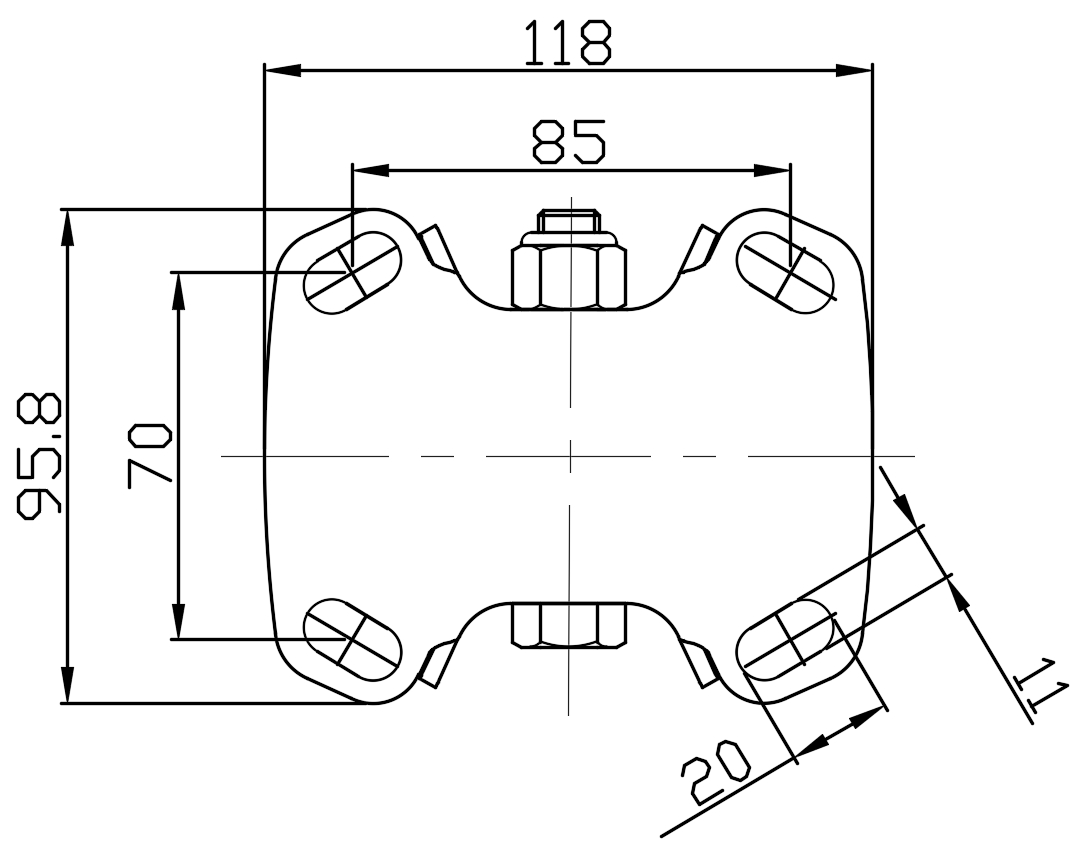

Plate Size: 118 x 95.8mm
Bolt Hole Spacing: 85 x 70mm
Plate Hole: 20 x 11mm
Overall Height: 142.5mm
Hardness Of Tread: 75±5° Shore D
Load Capacity (Dynamic): 320kgs
Load Capacity (Static): 480kgs
Temperature: -20°C to +80°C
Fork Type: Rigid Caster
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 0.84kgs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.
