    Product Data Sheet
1168 Levelling Caster Series
　　MRC (Transparent) Wheel Diameter × Wheel Width 100 x 32mm
　　EAN
　　　　　 　　　
　　YJ-11680400072113 　　　
Swivel Caster with Riveted Fork and Stamping Fork with 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing. Zine-Plated, Fork-mount Mounting Type. Thermoplastic core and tread. Natural color. Bearing: Ball Bearing.
　　Wheel Tread: Thermoplastic (PA6)
　　Wheel Center: Thermoplastic (PA6)

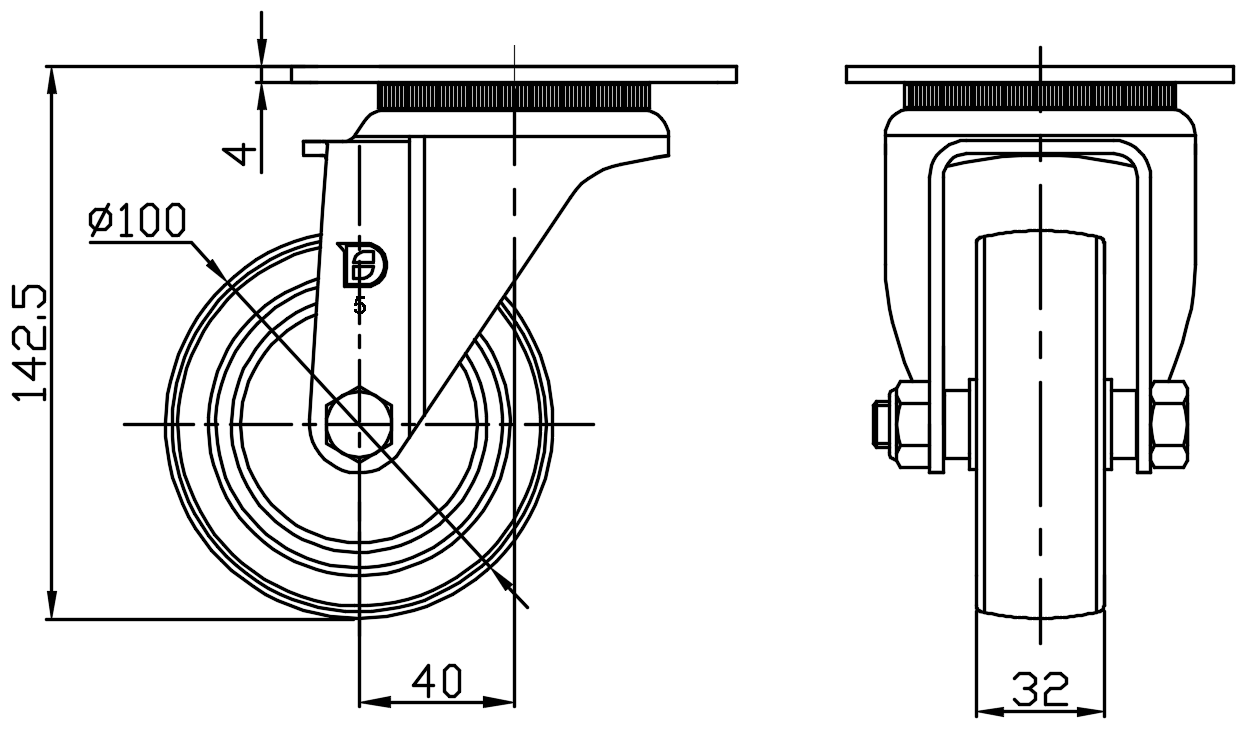

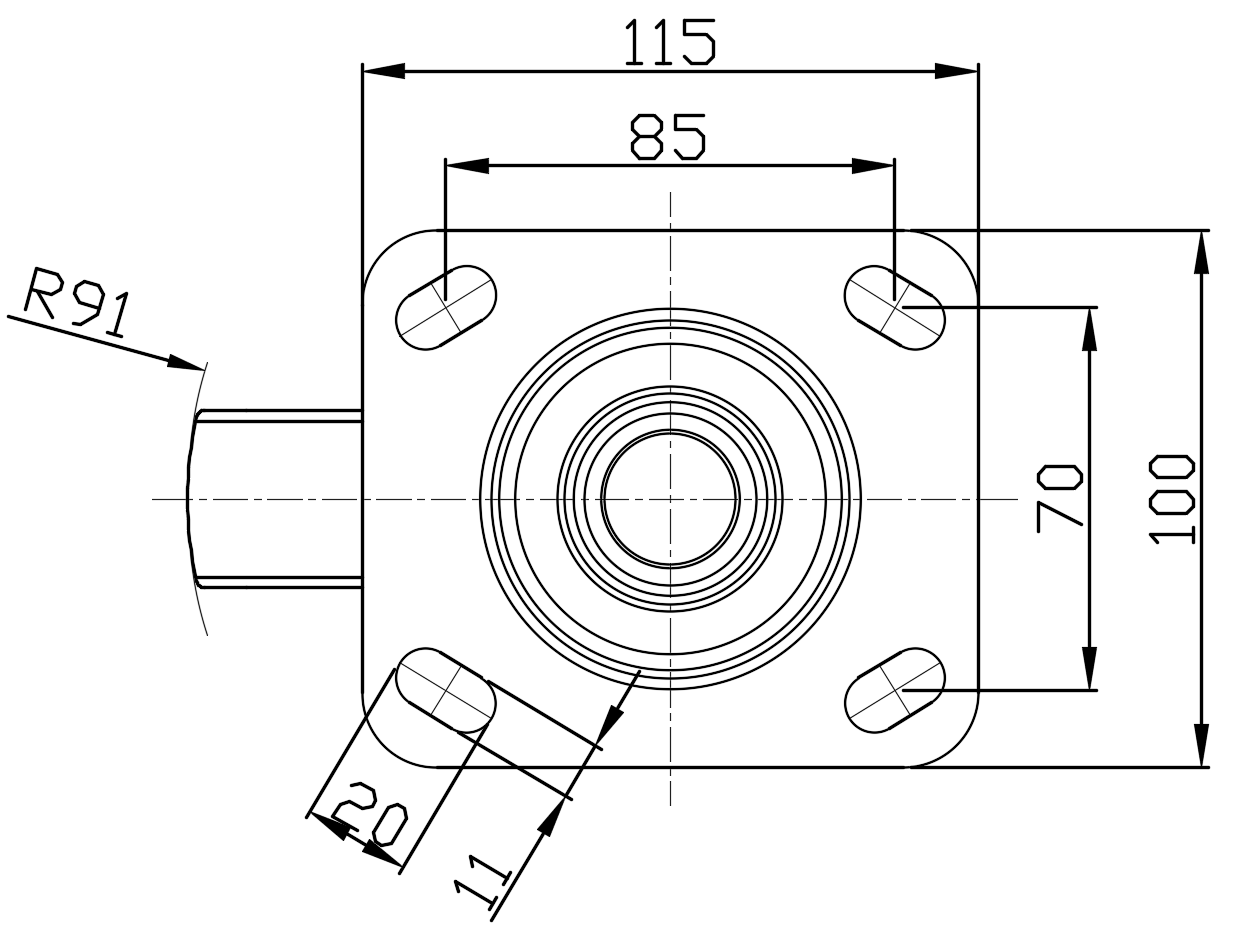

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 32mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 40mm　
　　Swivel Interference 182mm　
　　Overall Height 142.5mm　
　　Swivel Radius 91mm　
　　Hardness Of Tread 75±5° Shore D　
　　Load Capacity (Dynamic) 320kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ○ ○ ○

　　Floor Surface Preservation  ● ● ○ ○ ○
　　Load Capacity (Static) 480kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.2kgs　
　　Standard ISO22883
　　
　　
