    Product Data Sheet
1168 Levelling Caster Series
　　MRC (Transparent) Wheel Diameter × Wheel Width 100 x 32mm
　　EAN
　　　　　 　　　
　　YJ-11680400072033 　　　

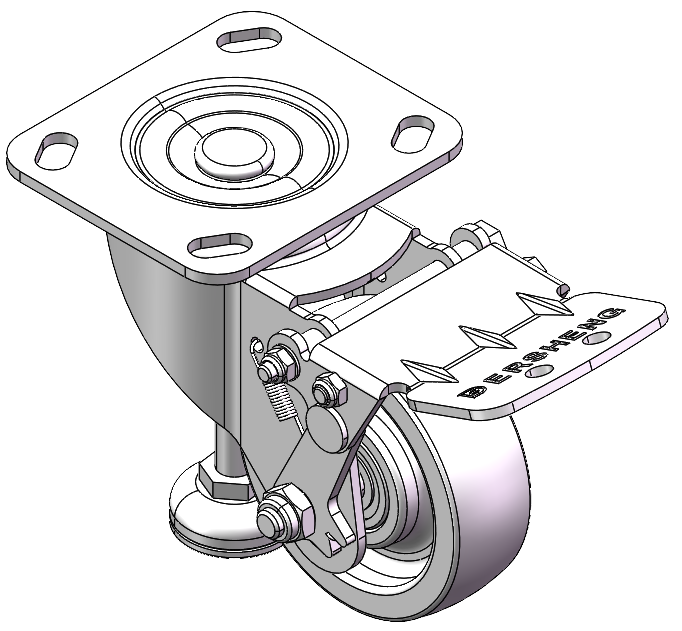

Adjustable lift Caster with Riveted Stamping Fork and 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacings, Long Pedal. Zine-Plated, Mounting Type - Top Plate, Height Adjustable Stand. Reinforced Polypropylene and tread. Natural color, Bearing—Ball Bearing.
　　Wheel Tread: Thermoplastic (PA6)
　　Wheel Center: Thermoplastic (PA6)

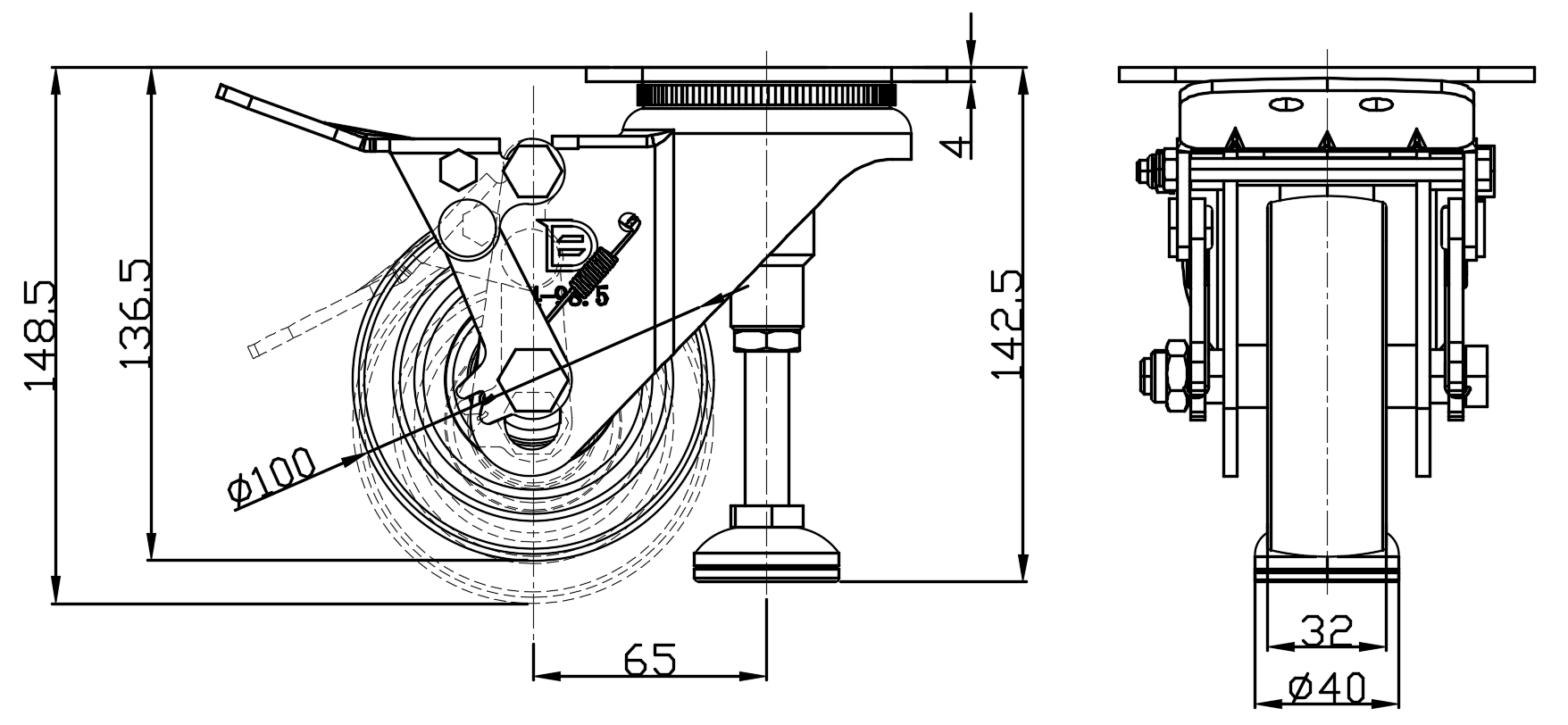

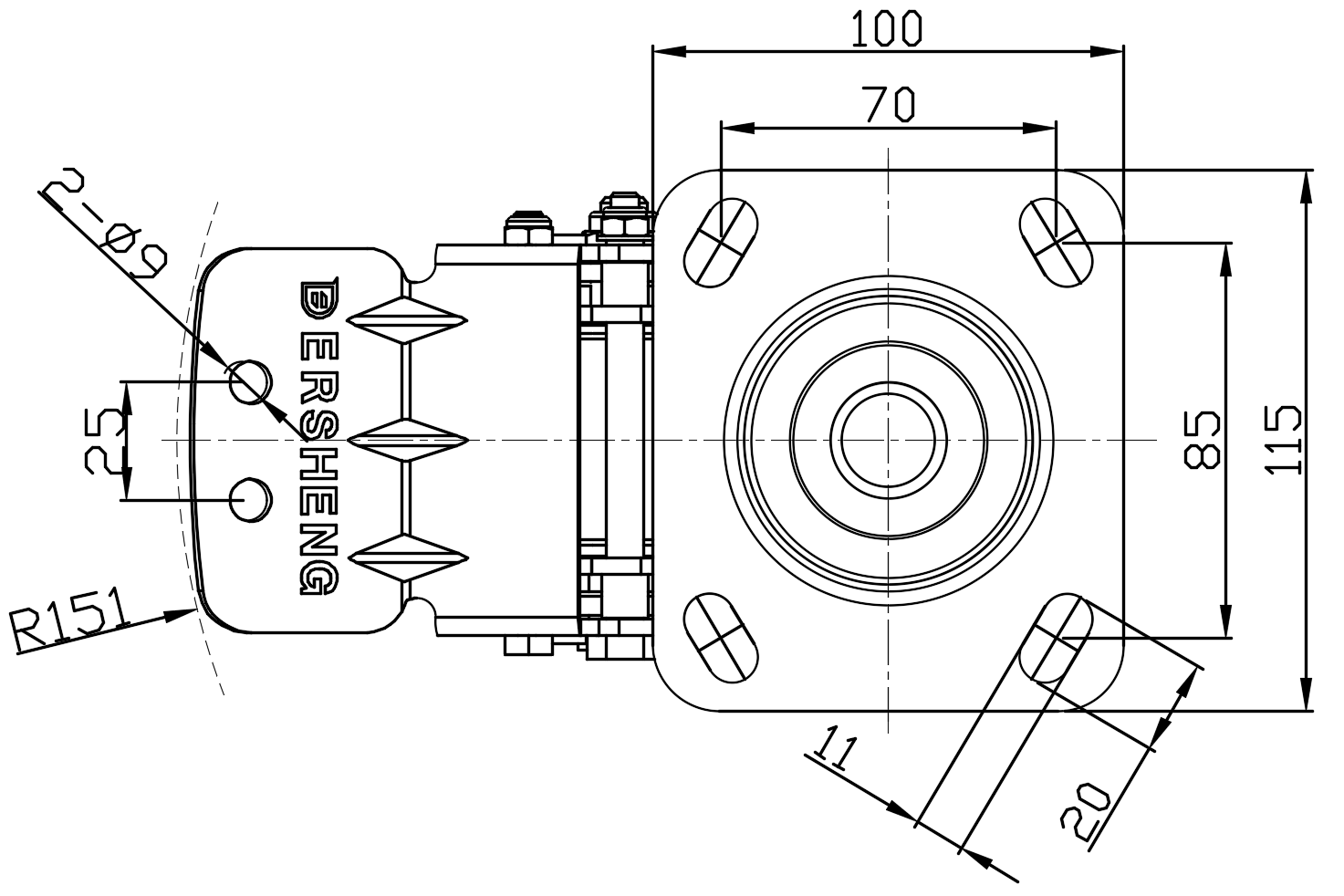

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 32mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 65mm　
　　Swivel Interference 302mm　
　　Overall Height 142.5mm　
　　Swivel Radius 151mm　
　　Hardness Of Tread 75±5° Shore D　
　　Load Capacity (Dynamic) 320kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ○ ○ ○

　　Floor Surface Preservation  ● ● ○ ○ ○
　　Load Capacity (Static) 1000kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.06kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1168 Levelling Caster Series
MRC (Transparent) Wheel Diameter × Wheel Width 100 x 32mm

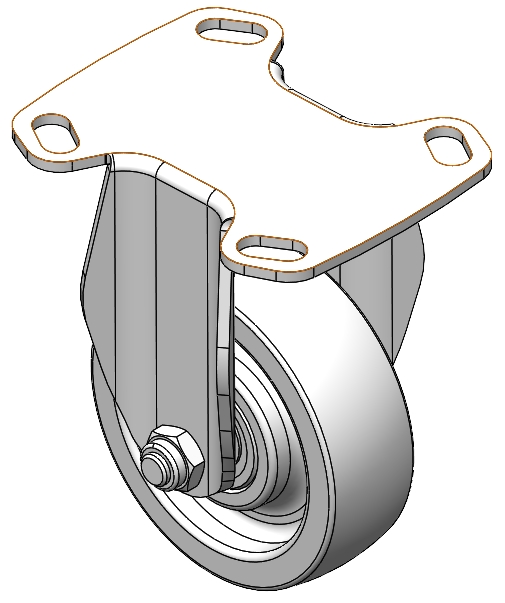

YJ-11680400071023
100 mm 320 Kgs 142.5 mm
Rigid castor, Stamping Fabricated Caster Fork - D-shaped hole Extended control lever surface, Mounting Type - Top Plate Reinforced Polypropylene and Wheel Tread Transparent, Bearing - Ball Bearing.
1168 Levelling Caster Series
MRC (Transparent) Wheel Diameter × Wheel Width 100 x 32mm

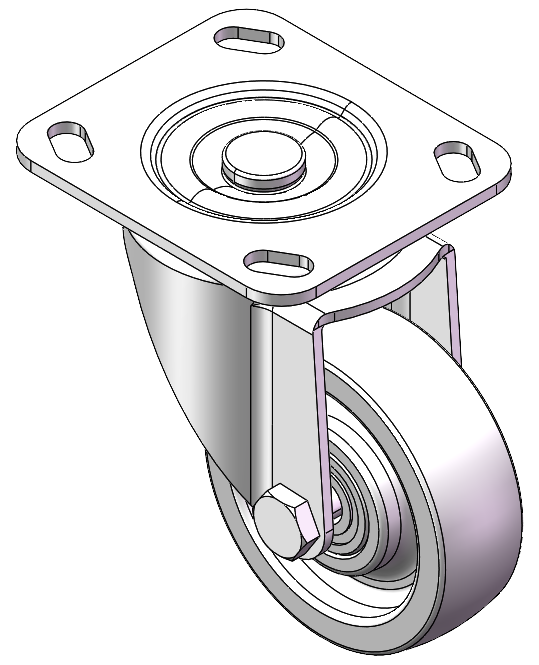

YJ-11680400072113
100 mm 320 Kgs 142.5 mm
Swivel Caster with Riveted Fork and Stamping Fork with 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing. Zine-Plated, Fork-mount Mounting Type. Thermoplastic core and tread. Natural color. Bearing: Ball Bearing.
1168 Levelling Caster Series
MRC (Transparent) Wheel Diameter × Wheel Width 100 x 32mm

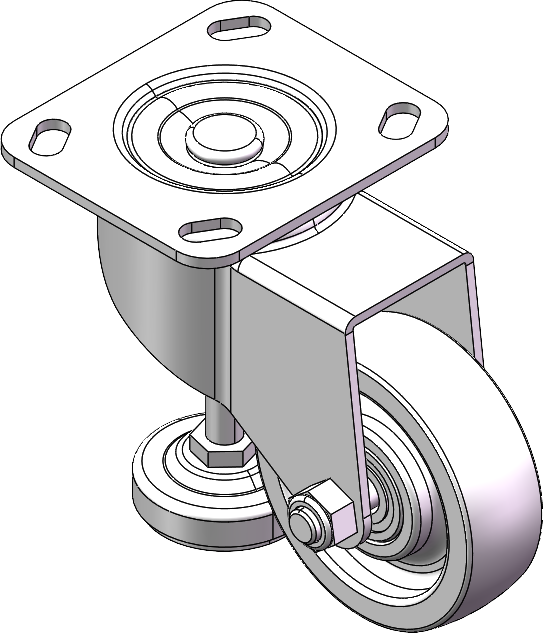

YJ-11680400072173
100 mm 250 Kgs 142.5 mm
Swivel Caster with Riveted Fork and Stamping Fork with 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing. Zine-Plated, Fork-mount Mounting Type system with Height Adjustable Stand. Reinforced Polypropylene and tread. Natural color. Bearing: Ball Bearing.
1168 Levelling Caster Series
MRC (Transparent) Wheel Diameter × Wheel Width 100 x 32mm

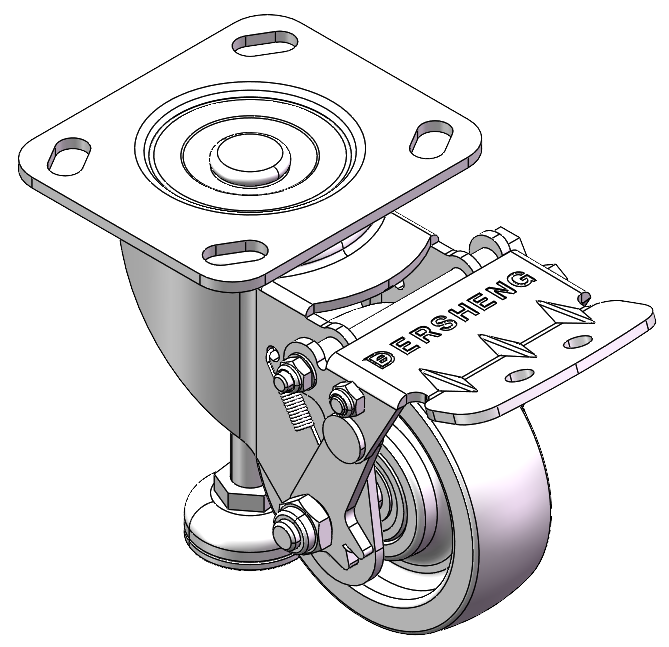

YJ-11680400072043
