    Product Data Sheet
1168 Levelling Caster Series
　　ZQPU (brown round) Wheel Diameter x Wheel Width 100 x 22 (46.5) mm
　　EAN
　　　　　 　　　

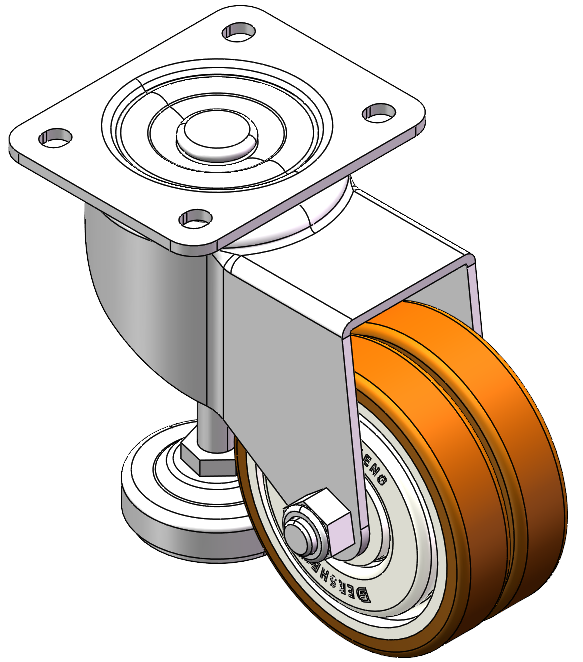

　　YJ-11680400802073 　　　
Swivel Caster with Riveted Fork and Stamping bracket—European standard holes. Zine-Plated, Mounting Type - Top Plate, Height Adjustable Stand. Cast Iron Wheel Center, High Quality Polyurethane tread. Brown color, Bearing—Ball Bearing.
　　Wheel Tread: high quality polyurethane
　　Wheel Center: cast iron core

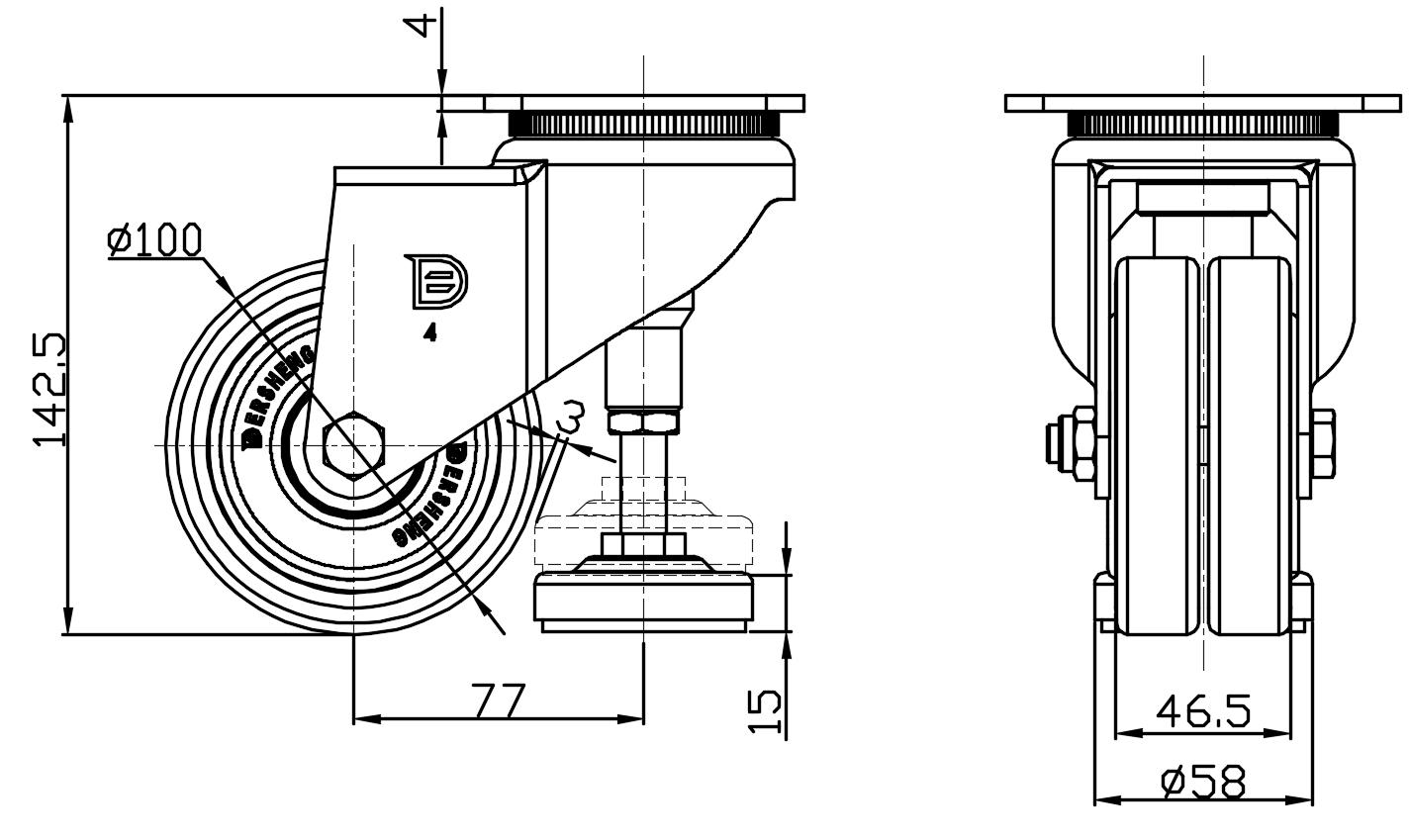

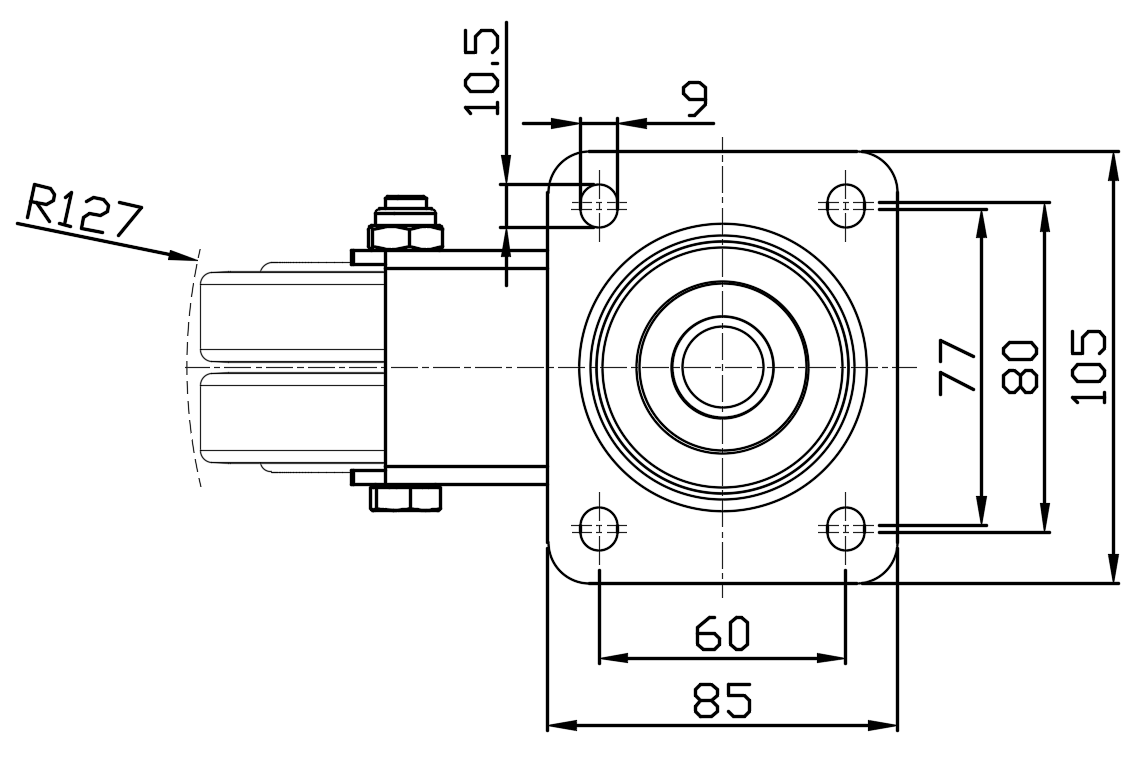

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 46.5mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 105 x 85mm　
　　Bolt Hole Spacing 80 x 60mm　
　　Plate Hole 10.5 x 9mm　
　　Offset 77mm　
　　Swivel Interference 254mm　
　　Overall Height 142.5mm　
　　Swivel Radius 127mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 250kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 1000kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 3kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1168 Levelling Caster Series
ZQPU (brown round) Wheel Diameter x Wheel Width 100 x 22 (46.5) mm

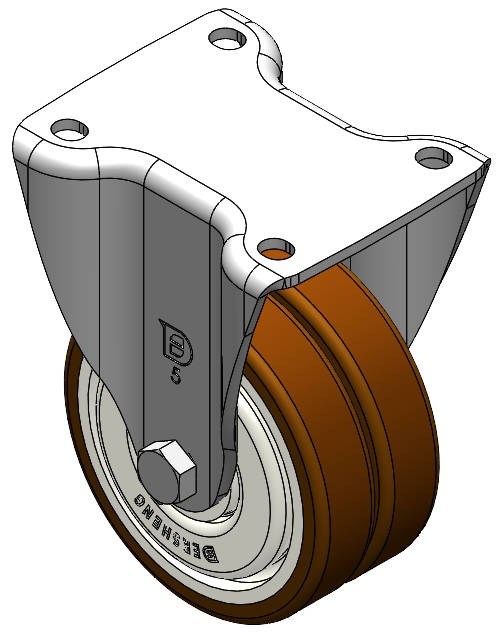

YJ-11680400801013
100 mm 320 Kgs 142.5 mm
Rigid Caster with Stamping Fabricated Caster Fork 44.5 x 30mm (1-3/4" x 1-1/8") Bolt Hole Spacing. Zine-Plated, Mounting Type - Top Plate. Cast Iron Wheel Center with High Quality Polyurethane tread. Brown color, Bearing with Ball Bearing.
1168 Levelling Caster Series
ZQPU (brown round) Wheel Diameter x Wheel Width 100 x 22 (46.5) mm

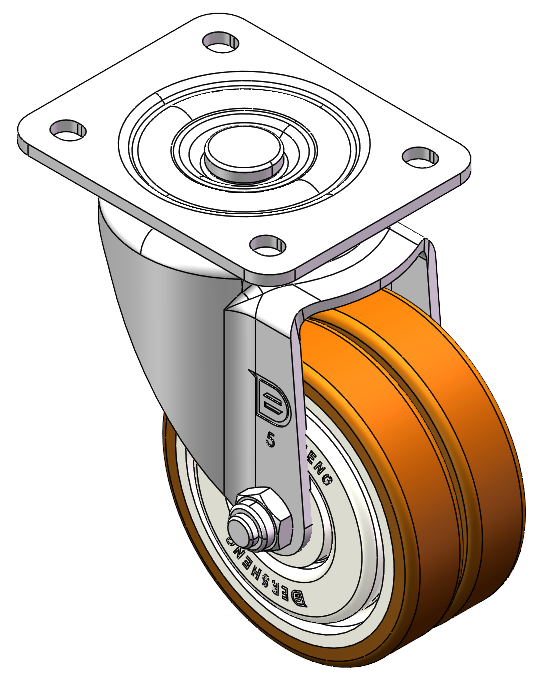

YJ-11680400802053
100 mm 320 Kgs 142.5 mm
Swivel Caster with Riveted Fork and Stamping bracket - European standard holes Zine-Plated, Mounting Type - Top Plate Cast Iron Wheel Center, High Quality Polyurethane tread Brown, Bearing - Ball Bearing.
1168 Levelling Caster Series
ZQPU (brown round) Wheel Diameter x Wheel Width 100 x 22 (46.5) mm

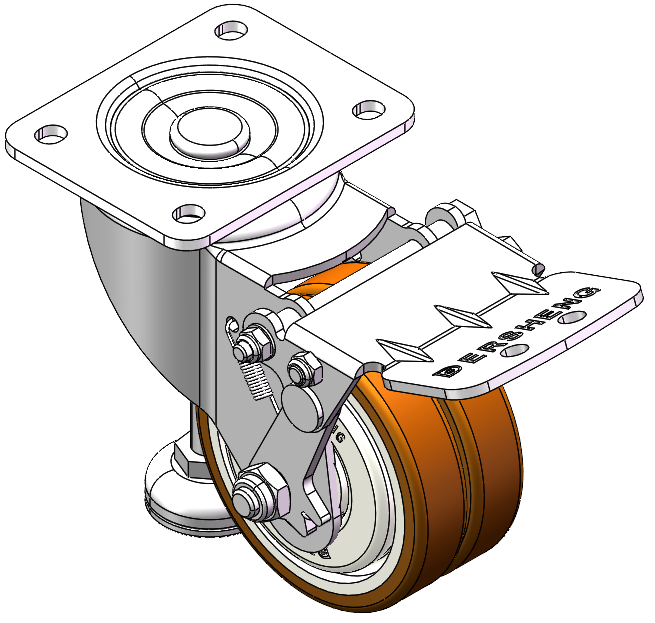

YJ-11680400802013
100 mm 320 Kgs 142.5 mm
Height Adjustable Leveling Caster, Top Plate with Riveted Fork and European standard holes, Long Pedal Zine-Plated, Mounting Type - Top Plate, Height Adjustable Stand Cast Iron Wheel Center with High Quality Polyurethane tread Brown, Bearing with Ball Bearing.
1168 Levelling Caster Series
ZQPU (brown round) Wheel Diameter x Wheel Width 100 x 22 (46.5) mm

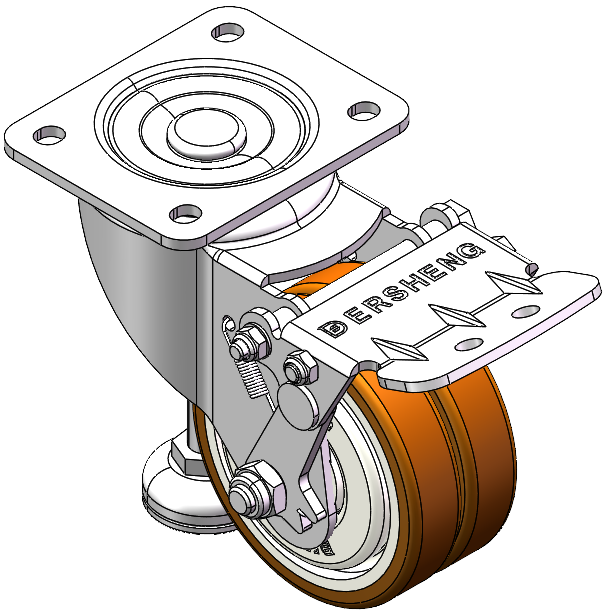

YJ-11680400802023
