King Kong Wheel Diameter × Wheel Width 75 x 45mm

Picture may differ from original product

1109-HD American Mechanical Wheel Series

King Kong Wheel Diameter × Wheel Width 75 x 45mm

TW-4110903002022

Wheel Diameter75mm　3＂

Load Capacity (Dynamic)500kgs　1102lbs

Overall Height107mm　4-1/4＂

Wheel BearingWheels With Ball Bearings

Swivel Casters, Riveted and Stamping Top Plate; Zine-Plated Top Plate, electroplated Top Plate, Mounting Type - Top Plate device; thermoplastic plastic Wheel Center and Wheel Tread; blue Bearing—Ball Bearings.
Wheel surface: thermoplastic
Wheel Center: thermoplastic

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet (Metric) Product Data Sheet (Imperial) 3D Drawing Request

3D drawings are for members only. Please log in to download.

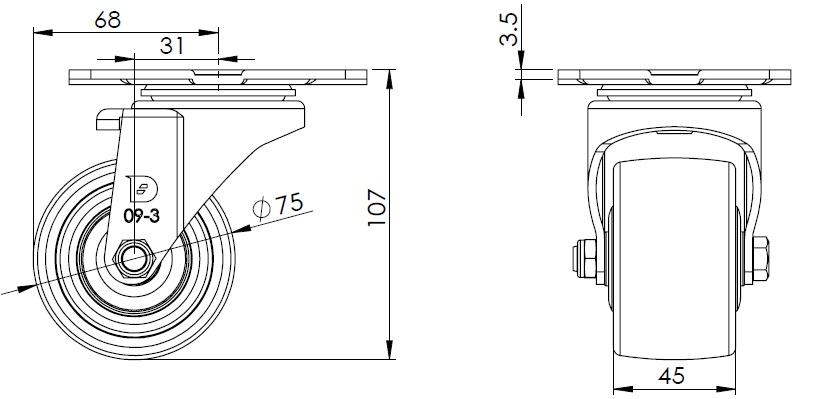

Product Data Sheet

Wheel Diameter: 75mm3＂
Wheel Width: 45mm1-13/16＂
Wheel Bearing: Wheels With Ball Bearings

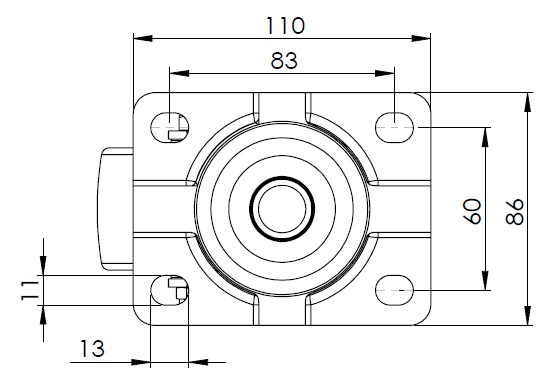

Plate Size: 110 x 86mm4-3/8＂ x 3-7/16＂
Bolt Hole Spacing: 83 x 60mm2-1/4＂x 2-3/8＂
Plate Hole: 13 x 11mm9/16＂ x 3/8＂
Offset: 31mm1-1/4＂
Swivel Interference: 136mm5-7/16＂
Overall Height: 107mm4-1/4＂
Swivel Radius: 68mm2-11/16＂
Hardness Of Tread: 75±5° Shore D
Load Capacity (Dynamic): 500kgs1102lbs
Load Capacity (Static): 750kgs1653lbs
Temperature: -20°C to +80°C-4°F to +176°F
Fork Type: Swivel Caster
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 0.80kgs1.8lbs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.

Performance

Rolling SmoothnessMax. 5 pointsScore: 5

Quiet OperationMax. 5 pointsScore: 2

Floor Surface PreservationMax. 5 pointsScore: 2
