King Kong Wheel Diameter × Wheel Width 75 x 45mm

Picture may differ from original product

1109-HD American Mechanical Wheel Series

King Kong Wheel Diameter × Wheel Width 75 x 45mm

TW-4110903004017

Wheel Diameter75mm　3＂

Load Capacity (Dynamic)500kgs　1102lbs

Overall Height106mm　4-1/4＂ x .

Wheel BearingWheels With Ball Bearings

Equipped with side (wheel) brakes and a With locking system for the Casters. Riveted and Stamping Top Plate. Zine-Plated Top Plate, electroplated Top Plate, Mounting Type - Top Plate device. Reinforced Polypropylene and Wheel Tread. Blue Bearing—Ball Bearings.
Wheel surface: thermoplastic
Wheel Center: thermoplastic

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet (Metric) Product Data Sheet (Imperial) 3D Drawing Request

3D drawings are for members only. Please log in to download.

Product Data Sheet

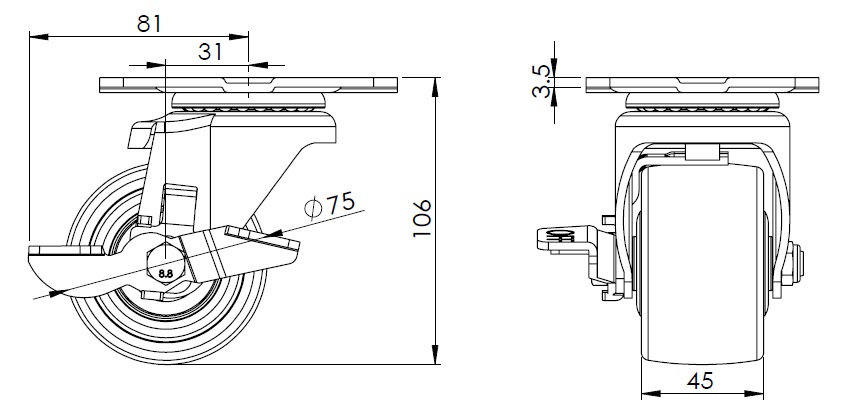

Wheel Diameter: 75mm3＂
Wheel Width: 45mm1-13/16＂
Wheel Bearing: Wheels With Ball Bearings

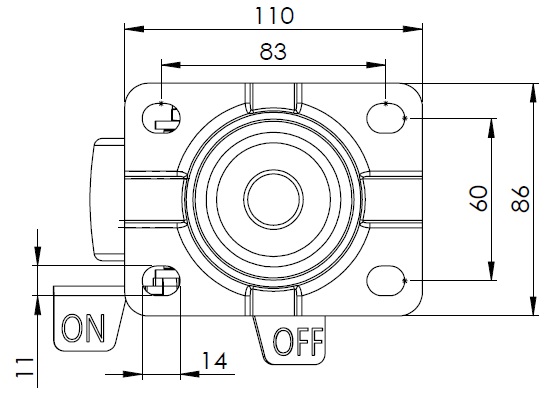

Plate Size: 110 x 86mm4-3/8＂ x 3-7/16＂
Bolt Hole Spacing: 83 x 60mm2-1/4＂x 2-3/8＂
Plate Hole: 14 x 11mm9/16＂ x 3/8＂
Offset: 31mm1-1/4＂
Swivel Interference: 162mm6-1/2＂
Overall Height: 106mm4-1/4＂ x .
Swivel Radius: 81mm3-1/4＂
Hardness Of Tread: 75±5° Shore D
Load Capacity (Dynamic): 500kgs1102lbs
Load Capacity (Static): 750kgs1653lbs
Temperature: -20°C to +80°C-4°F to +176°F
Fork Type: Swivel Caster With Side Brake
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 0.85kgs1.9lbs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.

Performance

Rolling SmoothnessMax. 5 pointsScore: 5

Quiet OperationMax. 5 pointsScore: 2

Floor Surface PreservationMax. 5 pointsScore: 2
