King Kong Wheel Diameter × Wheel Width 75 x 45mm

Picture may differ from original product

1109 Medium Duty/Low Profile Business Machine Caster Series

King Kong Wheel Diameter × Wheel Width 75 x 45mm

TW-4110903004028

Wheel Diameter75mm　3＂

Load Capacity (Dynamic)400kgs　882lbs

Overall Height107mm　4-1/4＂

Wheel BearingWheels With Ball Bearings

Castors with Side Brakes and Locking system. Top Plate Riveted Stamping Fork
Surface Zine-Plated, Mounting Type - Top Plate
Reinforced Polypropylene and Wheel Tread
Bearing - Ball Bearing.
Wheel tread: Thermoplastic
Wheel Center: Thermoplastic

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet (Metric) Product Data Sheet (Imperial) 3D Drawing Request

3D drawings are for members only. Please log in to download.

Product Data Sheet

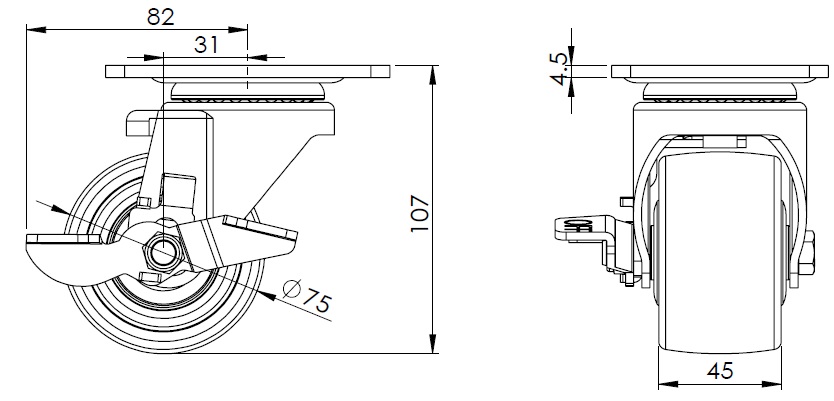

Wheel Diameter: 75mm3＂
Wheel Width: 45mm1-13/16＂
Wheel Bearing: Wheels With Ball Bearings

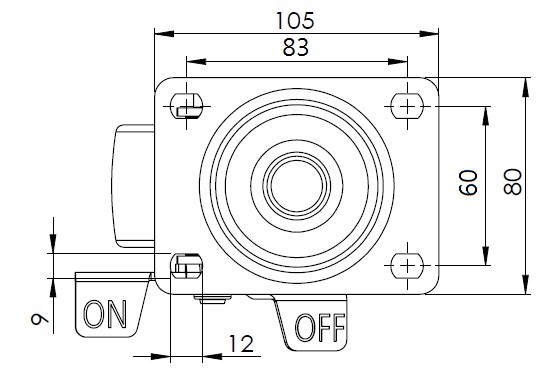

Plate Size: 105 x 80mm4-3/16＂ x 3-3/16＂
Bolt Hole Spacing: 83 x 60mm2-1/4＂x 2-3/8＂
Plate Hole: 12 x 9mm1/2＂ x 23/64＂
Offset: 31mm1-1/4＂
Swivel Interference: 164mm6-1/2＂
Overall Height: 107mm4-1/4＂
Swivel Radius: 82mm3-5/16＂
Hardness Of Tread: 75±5° Shore D
Load Capacity (Dynamic): 400kgs882lbs
Load Capacity (Static): 600kgs1323lbs
Temperature: -20°C to +80°C-4°F to +176°F
Fork Type: Swivel Caster With Side Brake
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 0.85kgs1.9lbs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.

Performance

Rolling SmoothnessMax. 5 pointsScore: 5

Quiet OperationMax. 5 pointsScore: 2

Floor Surface PreservationMax. 5 pointsScore: 2
