    Product Data Sheet

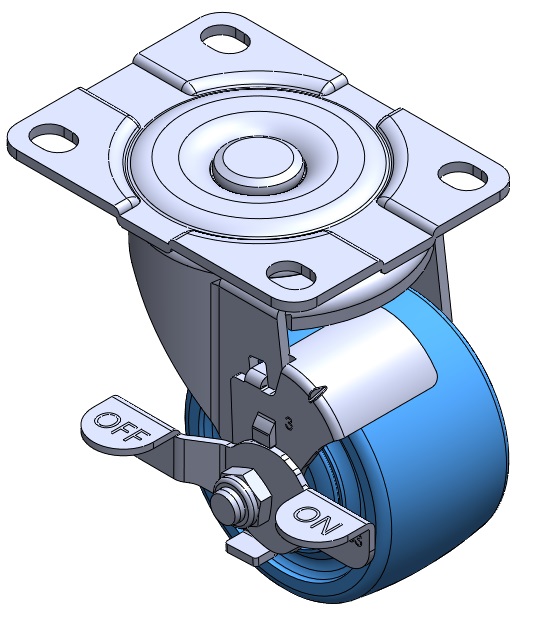

1109 Medium Duty/Low Profile Business Machine Caster Series
　　King Kong Wheel Diameter × Wheel Width 75 x 45mm
　　EAN
　　TW-4110903004020 　　　
　　　　　 　　　
Castors with Side Brakes and Locking system. Top Plate Riveted Stamping Fork Surface Zine-Plated, Mounting Type - Top Plate Reinforced Polypropylene and Wheel Tread Bearing - Ball Bearing.
　　Wheel tread: Thermoplastic
　　Wheel Center: Thermoplastic

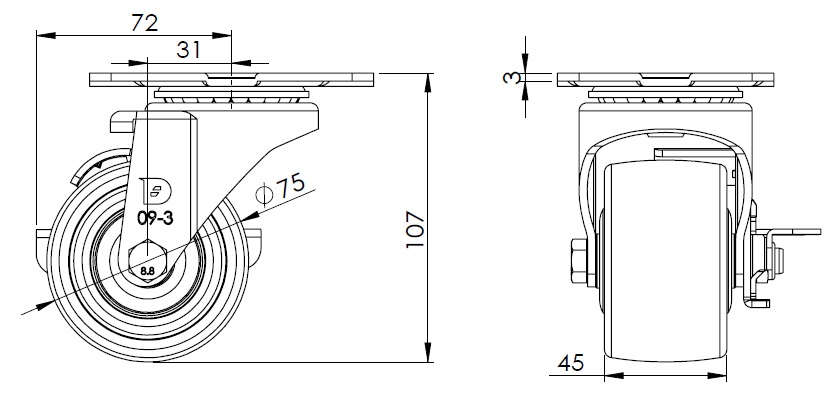

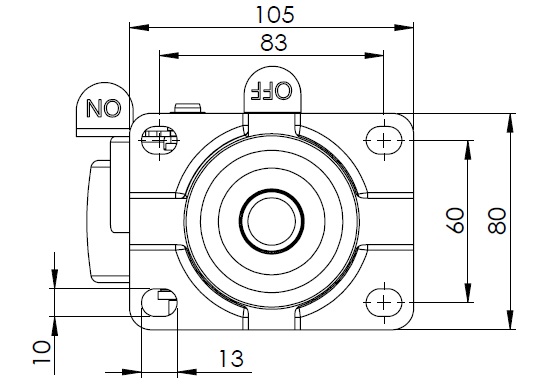

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　

　　Wheel Width 45mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 105 x 80mm　
　　Bolt Hole Spacing 83 x 60mm　
　　Plate Hole 13 x 10mm　
　　Offset 31mm　
　　Swivel Interference 144mm　
　　Overall Height 107mm　
　　Swivel Radius 72mm　
　　Hardness Of Tread 75±5° Shore D　
　　Load Capacity (Dynamic) 400kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ○ ○ ○

　　Floor Surface Preservation  ● ● ○ ○ ○
　　Load Capacity (Static) 600kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Swivel Caster With Side Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.85kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品

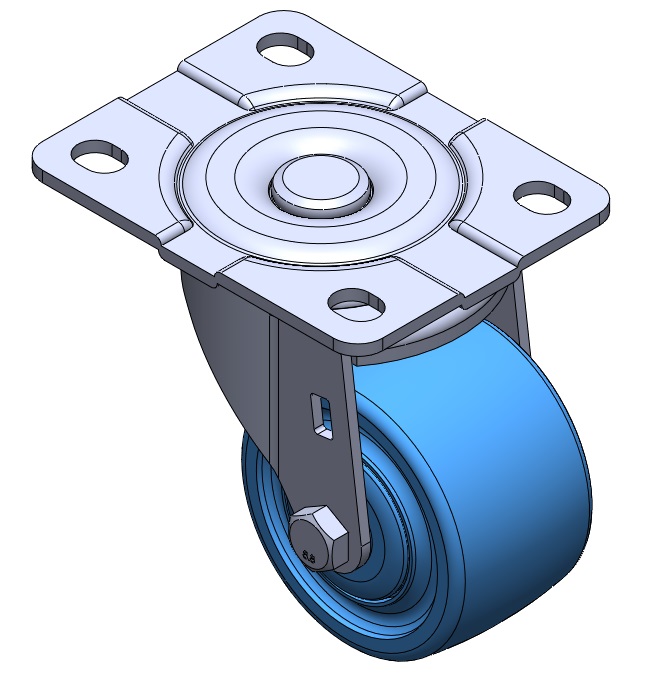

1109 Medium Duty/Low Profile Business Machine Caster Series
King Kong Wheel Diameter × Wheel Width 75 x 45mm
TW-4110903002022
75 mm 400 Kgs 107 mm
Swivel Casters, Top Plate Riveted Stamping Fork Surface Zine-Plated, Mounting Type - Top Plate Reinforced Polypropylene and Wheel Tread Bearing - Ball Bearing.

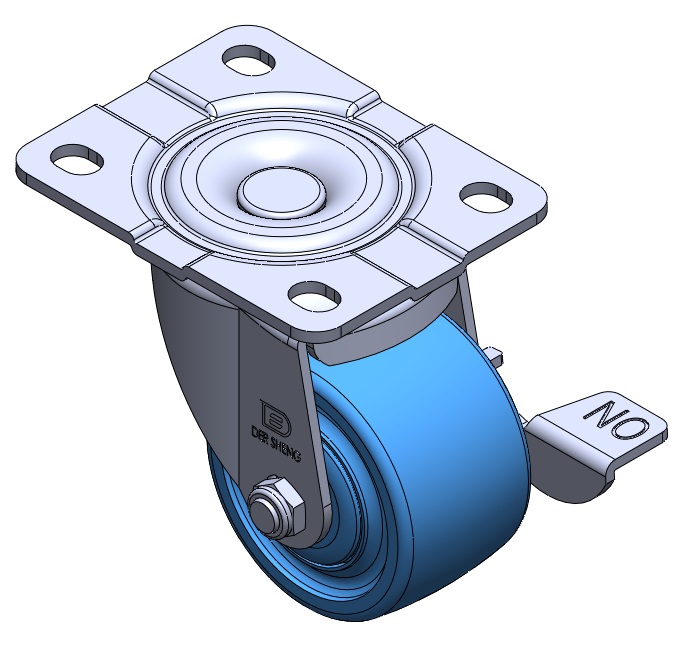

1109 Medium Duty/Low Profile Business Machine Caster Series
King Kong Wheel Diameter × Wheel Width 75 x 45mm
TW-4110903004017
75 mm 400 Kgs 106 mm
Castors with Side Brakes and Locking system. Top Plate Riveted Stamping Fork Surface Zine-Plated, Mounting Type - Top Plate Reinforced Polypropylene and Wheel Tread Bearing - Ball Bearing.

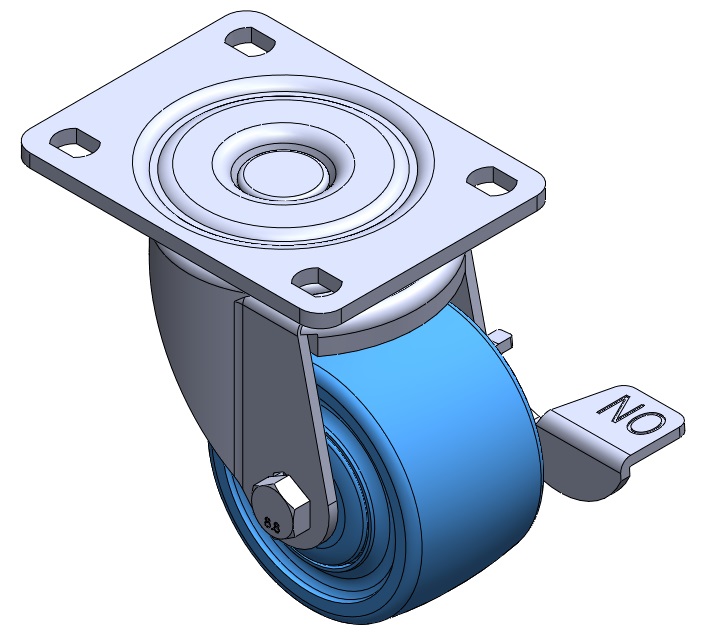

1109 Medium Duty/Low Profile Business Machine Caster Series
