Picture may differ from original product
HPU Series
Wheel Diameter × Wheel Width 200 x 42mm
YJ-12039608180100
Wheel Diameter（D）200mm 8＂
Tread Patterngarbled text E乱码纹E
Load Capacity at 6 km/h510kgs 1124lbs
- Excellent Mechanical Properties and wear resistance
- Excellent resistance to chemicals and corrosion
- Suitable for Forklift Trucks, Electric Stackers, AGVs, and floor scrubbers
- HPU, black, surface machined with random textured E
- Increases grip on the ground, effectively improving anti-slip ability
- Wheel Center: Aluminum core
- Wheel Tread: High-quality polyurethane
Product descriptions are for reference only. The actual product shall prevail.
3D drawings are for members only. Please log in to download.

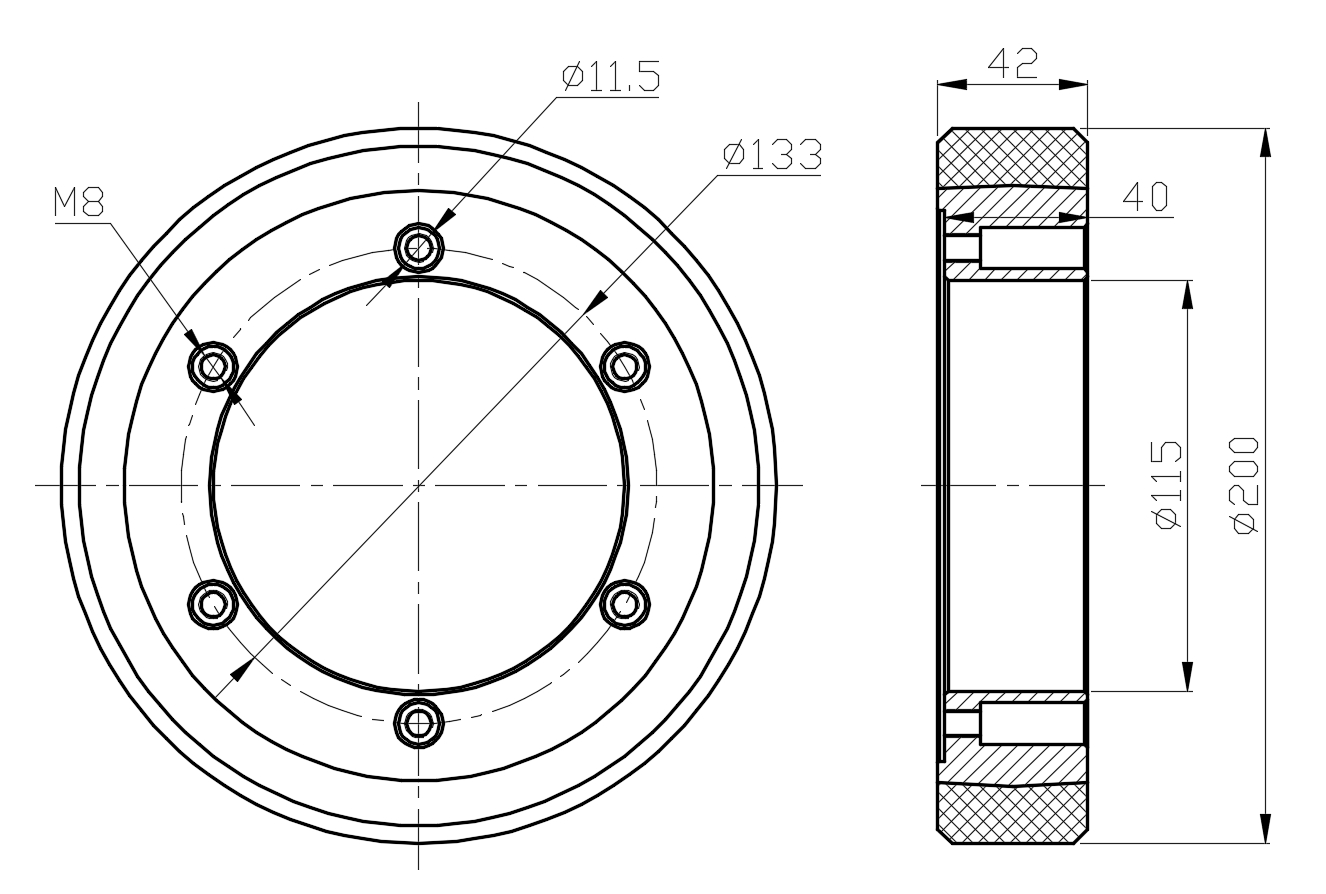

Product Data Sheet
- Wheel Diameter（D）
- 200mm8＂
- Wheel Width（T2）
- 42mm1-11/16＂
- Wheel installation — Hub Lenth (T1)
- 40mm1-5/8＂
- Wheel center-bore diameter (d)
- 115mm4-9/16＂
- Wheel Mounting Bolt Hole PCD Diameter
- 11.5mm1/2＂
- Wheel Mounting Bolt Hole PCD
- 133mm5-1/2＂
- # Of Wheel mounting bolt boles
- 66
- Wheel mounting bolt hole (M)
- 8
- Number of wheel mounting bolt holes
- 6
- Load Capacity (Static)
- 900kgs1984lbs
- Load Capacity at 4 km/h
- 600kgs1323lbs
- Load Capacity at 6 km/h
- 510kgs1124lbs
- Load Capacity at 10 km/h
- 420kgs926lbs
- Load Capacity at 16 km/h
- 240kgs529lbs
- Hardness Of Tread
- 92±5° Shore A
- Temperature
- -20°C to +70°C-4°F to +158°F
- Tread Pattern
- garbled text E乱码纹E
- Wheel centre/ rim
- Aluminum core / black paint
- Non-Marking
- Y
- Conductive
- N/A 10^6/Ω～10^8.5/Ω
- Anti
- N/A
- Weight
- 1.70kgs3.7lbs
- Standard
- ISO22883
* For any deviation between metric and imperial spec, please refer to the metric spec.
Performance
Rolling SmoothnessMax. 5 pointsScore: 5
